48042 | VIAIR 480C Dual Performance Value Pack Air Compressor 12 Volt In Stealth Black | 200 PSI, Max Air Tank Size 10 Gallon
480C Dual Performance Value Pack Air Compressor 12 Volt In Stealth Black | 200 PSI, Max Air Tank Size 10 Gallon | Universal - Check Specification Before Ordering
48042
Pricing:
$629.93
Description
Providing 200PSI and a 100% duty cycle, VIAIR’s 480C Dual Performance Value Pack is an ideal air source solution for any air suspension kit, industrial applications, air horns, or off-road pneumatic needs.

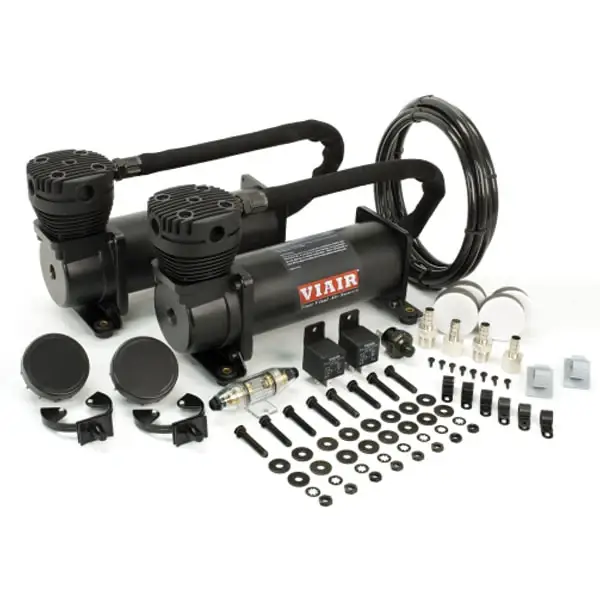

Each Dual Pack includes two VIAIR 480C air compressors, two heavy duty 40-amp relays, a 165 PSI cut-on, 200 PSI cut-off pressure switch, and remote mount filter assemblies with mounting hardware.
Please Note:
- Use thread sealant for proper installation.
- Thread tape is not recommended.
- Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
- Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
SPECIFICATIONS
- PN: 48012, 48032, 48042
- CFM: 3.53 @ 0 PSI
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallon
- Combined Max. Amp Draw: 46-Amps
- Ingress Protection Rating: IP67
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
- Dimensions: 10.87″L x 4.2″W x 6.75″H (Each Unit)
- Net Weight: 22.10 lbs.
FEATURES:
- (2) 480C (Pewter, Chrome, or Stealth Black) Air Compressors
w/Thermal Overload Protectors - (2) Air Filter Assemblies
- (2) Remote Mount Brackets
- (2) Sets of Remote Mount Fittings
- (2) Sets of Spare Air Filter Elements
- (2) Leader Hose Clips
- (6) Air Line Clips with Included Hardware
- (8) Sets of Nuts, Bolts, Washers and Lock Washers
- (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
- (2) 40-Amp Relays
- (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
- (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
- Air Line (For Remote Mount Filter Installation)
FILL RATES
12-VOLT COMPRESSOR
- 2.5 GALLON TANK FILL RATE
- 0 to 200 PSI 2 min. 22 sec. (± 10 sec.)
- 165 to 200 PSI 38 sec. (± 05 sec.)
- 5.0 GALLON TANK FILL RATE
- 0 to 200 PSI 5 min. 02 sec. (± 10 sec.)
- 165 to 200 PSI 1 min. 25 sec. (± 05 sec.)
- 10.0 GALLON TANK FILL RATE
- 0 to 200 PSI 10 min. 30 sec. (± 15 sec.)\
- 165 to 200 PSI 3 min. 10 sec. (± 10 sec.)
Performance
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 3.53 | 25 | 0 | 100.0 | 25 |
10 | 3.10 | 28 | 1.0 | 86.5 | 29 |
20 | 3.00 | 31 | 2.0 | 81.4 | 33 |
30 | 2.86 | 33 | 3.0 | 76.8 | 35 |
40 | 2.75 | 35 | 4.0 | 72.7 | 37 |
50 | 2.64 | 36 | 5.0 | 67.6 | 39 |
60 | 2.55 | 37 | 6.0 | 61.2 | 41 |
70 | 2.43 | 39 | 7.0 | 55.3 | 42 |
80 | 2.26 | 40 | 8.0 | 50.1 | 44 |
90 | 2.12 | 41 | 9.0 | 45.0 | 44 |
100 | 1.97 | 42 | 10.0 | 40.6 | 43 |
110 | 1.84 | 43 | 11.0 | 36.8 | 41 |
120 | 1.72 | 44 | 12.0 | 32.4 | 40 |
130 | 1.59 | 44 | 13.0 | 28.0 | 37 |
140 | 1.49 | 43 | 14.0 | 24.8 | 36 |
150 | 1.38 | 42 | |||
160 | 1.29 | 41 | |||
170 | 1.18 | 40 | |||
180 | 1.09 | 39 | |||
190 | 0.97 | 37 | |||
200 | 0.90 | 36 |
Application List
Universal - Check Specification Before Ordering
