10000 | VIAIR Ultra Light Duty Onboard Air Compressor System 12 Volt | 105 PSI, Includes 1.0 Gallon Air Tank
Ultra Light Duty Onboard Air Compressor System 12 Volt | 105 PSI, Includes 1.0 Gallon Air Tank | Universal - Check Specification Before Ordering
10000
Pricing:
$244.93
Description
The Ultra-Light Duty OBA is ideal for light duty pneumatic tasks such as air horns, air lockers and more.
While not intended for tire inflation, this system provides a reliable and cost effective air source package.
Please Note:
- Use thread sealant for proper installation.
- Thread tape is not recommended.
- Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
- Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
SPECIFICATIONS
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 10% @ 100 PSI
- Max. Working Pressure: 105 PSI
- Max. Amp Draw: 13-Amps
- Ingress Protection Rating: IP54
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
FEATURES:

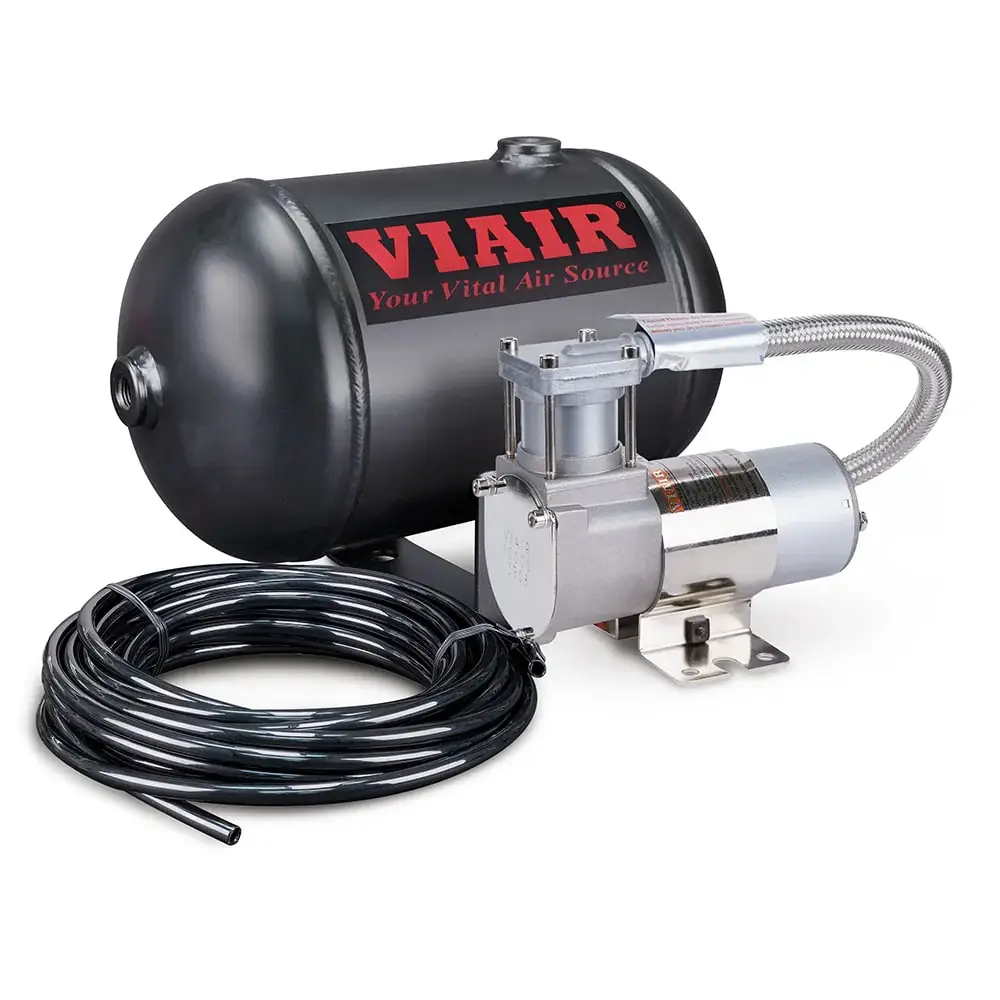

- 1.0 Gallon VIAIR Air Tank
- 98C VIAIR Air Compressor

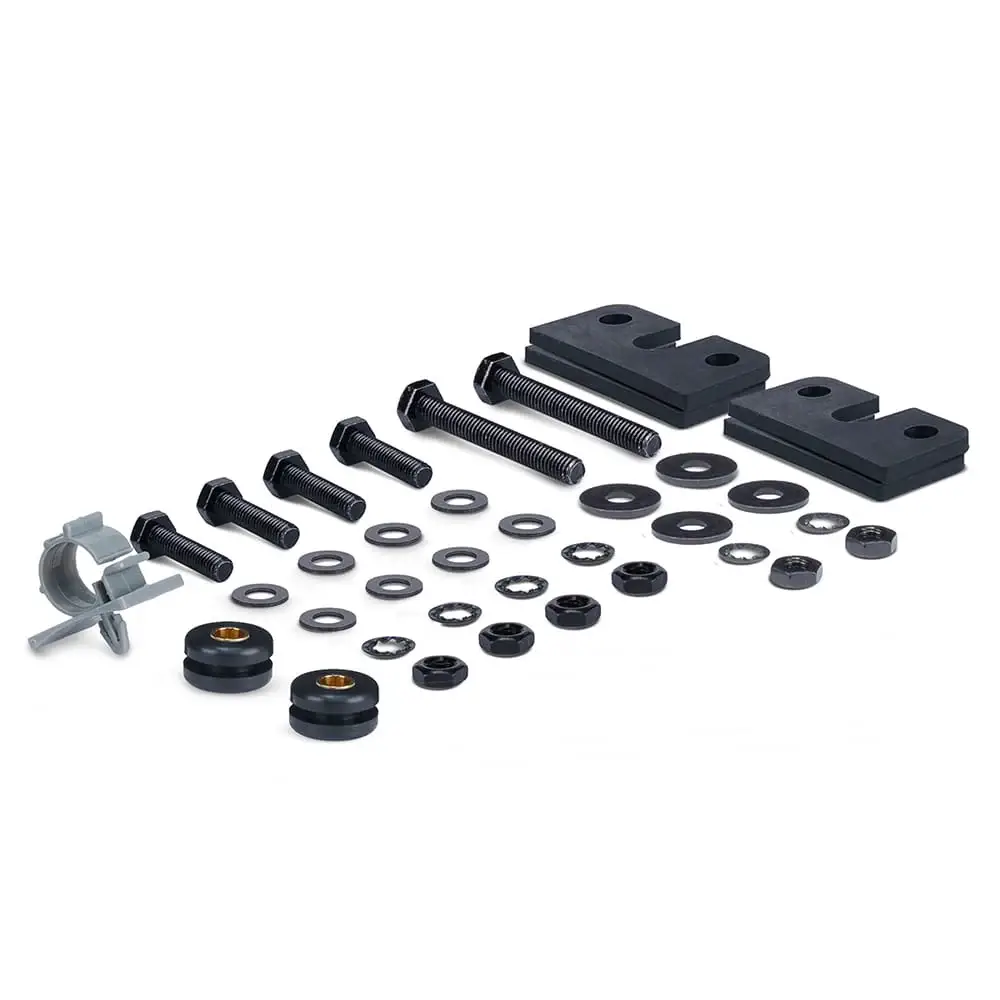

- Omega Bracket with Mounting Hardware

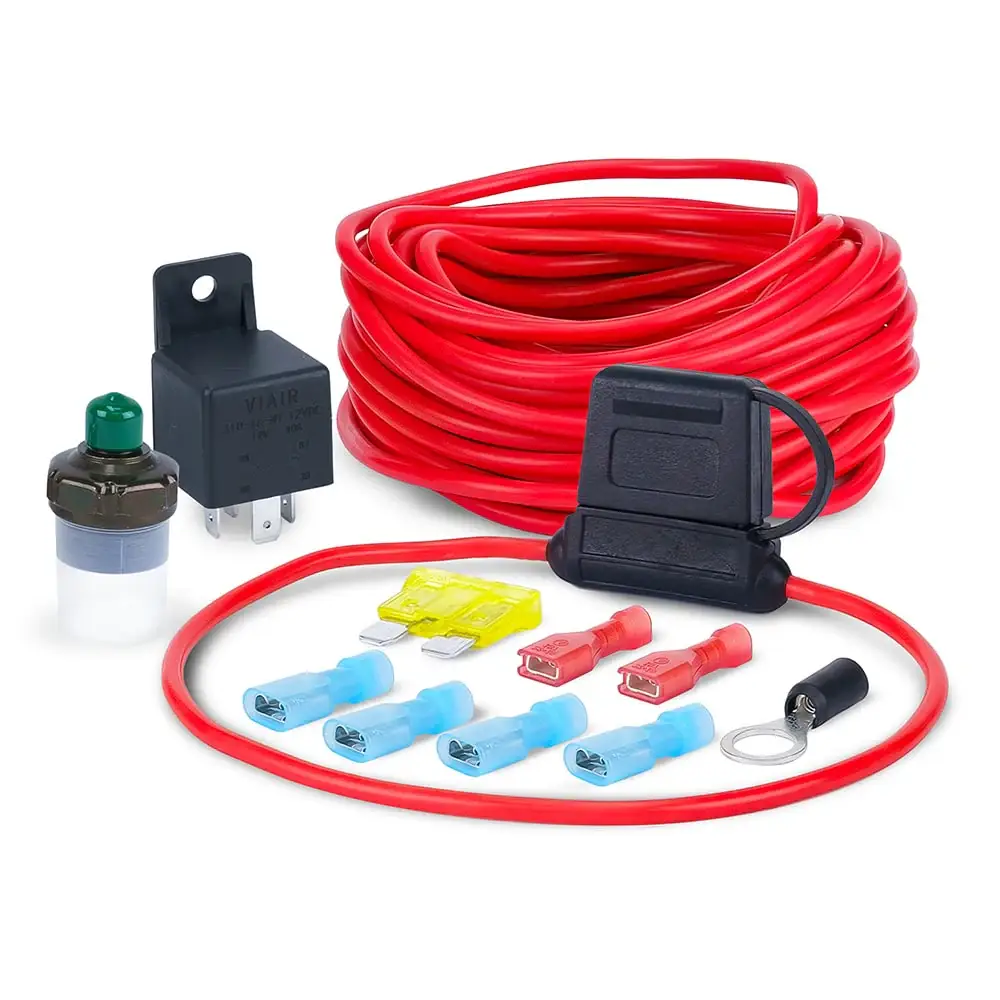

- Pressure Switch (85 PSI on, 105 PSI off)
- 40-Amp Relay
- 145 PSI Safety Valve
- T-Fitting: 1/4” (M) x 1/4″ (F) x 1/8” (F)
- T-Fitting: 1/4” (M) x 1/4″ (F) x 1/4” (F)
- 1/4” Drain Cock
- 1/4” Compression Fitting
- 1/4” Plug (M)
- (2) 1/4” (M) NPT to 1/8” (F) BSP
- 20ft. 16 Gauge Wire with Inline Fuse Holder
- Accessory Airline
- Electrical Connections
FILL RATES
12-VOLT COMPRESSOR
- 1.0 GALLON TANK FILL RATE
- 0 to 105 PSI 1 min. 40 sec. (± 10 sec.)
- 85 to 105 PSI 30 sec. (± 05 sec.)
Performance
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 1.53 | 7 | 0 | 43.5 | 7 |
10 | 1.00 | 9 | 1.0 | 28.0 | 9 |
20 | 0.95 | 10 | 2.0 | 25.5 | 11 |
30 | 0.90 | 11 | 3.0 | 22.7 | 11 |
40 | 0.83 | 11 | 4.0 | 20.7 | 12 |
50 | 0.77 | 12 | 5.0 | 18.3 | 12 |
60 | 0.72 | 12 | 6.0 | 16.3 | 12 |
70 | 0.65 | 12 | 7.0 | 13.7 | 12 |
80 | 0.60 | 12 | 8.0 | 11.7 | 12 |
90 | 0.54 | 12 | 9.0 | 10.0 | 11 |
100 | 0.48 | 12 |
Application List
Universal - Check Specification Before Ordering
