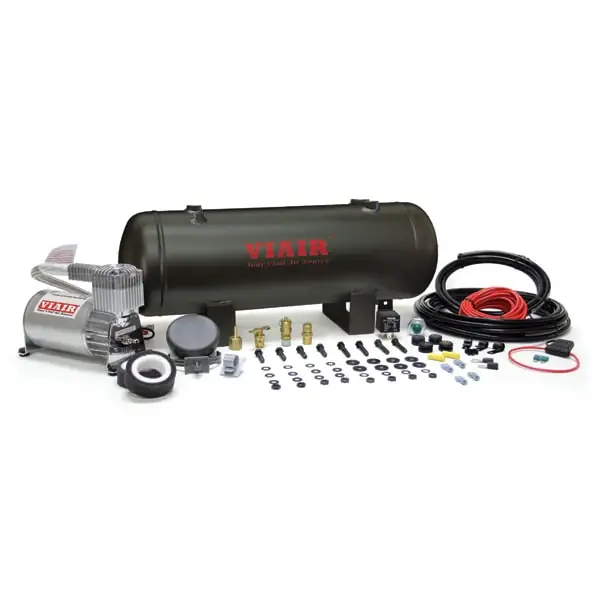

10002 | VIAIR Quarter Duty Onboard Air Compressor System 12 Volt | 120 PSI, Includes 2.0 Gallon Air Tank

Quarter Duty Cycle Onboard Air System is a smaller, 120 psi onboard air system, suitable for many pneumatic needs, including smaller inflation tasks (not including the inflation of automotive tires), air horns and more.

The 25% Duty Cycle Onboard Air System will provide enough service time to operate for about 10 minutes of continued use, providing you give the system 30 minutes to cool down afterwards.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• PN: 10002
• CFM: 2.03 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 25% @ 100 PSI
• Max. Working Pressure: 120 PSI
• Max. Amp Draw: 18-Amps
• Ingress Protection Rating: IP54
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F

FEATURES:

• 2.0 Gallon VIAIR Air Tank
• 275C VIAIR Air Compressor w/Thermal Overload Protector
• Pressure Switch (90 PSI on, 120 PSI off)
• 40-Amp Relay
• 1/4” NPT 145 PSI Safety Valve
• 1/4” Drain Cock
• 1/4” Compression Fitting
• 20ft. 16 Gauge Wire with Inline Fuse Holder
• Accessory Airline
• Electrical Connections

FILL RATES

12-VOLT COMPRESSOR

• 2.0 GALLON TANK FILL RATE
  • 0 to 120 PSI 2 min. 22 sec. (± 10 sec.)
  • 90 to 120 PSI 46 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
