10005 | VIAIR Heavy Duty Onboard Air Compressor System 12 Volt | 150 PSI, Includes 2.5 Gallon Air Tank

VIAIR’s Heavy Duty Onboard Air System is a pre-packaged compressed air solution that provides a faster 33% duty cycle 400C compressor, 2.5-gallon air tank, and all components needed to install a working system capable of inflating tires right out of the box.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
• Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.

SPECIFICATIONS

• PN: 10005
• CFM: 2.62 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 30-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F

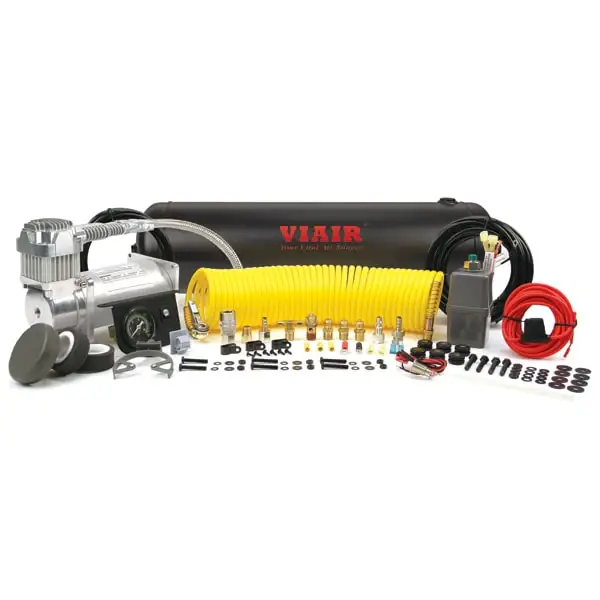

FEATURES:

• 2.5 Gallon VIAIR Air Tank
• 400C VIAIR Compressor w/Thermal Overload Protector
• 35ft. Coil Hose with Tire Chuck
• 1/4” Quick Connect Stud (F)
• 1/4” Quick Connect Coupler (F)
• Dash Panel Gauge with ON/OFF Switch
• Pressure Switch with Relay (110 PSI on, 145 PSI off)
• Reducer: 1/8” (F) to 1/4” (M)
• 1/4” 175 PSI Safety Valve
• 1/4” Drain Cock
• (3) 1/4” Compression Fittings
• 20ft. 12-Gauge Wire with Inline Fuse Holder
• 4” Strip of Continuous Grommet Material
• Accessory Airline
• Electrical Connections

FILL RATES

TIRE FILL RATE

• 33″ X 12.5″ FILL RATE
  • 0 to 30 PSI 3 min. 24 sec. (± 10 sec.)
  • 15 to 30PSI 52 sec. (± 05 sec.)
• 35″ X 12.5″ FILL RATE
  • 0 to 30 PSI 4 min. 47 sec. (± 15 sec.)
  • 15 to 30 PSI 1 min. 41 sec. (± 10 sec.)
• RV TIRES 275/80R22.5 FILL RATE
  • 80 to 90 PSI 30 sec. (± 05 sec.)
  • 90 to 100 PSI 3 min. 50 sec. (± 10 sec.)
  • 110 to 130 PSI 4 min. 37 sec. (± 15 sec.)

TANK FILL RATE

• 2.5 GALLON TANK FILL RATE
  • 0 to 145 PSI 2 min. 20 sec. (± 10 sec.)
  • 110 to 145 PSI 1 min. 48 sec. (± 03 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
