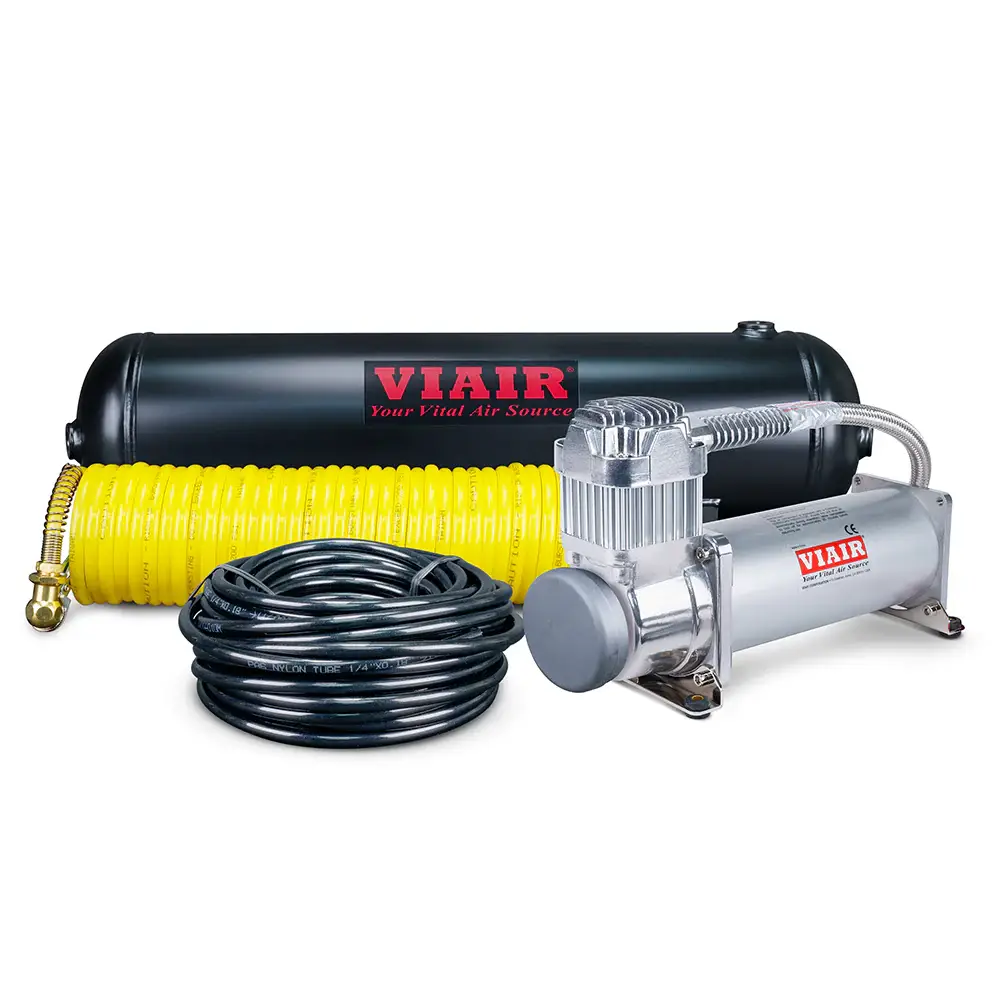

10007 | VIAIR Constant Duty Onboard Air Compressor System 12 Volt | 150 PSI, Includes 2.5 Gallon Air Tank

Constant Duty Onboard Air Compressor System 12 Volt | 150 PSI, Includes 2.5 Gallon Air Tank | Universal - Check Specification Before Ordering

10007
Pricing: $699.93
Qty:
Free Ground Shipping | Exclusions Apply*

Description

VIAIR’s Constant Duty Onboard Air System is a pre-packaged compressed air solution that provides a 100% duty cycle compressors, a 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires.

Please Note:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
  • Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.

SPECIFICATIONS

  • PN: 10002
  • CFM: 1.80 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Amp Draw: 23-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F

FEATURES:

  • 2.5 Gallon VIAIR Air Tank
  • 450C VIAIR Compressor w/Thermal Overload Protector
  • 35ft. Coil Hose with Tire Chuck
  • Dash Panel Gauge with ON/OFF Switch
  • Pressure Switch with Relay (110 PSI on, 145 PSI off)
  • Reducer: 1/8” (F) to 1/4” (M)
  • 1/4” Quick Connect Stud (F)
  • 1/4” Quick Connect Coupler (F)
  • 1/4” 175 PSI Safety Valve
  • 1/4” Drain Cock
  • (3) 1/4” Compression Fittings
  • 20ft. 12-Gauge Wire with Inline Fuse Holder
  • 4” Strip of Continuous Grommet Material
  • Accessory Airline
  • Electrical Connections

FILL RATES

TIRE FILL RATE

  • 35″ X 12.5″ FILL RATE
    • 0 to 30 PSI 3 min. 30 sec. (± 15 sec.)
    • 15 to 30 PSI 1 min. 34 sec. (± 10 sec.)
  • 37″ X 12.5″ FILL RATE
    • 0 to 30 PSI 5 min. 21 sec. (± 15 sec.)
    • 15 to 30 PSI 1 min. 51 sec. (± 10 sec.)
  • RV TIRES 275/80R22.5 FILL RATE
    • 80 to 90 PSI 49 sec. (± 05 sec.)
    • 90 to 110 PSI 5 min. 07 sec. (± 10 sec.)
    • 110 to 130 PSI 6 min. 19 sec. (± 15 sec.)

TANK FILL RATE

  • 2.5 GALLON TANK FILL RATE
    • 0 to 145 PSI 3 min. 02 sec. (± 10 sec.)
    • 110 to 145 PSI 1 min. 59 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.80 12 0 51.0 12
10 1.75 14 1.0 47.6 15
20 1.60 16 2.0 43.3 17
30 1.52 17 3.0 38.2 18
40 1.39 18 4.0 34.0 19
50 1.27 19 5.0 30.5 20
60 1.18 19 6.0 28.1 21
70 1.09 20 7.0 26.4 22
80 1.04 20 8.0 25.0 23
90 0.97 21 9.0 23.0 22
100 0.94 22 10.0 21.0 21
110 0.90 23
120 0.86 23
130 0.81 22
140 0.76 21
150 0.72 20



Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 22.7 lbs.
  • W10.0000” x H7.5000” x L23.5000”
