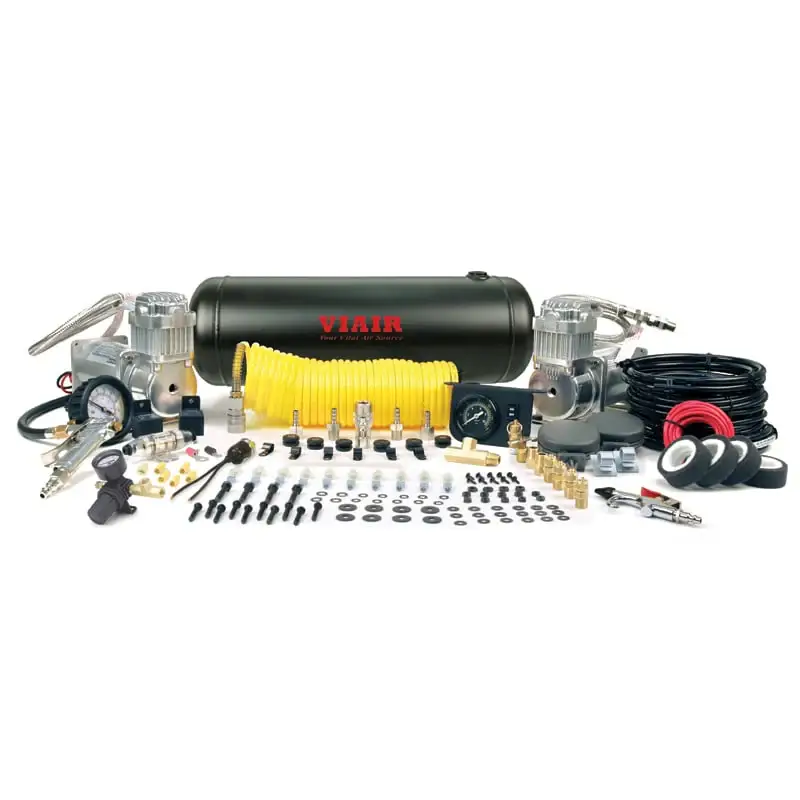

10008 | VIAIR Super Heavy Duty Onboard Air Compressor System 12 Volt | 150 PSI, Includes 2.0 Gallon Air Tank

VIAIR’s Super Duty Onboard Air System is a pre-packaged compressed air solution that provides two fast 325C, 33% duty cycle compressors, 2.0 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
• Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.

SPECIFICATIONS

• PN: 10008
• CFM: 3.21 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 38-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F

FEATURES:

• 2.0 Gallon VIAIR Air Tank
• (2) 325C VIAIR Compressors w/Thermal Overload Protectors
• (2) Thermal Overload Protectors
• 30ft. Coil Hose with Quick Connects
• Tire Inflation Gun with 160 PSI Gauge
• Dash Panel Gauge with ON/OFF Switch
• 0-220 PSI Pressure Regulator
• Blow Gun Air Tool
• Sealed Pressure Switch (110 PSI on, 145 PSI off)
• (2) 40-Amp Relays
• (1) T-Fitting (1/4” (M) x 1/4″ (F) x 1/8” (F))
• (1) T-Fitting (1/4” (M) x 1/4″ (F) x 1/4” (F))
• 1/4” Quick Connect Stud (F)
• 1/4” Quick Connect Coupler (F)
• 1/4” 175 PSI Safety Valve
• 1/4” Drain Cock
• (2) 1/8” BSP to 1/4” NPT
• (4) 1/4” Compression Fittings
• 20ft. 12-Gauge Wire with Inline Fuse Holder
• 4” Strip of Continuous Grommet Material
• Accessory Airline
• Electrical Connections

FILL RATES

TIRE FILL RATE

• 33″ x 12.5″ FILL RATE
  • 0 to 30 PSI 3 min. 40 sec. (± 10 sec.)
  • 15 to 30 PSI 1 min. 50 sec. (± 05 sec.)
• 35″ x 12.5″ FILL RATE
  • 0 to 30 PSI 4 min. 36 sec. (± 10 sec.)
  • 15 to 30 PSI 2 min. 20 sec. (± 05 sec.

TANK FILL RATE

• 2.5 GALLON TANK FILL RATE
  • 0 to 145 PSI 1 min. 26 sec. (± 05 sec.)
  • 110 to 145 PSI 25 sec. (± 03 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
