20003 | VIAIR 120 PSI Air Source Compressor Kit 12 Volt | Includes 1.5 Gallon Air Tank

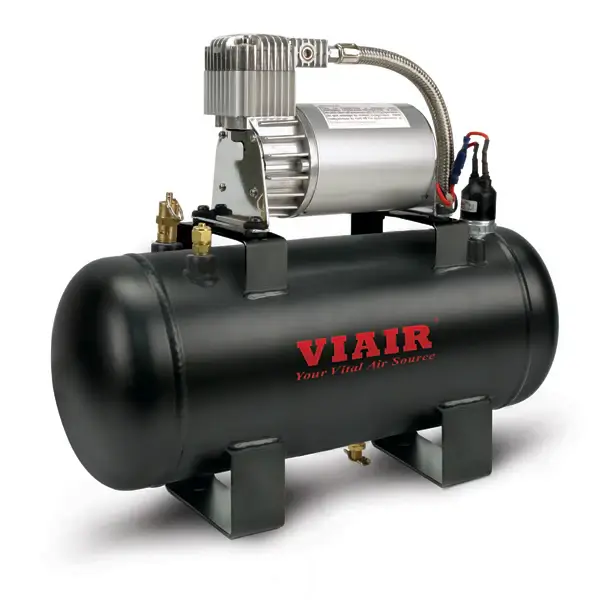

120 PSI Air Source Kits come with a low amp-draw, 25% duty cycle, 275C VIAIR compressor mounted on a 150 PSI-rated 1.5 gallon air tank with 5 ports.

120 PSI Air Source kits come with a pre-wired 90 PSI on / 120 PSI off pressure switch. The 120 PSI Air Source Kit comes complete with a 1/4” NPT brass drain cock, 1/4” NPT ASME coded and certified safety valve, 1/2” NPT port compression fitting for 3/8” (I.D.) air line pre-installed.

To use, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
• Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.

SPECIFICATIONS

• PN: 20003
• CFM: 2.03 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 25% @ 100 PSI
• Max. Working Pressure: 120 PSI
• Max. Amp Draw: 20 Amps
• Ingress Protection Rating: IP54
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 15.2″L x 5.9″W x 12.8″H
• Net Weight: 15.65 lbs.

FEATURES:

• 275C Pewter Air Compressor
• Thermal Overload Protector
• 1.5 Gallon Air Tank
• Pressure Switch (90 PSI On / 120 PSI Off)
• Safety Valve (145 PSI)
• Drain Cock
• Leader Hose with Check Valve

FILL RATES

• 1.5 GALLON TANK FILL RATE
  • 0 to 120 PSI 2 min. 10 sec. (±10 Sec.)
  • 90 to 120 PSI 35 sec. (± 5 Sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
