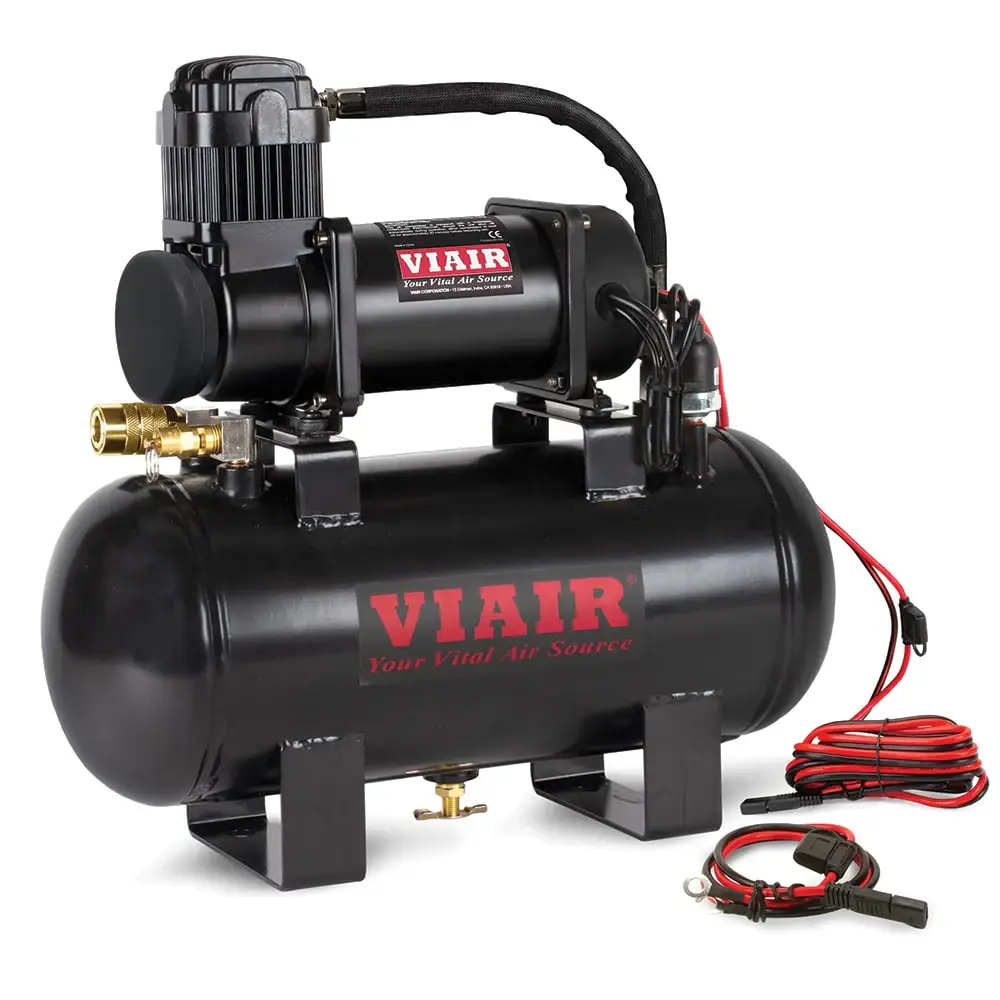

20004 | VIAIR 120 PSI Plug N Play Air Source Compressor Kit 12 Volt | Includes 1.5 Gallon Air Tank

Our 120 PSI On Demand Air System is a Plug N Play solution for any enthusiast who enjoys fast tire inflation and performs multiple pneumatic tasks on the go.

Features a 1.5 Gallon tank, pre-wired 120 PSI pressure switch, 1/4″ NPT brass drain cock, 1/4″ NPT ASME Coded and certified safety valve and 1/4″ quick connect coupler pre-installed.

The Kit has an onboard ON/OFF switch and can be easily installed in the vehicle using the SAE terminal ring attachments and mounting hardware included.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 25% @ 100 PSI
• Max. Working Pressure: 120 PSI
• Max. Amp Draw: 30-Amps
• Ingress Protection Rating: IP54
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 15.2″L x 5.9″W x 12.8″H
• Net Weight: 15.65 lbs.

FEATURES:

• 1.5-Gallon Air Tank
• 2-Pin SAE Connector Attachment with Terminal Rings
• 40-Amp Inline Fuse Holder
• Mounting Hardware

FILL RATES

TIRE FILL RATE

• 31″X10.5″ FILL RATE
  • 0 to 30 PSI 1 min. 57 sec. (±05 Sec.)
  • 15 to 30 PSI 1 min. 17 sec. (± 05 Sec.)
• 33″X12.5″ FILL RATE
  • 0 to 30 PSI 3 min. 37 sec. (±10 Sec.)
  • 15 to 30 PSI 2 min. 19 sec. (± 05 Sec.)

TANK FILL RATE

• 1.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 59 sec. (±05 Sec.)
  • 85 to 105 PSI 13 sec. (± 03 Sec.)
  • 0 to 120 PSI 1 min. 12 sec. (±05 Sec.)
  • 90 to 120 PSI 19 sec. (± 03 Sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
