20005 | VIAIR 150 PSI Air Source Compressor Kit 12 Volt | Includes 2.0 Gallon Air Tank

150 PSI Air Source Compressor Kit 12 Volt | Includes 2.0 Gallon Air Tank | Universal - Check Specification Before Ordering

20005
Pricing: $370.93
Qty:
Free Ground Shipping | Exclusions Apply*

Description

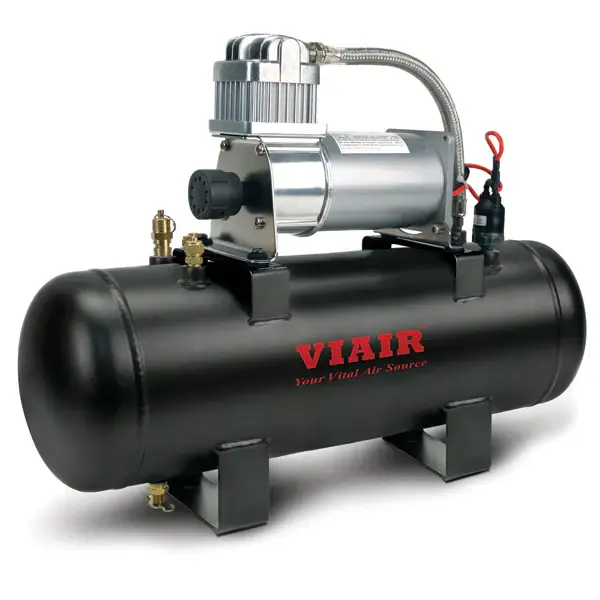

150 PSI Air Source Kits come with a powerful, 30% duty cycle, 280C VIAIR compressor mounted on a 150 PSI-rated 2.0 gallon Matte Black air tank with 5 ports.

All Air Source kits come with a pre-wired pressure switch (P/N 20005 / 110-150 PSI). The 150 PSI Air Source Kit comes complete with a 1/4″ NPT brass drain cock, 1/4″ NPT ASME coded and certified safety valve, 1/2″ NPT port compression fitting for 3/8″ (I.D.) air line pre-installed.

To use, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch..

Please Note:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

  • PN: 20005
  • CFM: 1.59 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 30% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Amp Draw: 20 Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 18.9″L x 5.9″W x 13.7″H
  • Net Weight: 19.75 lbs.

FEATURES:

  • 280C Pewter Air Compressor
  • Thermal Overload Protector
  • 2.0 Gallon Matte Black Air Tank
  • Pressure Switch (110 PSI On / 145 PSI Off)
  • Safety Valve (175 PSI)
  • Drain Cock
  • Leader Hose with Check Valve

FILL RATES

  • 2.0 GALLON TANK FILL RATE
    • 0 to 145 PSI 3 min. 40 sec.(± 10 sec.)
    • 110 to 145 PSI 1 min. 15 sec. (± 05 sec.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.59 10 0 45.0 10
10 1.49 12 1.0 40.2 13
20 1.33 13 2.0 32.1 14
30 1.11 14 3.0 29.0 15
40 1.04 15 4.0 26.4 16
50 0.99 15 5.0 24.2 16
60 0.92 16 6.0 22.0 17
70 0.87 16 7.0 21.0 19
80 0.81 17 8.0 19.4 18
90 0.76 17 9.0 17.5 17
100 0.74 19 10.0 15.3 17
110 0.71 19
120 0.67 18
130 0.62 17
140 0.57 17
150 0.51 17



Application List

Universal - Check Specification Before Ordering
