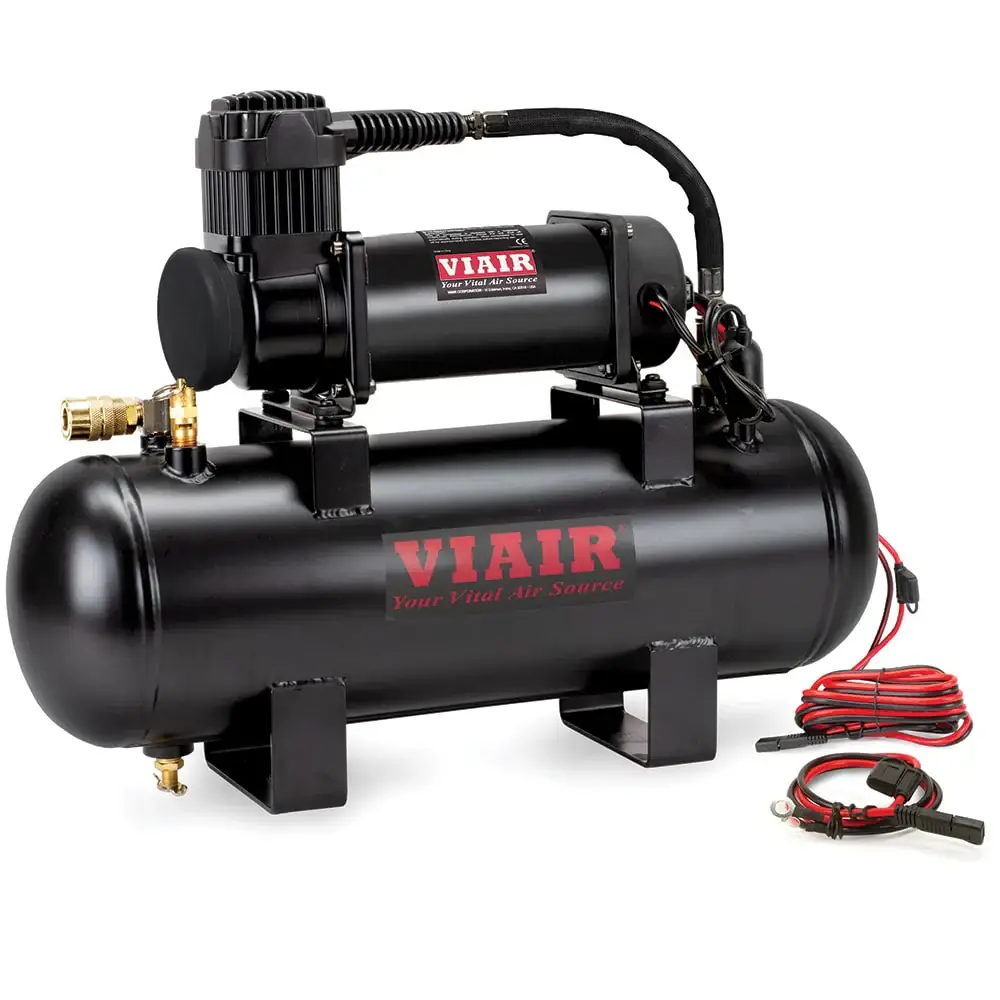

20006 | VIAIR 150 PSI Plug N Play Air Source Compressor Kit 12 Volt | Includes 2.0 Gallon Air Tank

Our 150 PSI On Demand Air System is a Plug N Play solution for any enthusiast who enjoys fast tire inflation and performs multiple pneumatic tasks on the go.

Features a 2.0 Gallon tank, pre-wired 145 PSI pressure switch, 1/4″ NPT brass drain cock, 1/4″ NPT ASME Coded and certified safety valve and 1/4″ quick connect coupler pre-installed.

The Kit has an onboard ON/OFF switch and can be easily installed in the vehicle using the SAE terminal ring attachments and mounting hardware included.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 30-Amps
• Ingress Protection Rating: IP54
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 19″L x 5.9″W x 14.5″H
• Net Weight: 22.10 lbs.
• Power Cord Length: 8 ft.

FEATURES:

• 2.0-Gallon Air Tank
• 2-Pin SAE Connector Attachment with Terminal Rings
• 40-Amp Inline Fuse Holder
• Mounting Hardware

FILL RATES

TIRE FILL RATE

• 31″X10.5″ FILL RATE
  • 0 to 30 PSI 3 min. 00 sec. (± 10 sec.)
  • 15 to 30 PSI 1 min. 35 sec. (± 05 sec.)
• 33″X12.5″ FILL RATE
  • 0 to 30 PSI 4 min. 20 sec. (± 10 sec.)
  • 15 to 30 PSI 2 min. 05 sec. (± 05 sec.)
• 35″X12.5″ FILL RATE
  • 0 to 30 PSI 5 min. 20 sec. (± 15 sec.)
  • 15 to 30 PSI 2 min. 45 sec. (± 05 sec.)

TANK FILL RATE

• 2.0 GALLON TANK FILL RATE
  • 0 to 150 PSI 2 min. 15 sec. (± 10 sec.)
  • 110 to 150 PSI 35 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
