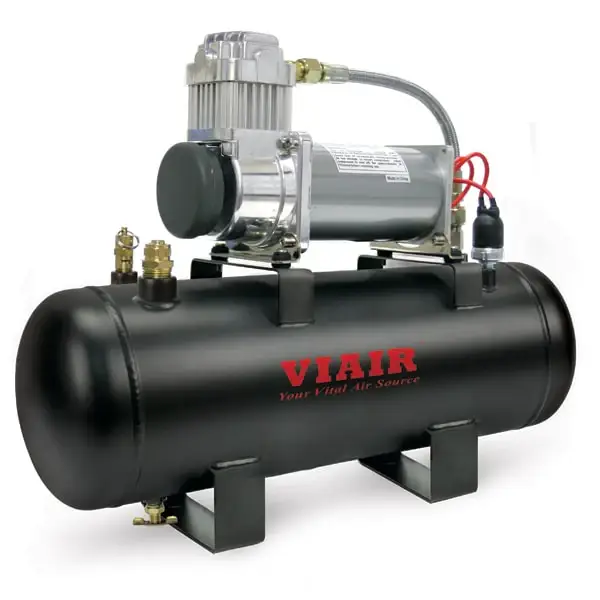

20007 | VIAIR 200 PSI Air Source Compressor Kit 12 Volt | Includes 2.0 Gallon Air Tank

Fast-Fill 200 PSI Air Source Kits come with a powerful, low amp-draw 380C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports.

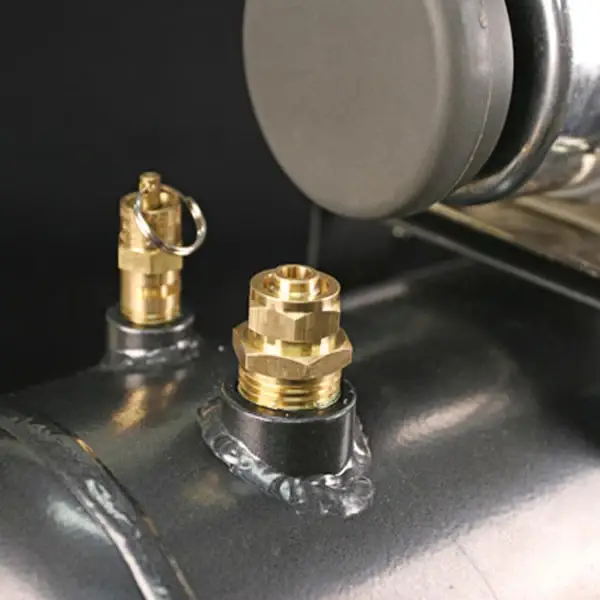

All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry’s leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8-inch air line pre-installed!

To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting.

A 40-amp relay and an appropriately-rated fuse is recommended for use with this unit.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• PN: 20007
• CFM: 1.58 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. Amp Draw: 23 Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 19″L x 5.9″W x 14.2″H
• Net Weight: 21.05 lbs.

FEATURES:

• 380C Pewter Air Compressor
• Thermal Overload Protector
• 2.0 Gallon Air Tank

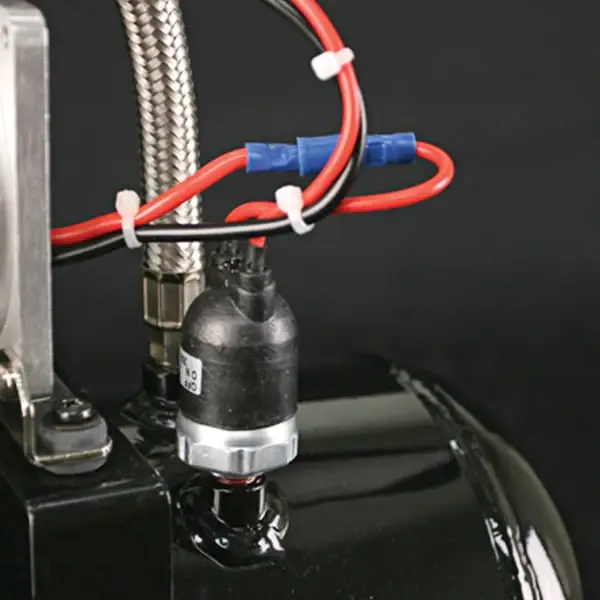

• Pressure Switch (165 PSI On / 200 PSI Off)

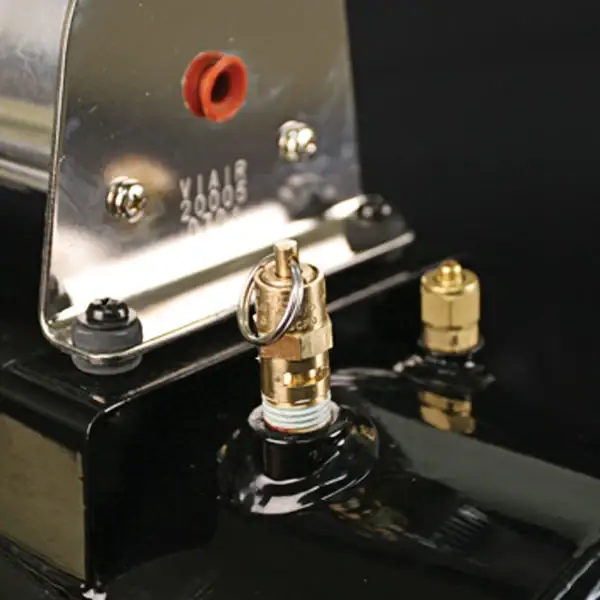

• Safety Valve (250 PSI)

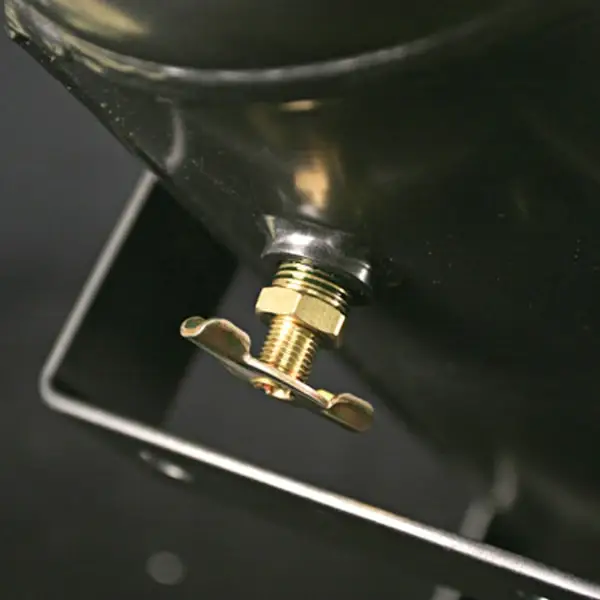

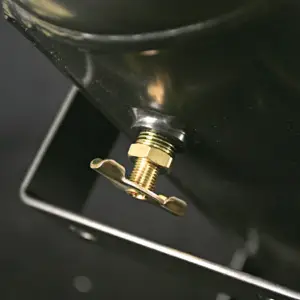

• Drain Cock
• Leader Hose with Check Valve

FILL RATES

• 2.0 GALLON TANK FILL RATE
  • 0 to 200 PSI 5 min. 30 sec. (± 15 sec.)
  • 165 to 200 PSI 1 min. 25 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
