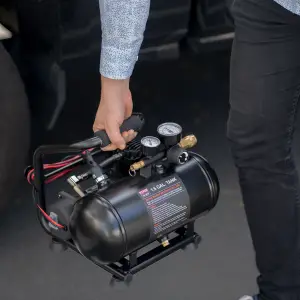

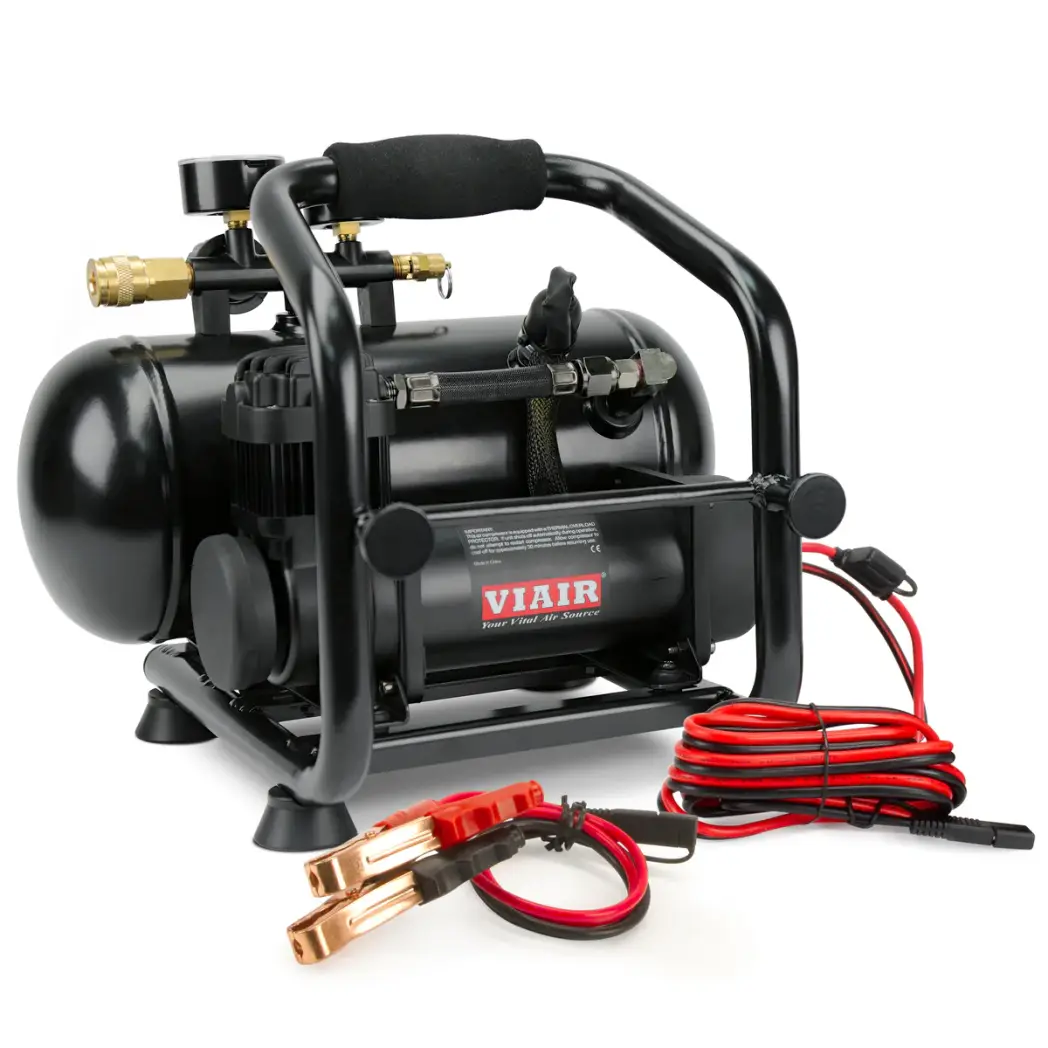

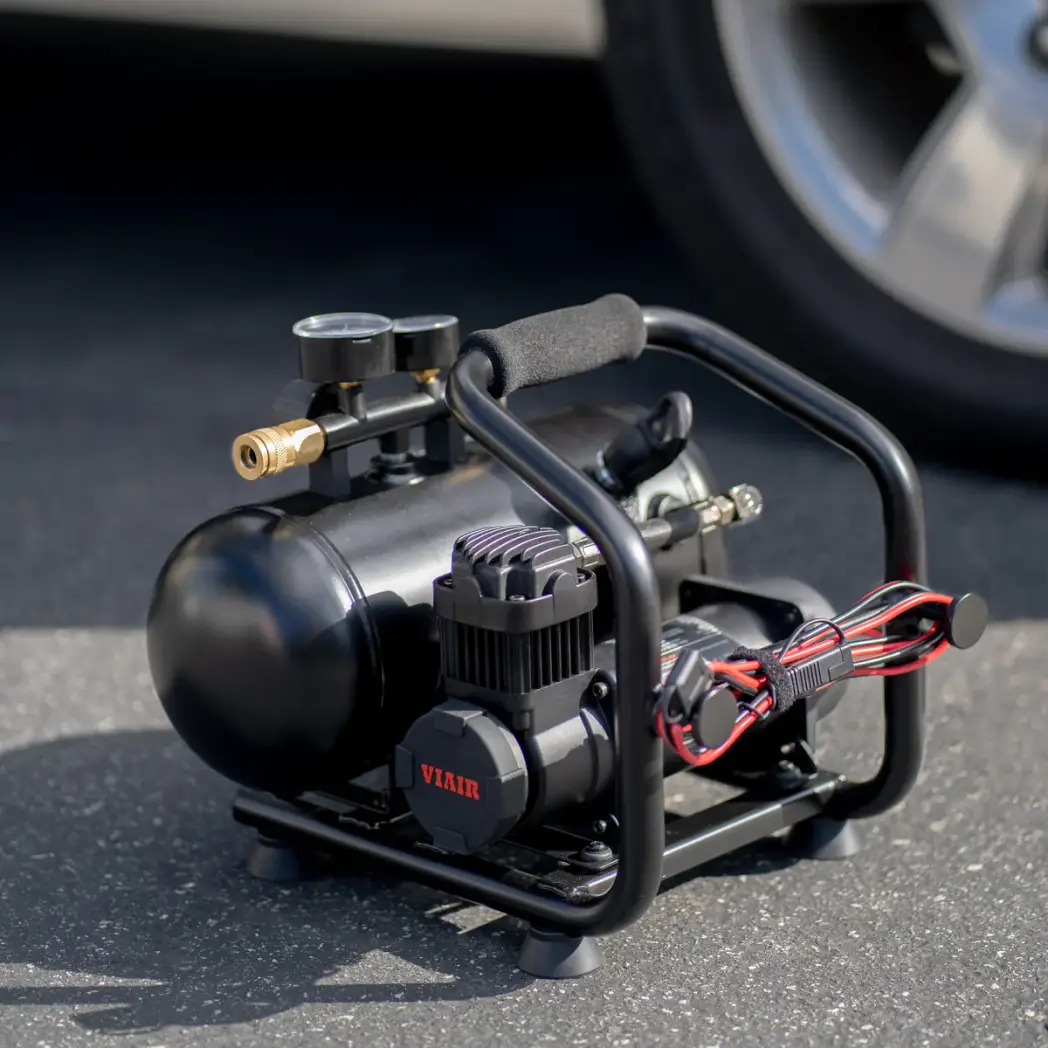

38034 | VIAIR 200 PSI Plug N Play On Demand Air Compressor Kit 12 Volt | Battery Clamps, Includes 1.5 Gallon Air Tank

The 200 PSI Plug-N-Play On-Demand Portable is the optimal solution for any enthusiast who needs tire inflation and performs multiple pneumatic tasks on the go.

Please Note:

• Filling tires and other inflatable items: Adjust the regulator to the highest output pressure (200 PSI) for maximum airflow *

SPECIFICATIONS

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. 12V Amp Draw: 23-Amps
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 14”L x 14″W x 12”H
• Net Weight: 23.25 lbs.

FEATURES:

• 1.5 Gallon Air Tank (200 PSI)
• 380C Stealth Black Compressor w/ Thermal Overload Protector
• Sealed Pressure Switch
  (165 PSI on, 200 PSI off)
• 0-200 PSI Pressure Regulator
• 200 PSI Tank Pressure Gauge
• 2-Pin SAE Connector to Alligator Clamp (P/N 38034) or 7-Way Power Access (P/N 38035)
• 1/4” Drain Cock
• 1/4” Auto Quick Connect Coupler
• Air Filter
• Safety Valve (250 PSI)

FILL RATES

TIRE FILL RATE

• 225/60R18 FILL RATE
  • 20 to 30 PSI 6 sec. (± 03 sec.)
  • 30 to 40 PSI 12 sec. (± 03 sec.)
• 33″ X 12.5R20 FILL RATE
  • 27 to 36 PSI 18 sec. (± 03 sec.)
  • 37 to 44 PSI 13 sec. (± 03 sec.)

TANK FILL RATE

• 1.5 GALLON TANK FILL RATE
  • 0 to 200 PSI 3 min. 41 sec. (± 10 sec.)
  • 165 to 200 PSI 57 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
