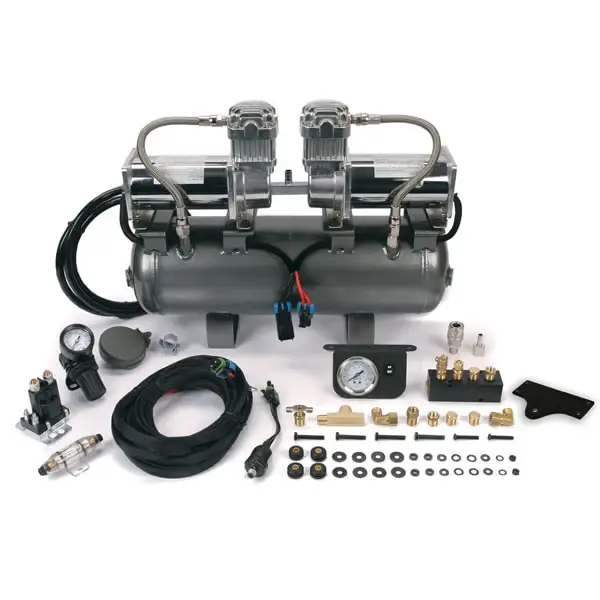

30018 | VIAIR High Pressure 2 On 2 Air Compressor System 12 Volt | 200 PSI, Includes 2.0 Gallon Air Tank

Using two high output compressors mounted to a 2.0 gallon, 2on2 systems provide 200 PSI of maximum pressure.

They come with an easy-to-install wiring harness and manifold to make wiring and plumbing straightforward.

Please Note:

• 2on2 Bolt-On Platform systems in universal models are not equipped with a crossmember mounting bracket.

SPECIFICATIONS

• PN: 30018
• CFM: 2.54 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSIDuty Cycle: 55% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Amp Draw: 44-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 18.5″L x 5.9″W x 13.5″H
• Net Weight: 30 lbs.

FEATURES:

PRE-INSTALLED:

• 2.0 Gallon 5-Port Air Tank
• (2) 380C Air Compressors w/Thermal Overload Protectors
• (2) 1/4” Stainless Steel Braided Leader Hoses
• (2) 1/4” JIC Fittings on Leader Hoses
• 1/4” NPT Swivel to 1/4” NPT Swivel
• T-Fitting (Remote Mount Filter)
• 1/4” NPT Drain Cock
• Sealed Pressure Switch with Delphi Connectors
  (165 PSI On, 200 PSI Off)
• (2) Loomed Compressor Wires Terminated
  with Delphi Connectors
• Inline Fuse Holder with Fuse
• 1/4” NPT Safety Valve
• (4) 1/4” NPT M Recessed Plugs

INCLUDED

• 60-amp Fuse & Fuse Holder
• 80-amp Relay
• (2) 1/4” BSP Adapters for Air Lockers
• T-Fitting 1/4″ NPT F x 1/4″ NPT F x 1/4″ NPT M
• 1/8″ to 1/4″ NPT Reducer
• Wiring Harness with Delphi Connectors
• (2) Delphi Connector Plug Kits
• Billet 1/4” NPT x 6-Port Manifold and Mounting Bracket
• Air Filter Housing with Installed Element
• (2) Replacement Air Filter Elements
• Dash Panel Air Pressure Gauge (0-160 PSI Illuminated)
• Air Pressure Regulator
• 15ft. DOT Air Line

FILL RATES

TIRE FILL RATE

• 37″ X 12.5″ FILL RATE
  • 0 to 30 PSI 5 min. 00 sec. (± 15 sec.)
  • 15 to 30 PSI 2 min. 30 sec. (± 10 sec.)
• 40″ X 15.5″ FILL RATE
  • 0 to 30 PSI 5 min. 25 sec. (± 15 sec.)
  • 15 to 30 PSI 2 min. 40 sec. (± 10 sec.)

TANK FILL RATE

• 2.0 GALLON TANK FILL RATE
  • 0 to 200 PSI 2 min. 35 sec. (± 10 sec.)
  • 165 to 200 PSI 40 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
