45052 | VIAIR Constant Duty Air Deployment Compressor System 12 Volt | Working Pressure 85/105 PSI

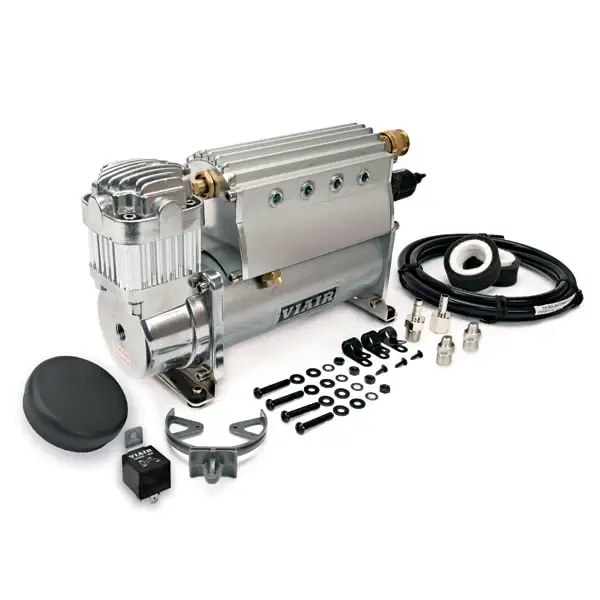

Automatic Deployment Air (ADA) Systems as a base model kit, delivering incredible performance in a compact space.

VIAIR ADA Base Model Kits incorporate a 12-port extruded aluminum air tank to provide a compact air locker and tire inflation station using a 450C (Constant Duty) compressor at its core.

SPECIFICATIONS

• PN: 45052, 45054
• CFM: 1.80 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 23-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 9.38″L x 4″W x 6.75″H
• Net Weight: 12.5lbs.

FEATURES:

• 450C Compressor w/Thermal Overload Protector
• 0.33 Gallon Extruded Aluminum Air Tank (12-port)
• Pre-installed Safety Valve
• Pre-installed 1/8” NPT Drain Cock
• Pre-installed 85/105 PSI Pressure Switch (P/N 45052)
• Pre-installed 110/145 PSI Pressure Switch (P/N 45054)
• (8) Pre-installed 1/4” NPT Recessed Port Plugs
• Pre-installed Quick Connect Coupler
• 40-Amp Relay
• (2) 1/4” NPT to 1/8” BSP Adapters
• 1/4” NPT M Barbed Fitting for 3/8” Air Line
• 1/4” NPT F Barbed Fitting for 3/8” Air Line
• Coiled Air Line (For Remote Mount Air Filter Installation)
• Air Filter Housing
• (2) Replacement Air Filter Elements
• Mounting Hardware

FILL RATES

• 33” X 12.5″ FILL RATE
  • 0 to 30 PSI 5 min. 30 sec. (± 10 sec.)
  • 15 to 30 PSI 2 min. 50 sec. (± 05 sec.)
• 35” X 12.5” FILL RATE
  • 0 to 30 PSI 6 min. 55 sec. (± 15 sec.)
  • 15 to 30 PSI 3 min. 30 sec. (± 10 sec.)
• 37″ X 12.5″ FILL RATE
  • 0 to 30 PSI 7 min. 56 sec (± 15 sec.)
  • 15 to 30 PSI 4 min. 09 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
