50009 | VIAIR Mobile Playground Onboard Air Compressor System 12 Volt | 200 PSI, Includes 1.5 Gallon Air Tank

Mobile Playground Constant Duty OBA is powered by a pair of 380C pewter compressors, operates from a 1.5 gallon tank at 200PSI and is capable of inflating tires up to 40”.

VIAIR’s Toy hauler OBA’s are powerful systems capable of fast tire inflation and many other pneumatic tasks.

Featuring dual compressors, extension hoses and different size tanks to meet spacing needs, these kits are a must for anyone hauling long trailers in need of serviceable air.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• PN: 50009
• CFM: 2.54 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Combined Max. Amp Draw: 46-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 9″L x 4″W x 6.75″H (Each Unit)

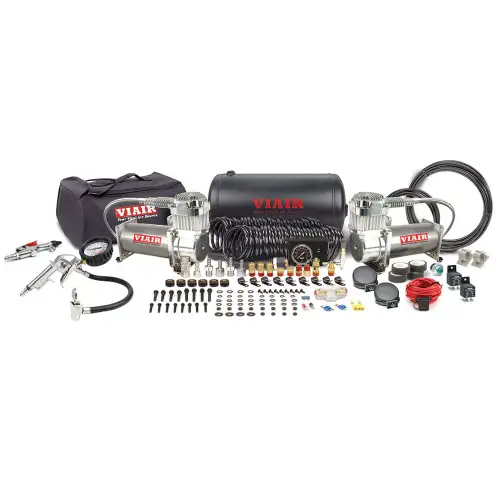

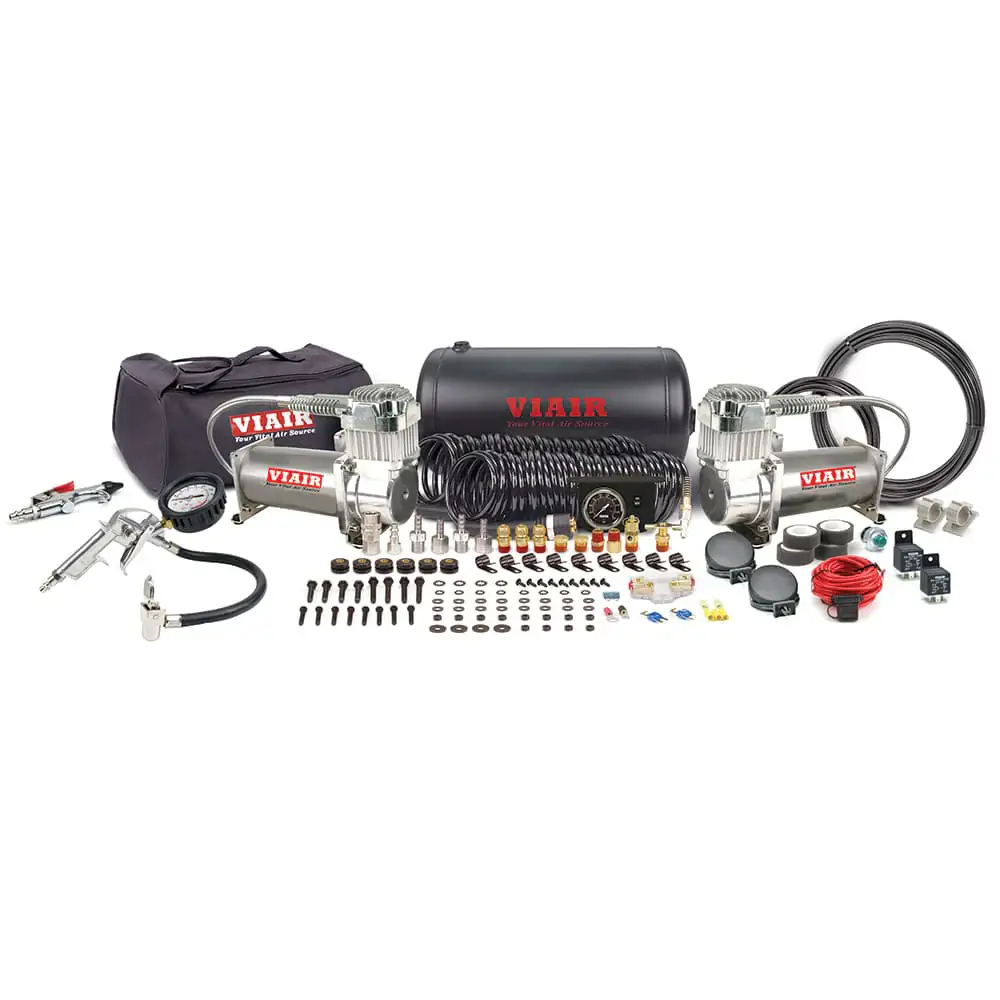

FEATURES:

• (2) 380C 200 PSI VIAIR®Pewter Air Compressors
  w/Thermal Overload Protectors
• 1.5 Gallon Matte Black VIAIR Air Tank (200 PSI)
• Illuminated Dash Panel Gauge Kit, Black Face 200 PSI
• Pressure Switch (165 PSI on, 200 PSI off)
• (2) 40-Amp 4-Prong Relays
• Mini ANL Fuse Holder w/ 60-Amp Fuse
• Tire Inflation Gun w/ Mechanical 200 PSI Gauge
• (2) 30ft. Coil Hose with Quick Connect and Stud
• Rubber Tipped Blow Gun
• 250PSI Safety Valve
• (2) Air Filter Housing w/ Replacement Air Filter Elements
• 20ft. Freeze Resistant 12-Gauge Wire
w/ Inline Fuse Holder
• VIAIR Storage Bag

FILL RATES

TIRE FILL RATE

• 37″X12.5″ FILL RATE
  • 0 to 30 PSI 4 min. 03 sec. (± 10 sec.)
  • 15 to 30 PSI 2 min. 30 sec. (± 05 sec.)
• 40″X15.5″ FILL RATE
  • 0 to 30 PSI 5 min. 25 sec. (± 15 sec.)
  • 15 to 30 PSI 2 min. 40 sec. (± 10 sec.)
• 235/80R16 FILL RATE
  • 0 to 80 PSI 4 min. 50 sec. (± 15 sec.)
  • 30 to 40 PSI 11 sec. (± 03 sec.)
  • 40 to 50 PSI 20 sec. (± 03 sec.)
  • 50 to 60 PSI 29 sec. (± 03 sec.)
  • 60 to 80 PSI 1 min. 22 sec. (± 05 sec.)

TANK FILL RATE

• 1.5 GALLON TANK FILL RATE
  • 0 to 200 PSI 1 min. 33 sec. (± 05 sec.)
  • 165 to 200 PSI 22 sec. (± 03 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
