444DC01 | VIAIR Dual 444C VMS Air Compressor System 12 Volt In Chrome | 200 PSI, Max Air Tank Size 10.0 Gallon

VIAIR Mounted Systems (VMS) are high-performance onboard air systems designed to provide high CFM flow and fast tire fill with unsurpassed durability.

These kits come with all components necessary to install a fully functioning system.

VMS can be used for tire inflation, air tools, air horns, air lockers, air bags and inflatables of all kinds.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• CFM: 3.88 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Duty Cycle: 50% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 10.0 Gallon
• Combined Max. Amp Draw: 46-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 10.87″L x 4.2″W x 7.06″H (Each Unit)
• Net Weight: 29lbs

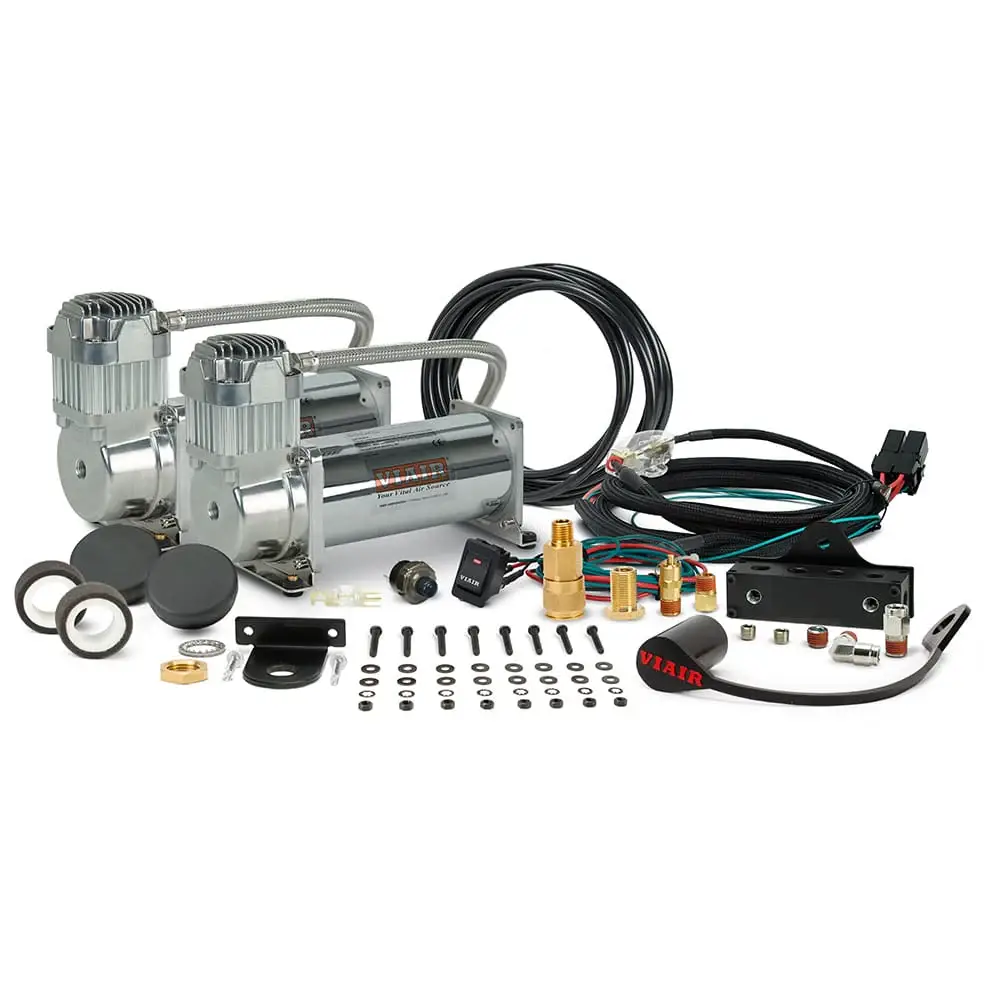

FEATURES:

• (2) 444C (Stealth Black or Chrome) Compressors w/ Thermal Overload Protectors
• Complete dual wiring harness w/ 80A fuse holder.
• Air Locker compatible
• Sealed compressor with IP rating of IP67(Waterproof/Dustproof)
• Designed to be air tank ready (Air tank optional)
• 8-Port Billet Manifold
• Pro Series Air Source Relocation Kit
• Illuminated Rocker Switch

FILL RATES

TIRE FILL RATE

• 35" X 12.5" FILL RATE
  • 0 to 40 PSI 5 min. 00 sec. (± 15 sec.)
  • 10 to 40 PSI 3 min. 59 sec. (± 10 sec.)
• 37" X 12.5" FILL RATE
  • 0 to 40 PSI 5 min. 35 sec. (± 15 sec.)
  • 10 to 40 PSI 4 min. 25 sec. (± 10 sec.)

TANK FILL RATE

• 2.5 GALLON TANK FILL RATE
  • 0 to 145 PSI 1 min. 23 sec. (± 05 sec.)
  • 110 to 145 PSI 26 sec. (± 03 sec.)
  • 0 to 200 PSI 2 min. 23 sec. (± 10 sec.)
  • 165 to 200 PSI 40 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 145 PSI 2 min. 57 sec. (± 10 sec.)
  • 110 to 145 PSI 57 sec. (± 05 sec.)
  • 0 to 200 PSI 5 min. 03 sec. (± 15 sec.)
  • 165 to 200 PSI 1 min. 26 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
