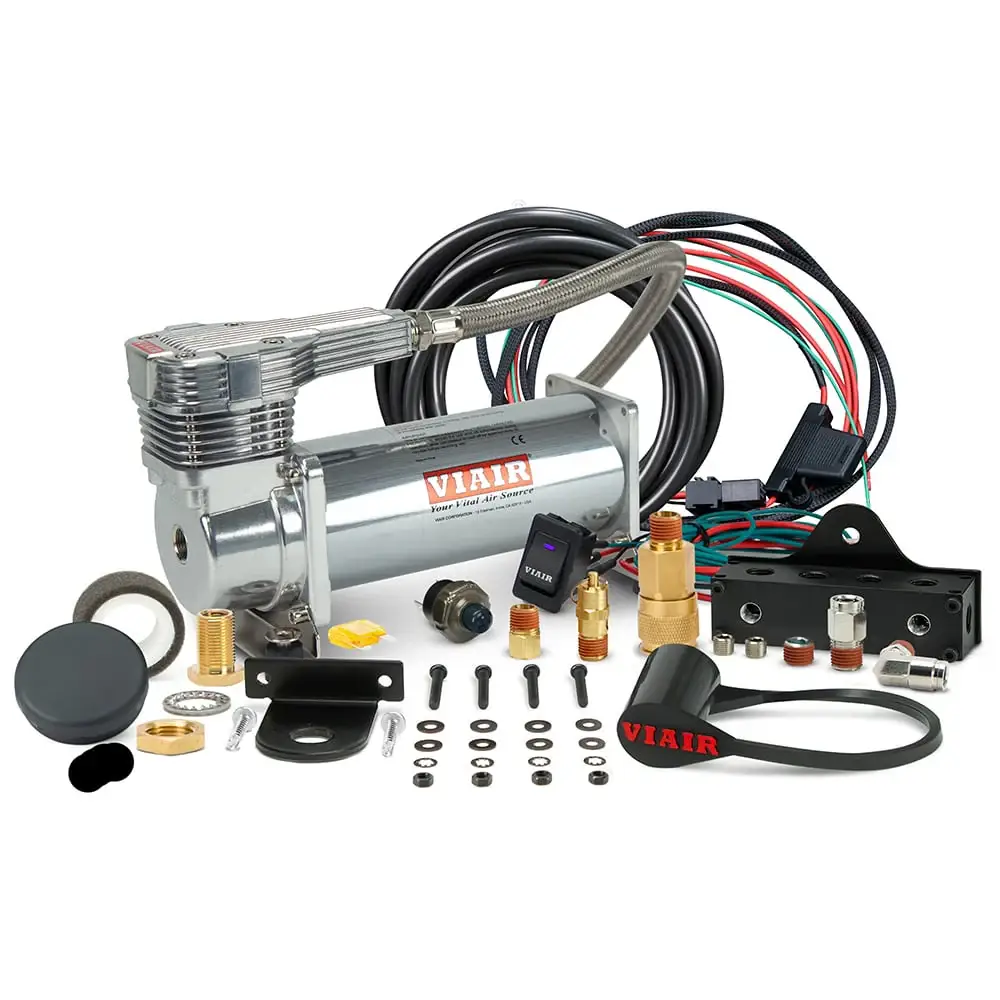

485SP01 | VIAIR Single 485C VMS Air Compressor System 12 Volt In Platinum | 200 PSI, Max Air Tank Size 5.0 Gallon

VIAIR Mounted Systems (VMS) are high-performance onboard air systems designed to provide high CFM flow and fast tire fill with unsurpassed durability.

These kits come with all components necessary to install a fully functioning system.

VMS can be used for tire inflation, air tools, air horns, air lockers, air bags and inflatables of all kinds.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• CFM: 2.24 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. Amp Draw: 23-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Compressor Dimensions: 10.63″L x 4.1″W x 6.44″H
• Compressor’s Net Weight: 11.10 lbs.

FILL RATES

TIRE FILL RATE

• 35″ x 12.5″ FILL RATE
  • 0 to 40 PSI 8 min. 21 sec. (± 15 sec.)
  • 10 to 40 PSI 6 min. 27 sec. (± 15 sec.)
• 37″ x 12.5″ FILL RATE
  • 0 to 40 PSI 9 min. 36 sec. (± 15 sec.)
  • 10 to 40 PSI 7 min. 22 sec. (± 15 sec.)

TANK FILL RATE

• 2.5 GALLON TANK FILL RATE
  • 0 to 200 PSI 4 min. 50 sec. (± 10 sec.)
  • 165 to 200 PSI 1 min. 15 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 200 PSI 9 min. 45 sec. (± 15 sec.)
  • 165 to 200 PSI 2 min. 25 sec (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
