400DB | VIAIR Dual 400C VMS Air Compressors 12 Volt In Stealth Black | 150 PSI, Max Air Tank Size 10.0 Gallon

Meet the alpha of onboard compressor systems.

The 400C VMS dual compressor is the fastest-filling, highest-performance onboard system out there.

Rated IP67 dust and waterproof, this is a highly customizable system that can be mounted in various configurations in your off-road vehicle.

Comes with everything needed to install and operate. We’ll see you on the trail!

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• CFM: 5.12 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Duty Cycle: 100% @ 40 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 10.0 Gallon
• Combined Max. Amp Draw: 60-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
• Net Weight: 19 lbs.

FEATURES:

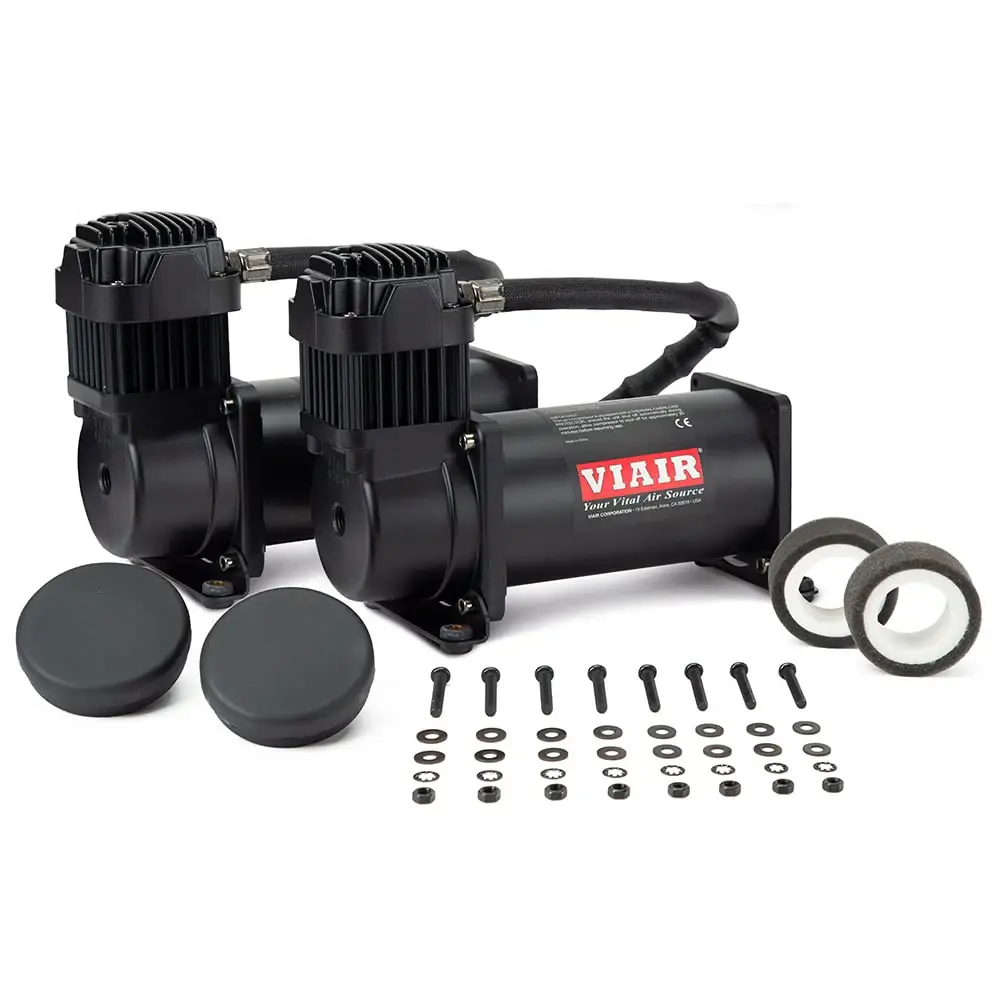

• (2) 400C (Stealth Black or Chrome) Compressors
  w/ Thermal Overload Protectors
• (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
• (2) Air Filter Assemblies
• (2) Sets of Spare Air Filter Elements
• (2) Sets of Nuts, Bolts, Washers and Lock Washers

FILL RATES

TIRE FILL RATE

• 35" X 12.5" FILL RATE
  • 0 to 40 PSI 4 min. 15 sec. (± 15 sec.)
  • 10 to 40 PSI 3 min. 15 sec. (± 10 sec.)
• 37" X 12.5" FILL RATE
  • 0 to 40 PSI 4 min. 55 sec. (± 15 sec.)
  • 10 to 40 PSI 3 min. 45 sec. (± 10 sec.)

TANK FILL RATE

• 2.5 GALLON TANK FILL RATE
  • 0 to 145 PSI 1 min. 10 sec. (± 05 sec.)
  • 110 to 145 PSI 20 sec. (± 03 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 145 PSI 2 min. 21 sec. (± 10 sec.)
  • 110 to 145 PSI 43 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
