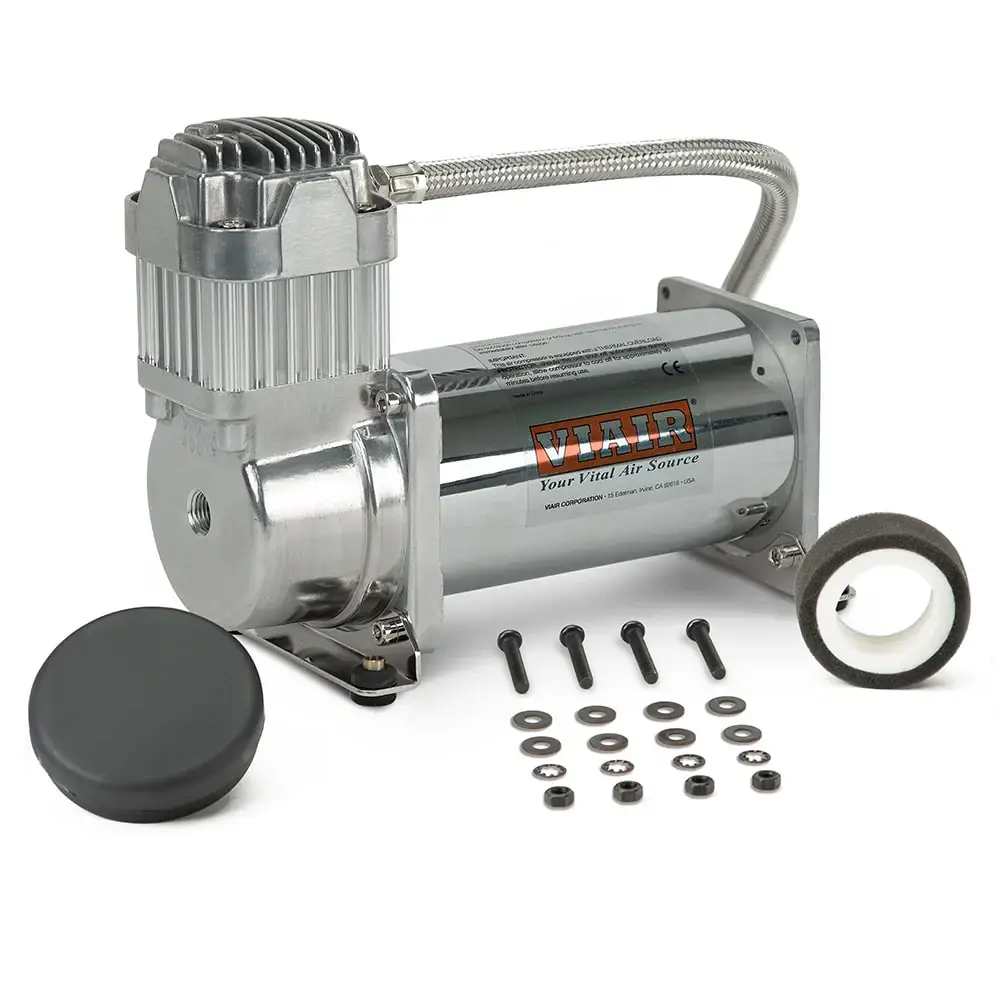

400SC | VIAIR 400C VMS Air Compressor 12 Volt In Chrome | 150 PSI, Max Air Tank Size 5 Gallon

The 400 VMS air compressor is the system's core component, sold separately to allow you to build your onboard air system however you'd like.

This down-and-dirty version is also an ideal choice for those who need a compressor to upgrade or complete their build.

Check out the recommended components to complete your project!

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• CFM: 2.62 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Duty Cycle: 100% @ 40 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. Amp Draw: 30-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 9″L x 4″W x 6.75″H
• Net Weight: 8.65 lbs.

FEATURES:

• (1) 400C (Stealth Black or Chrome) Compressor
  w/ Thermal Overload Protector
• (1) Stainless Steel Braided Leader Hose
  w/ Inline Check Valve
• (1) Air Filter Assembly
• (1) Spare Air Filter Element
• (1) Set of Nuts, Bolts, Washers and
  Lock Washers

FILL RATES

TIRE FILL RATE

• 35″ x 12.5″ FILL RATE
  • 0 to 40 PSI 7 min. 09 sec. (± 15 sec.)
  • 10 to 40 PSI 5 min. 29 sec. (± 10 sec.)
• 37″ x 12.5″ FILL RATE
  • 0 to 40 PSI 8 min. 15 sec. (± 15 sec.)
  • 10 to 40 PSI 6 min. 19 sec. (± 15 sec.)

TANK FILL RATE

• 2.5 GALLON TANK FILL RATE
  • 0 to 145 PSI 2 min. 27 sec. (± 05 sec.)
  • 110 to 145 PSI 55 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 145 PSI 4 min. 50 sec. (± 10 sec.)
  • 110 to 145 PSI 1 min. 40 sec (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
