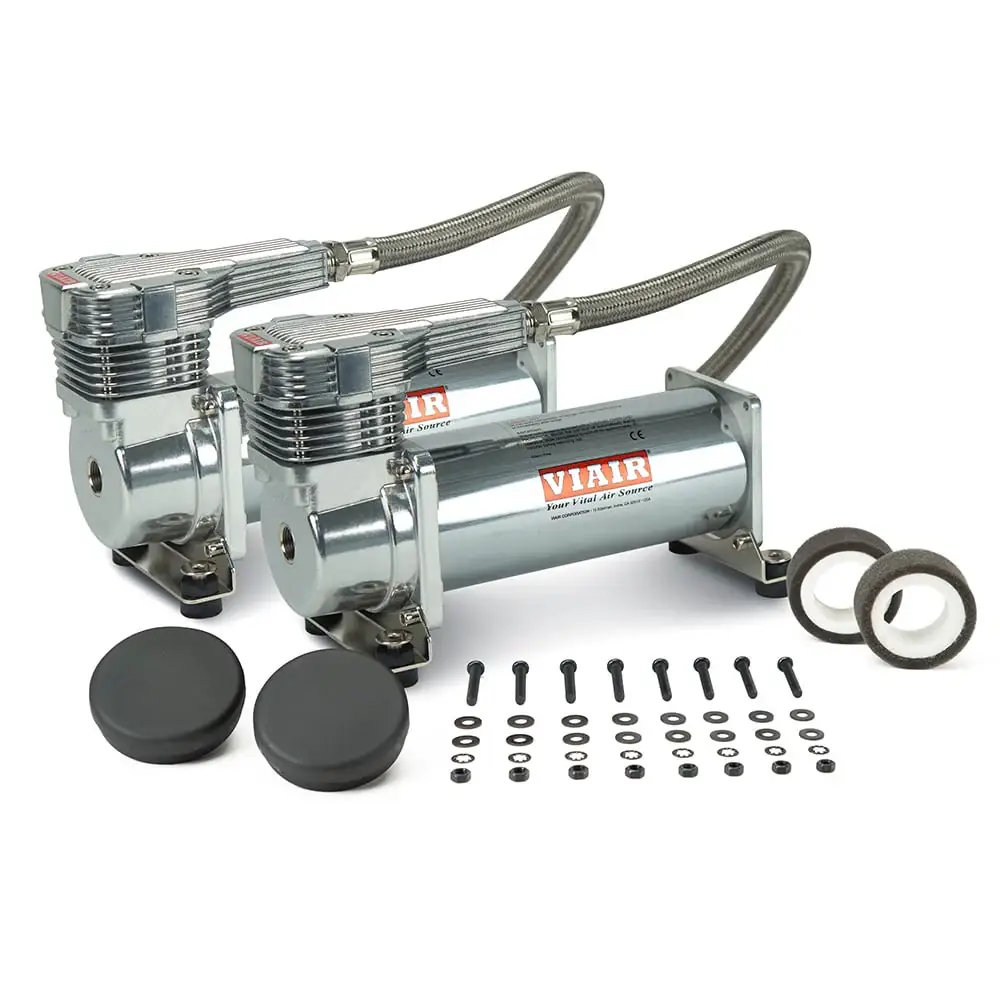

485DP | VIAIR Dual 485C VMS Air Compressors 12 Volt In Platinum | 200 PSI, Max Air Tank Size 10.0 Gallon

Dual 485C VMS Air Compressors 12 Volt In Platinum | 200 PSI, Max Air Tank Size 10.0 Gallon | Universal - Check Specification Before Ordering

485DP
Pricing: $699.30
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The 485 VMS air compressors are the core components of a system, sold separately to allow you to build your onboard air system however you'd like.

These down-and-dirty versions are also an ideal choice for those who need a pair of compressors to upgrade or complete their build.

Check out the recommended components to complete your project!s.

Please Note:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

  • CFM: 3.92 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 46-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
  • Net Weight: 24 lbs.

FEATURES:

  • (2) 485C (Stealth Black or Platinum) Compressors
    w/ Thermal Overload Protectors
  • (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • (2) Air Filter Assemblies
  • (2) Sets of Spare Air Filter Elements
  • (2) Sets of Nuts, Bolts, Washers and Lock Washers

FILL RATES

TIRE FILL RATE

  • 35″ X 12.5″ FILL RATE
    • 0 to 40 PSI 5 min. 03 sec. (± 15 sec.)
    • 10 to 40 PSI 3 min. 49 sec. (± 10 sec.)
  • 37″ X 12.5″ FILL RATE
    • 0 to 40 PSI 5 min. 33 sec. (± 15 sec.)
    • 10 to 40 PSI 4 min. 14 sec. (± 10 sec.)

TANK FILL RATE

  • 2.5 GALLON TANK FILL RATE
    • 0 to 145 PSI 1 min. 25 sec. (± 05 sec.)
    • 110 to 145 PSI 28 sec. (± 03 sec.)
    • 0 to 200 PSI 2 min. 22 sec. (± 10 sec.)
    • 165 to 200 PSI 39 sec. (± 03 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 145 PSI 2 min. 56 sec. (± 10 sec.)
    • 110 to 145 PSI 57 sec. (± 05 sec.)
    • 0 to 200 PSI 4 min. 58 sec. (± 15 sec.)
    • 165 to 200 PSI 1 min. 20 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 3.92 22 0 111.0 22
10 3.64 25 1.0 100.0 27
20 3.39 28 2.0 91.0 31
30 3.21 31 3.0 80.0 35
40 2.93 34 4.0 73.0 37
50 2.75 36 5.0 67.0 39
60 2.58 37 6.0 60.0 39
70 2.40 38 7.0 56.0 40
80 2.22 39 8.0 50.0 40
90 2.08 40 9.0 46.0 39
100 1.98 40 10.0 40.0 39
110 1.91 40 11.0 36.0 38
120 1.73 40 12.0 33.0 37
130 1.62 39 13.0 30.0 35
140 1.45 39 14.0 28.0 34
150 1.38 38
160 1.27 38
170 1.20 37
180 1.17 37
190 1.06 35
200 0.99 35



12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts - Tested with Check Valve

PSI CFM A BAR LPM A
0 3.82 23 0 110.0 23
10 3.51 26 1.0 93.0 27
20 3.27 30 2.0 84.0 31
30 3.05 32 3.0 75.0 35
40 2.90 35 4.0 71.0 37
50 2.73 37 5.0 65.0 39
60 2.61 38 6.0 61.0 41
70 2.45 40 7.0 55.0 41
80 2.34 41 8.0 50.0 42
90 2.24 41 9.0 45.0 42
100 2.09 41 10.0 41.0 42
110 1.94 42 11.0 39.0 41
120 1.87 42 12.0 34.0 40
130 1.72 42 13.0 32.0 40
140 1.64 42 14.0 29.0 39
150 1.55 42
160 1.48 41
170 1.37 41
180 1.29 41
190 1.22 40
200 1.13 39

Application List

Universal - Check Specification Before Ordering
