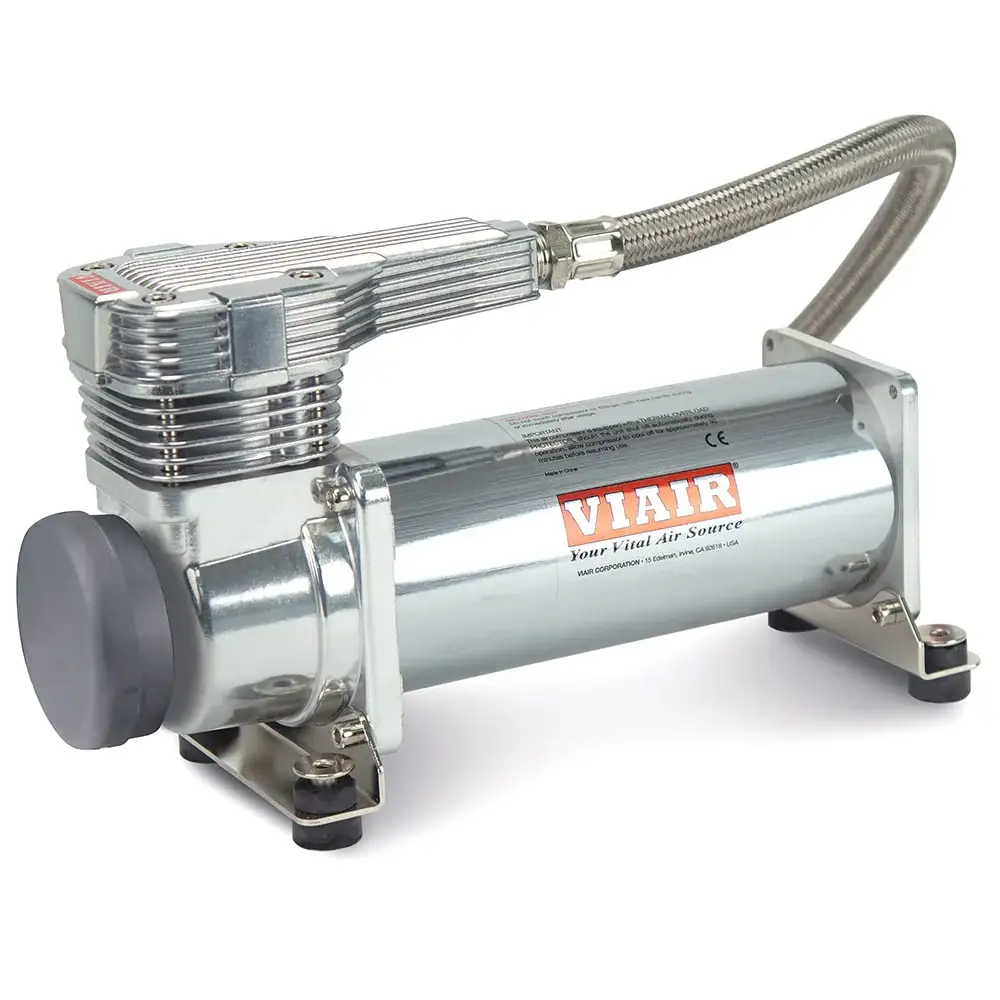

485SP | VIAIR Single 485C VMS Air Compressor 12 Volt In Platinum | 200 PSI, Max Air Tank Size 5.0 Gallon

The 485 VMS air compressor is the system's core component, sold separately to allow you to build your onboard air system however you'd like.

This down-and-dirty version is also an ideal choice for those who need a compressor to upgrade or complete their build.

Check out the recommended components to complete your project!

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• CFM: 2.24 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. Amp Draw: 23-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Compressor Dimensions: 10.63″L x 4.1″W x 6.44″H
• Compressor’s Net Weight: 11.10 lbs.

Features

• 1) 485C (Stealth Black or Platinum) Compressor
  w/ Thermal Overload Protector
• (1) Stainless Steel Braided Leader Hose
  w/ Inline Check Valve
• (1) Air Filter Assembly
• (1) Spare Air Filter Element
• (1) Set of Nuts, Bolts, Washers and
  Lock Washers

FILL RATES

TIRE FILL RATE

• 35″ x 12.5″ FILL RATE
  • 0 to 40 PSI 8 min. 21 sec. (± 15 sec.)
  • 10 to 40 PSI 6 min. 27 sec. (± 15 sec.)
• 37″ x 12.5″ FILL RATE
  • 0 to 40 PSI 9 min. 36 sec. (± 15 sec.)
  • 10 to 40 PSI 7 min. 22 sec. (± 15 sec.)

TANK FILL RATE

• 2.5 GALLON TANK FILL RATE
  • 0 to 200 PSI 4 min. 50 sec. (± 10 sec.)
  • 165 to 200 PSI 1 min. 15 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 200 PSI 9 min. 45 sec. (± 15 sec.)
  • 165 to 200 PSI 2 min. 25 sec (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
