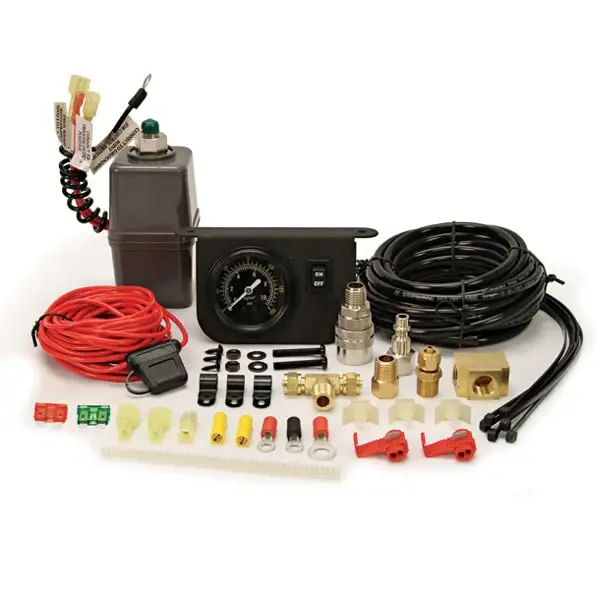

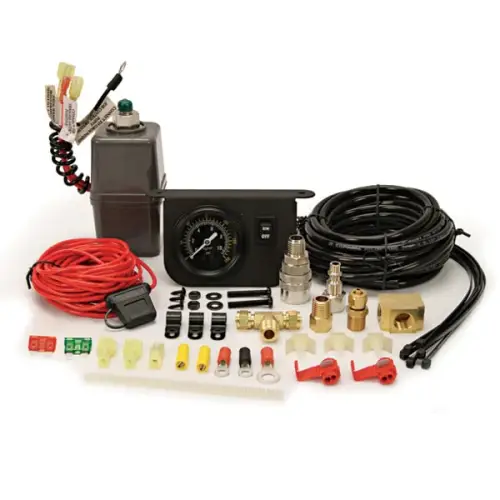

20052 | VIAIR Onboard Air Hookup Kit 12 Volt | 110 PSI On / 145 PSI Off

The OBA hookup kit includes a Pressure Switch with Built-in Relay and an illuminated dash panel gauge with built-in ON/OFF switch.

It also comes with 20 feet of positive extension wire, 20 feet of air delivery line tubing, and every part needed to connect your system.

Tolerance: ± 5%

FEATURES

• (1) Illuminated Dash Panel Gauge
• (1) Illuminated Dash Panel Gauge
• (1) Pressure Switch with Built-In Relay
• (1) 20 Ft. Lead Wire with Inline Fuse
• (1) 1/4” (F) NPT Tee Fitting
• (1) 1/4” to 1/8” NPT Reducer
• (1) 1/4” Quick Connect Coupler
• (1) 1/4” (F) NPT Quick Connect Stud
• (1) 1/4” (M) NPT Compression Fitting*
• (1) 1/4” (M) NPT Compression Tee Fitting*
• (3) Insulated (F) Terminal Connectors
• (2) Insulated (M) Terminal Connectors
• (2) Quick Splice Connectors
• (3) Ring Terminals
• (6) Cable Ties
• (3) Cable Tie Brackets
• (3) Air Line Clips
• (1) Continuous Grommet
• (2) Mounting Screws, Washers, Nuts
• (1) Instruction Manual

* All compression fittings are for 1/8” O.D. air line
