80300 | VIAIR Dual 400C VMS Air Compressor With Cradle Bracket 12 Volt In Chrome | 150 PSI, Max Air Tank Size 10.0 Gallon

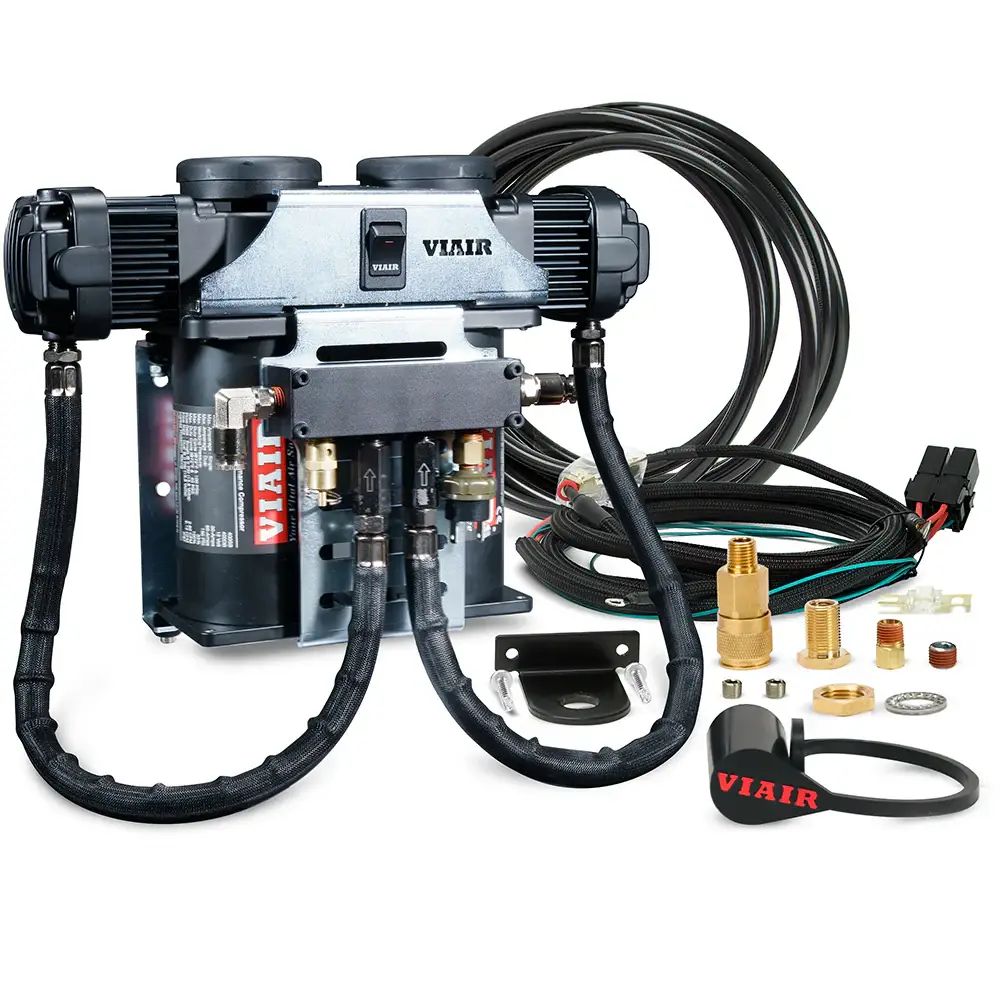

VIAIR Dual Mounted Systems (VMS) are high-performance onboard air systems designed to provide high CFM and fast tire fill with unsurpassed durability.

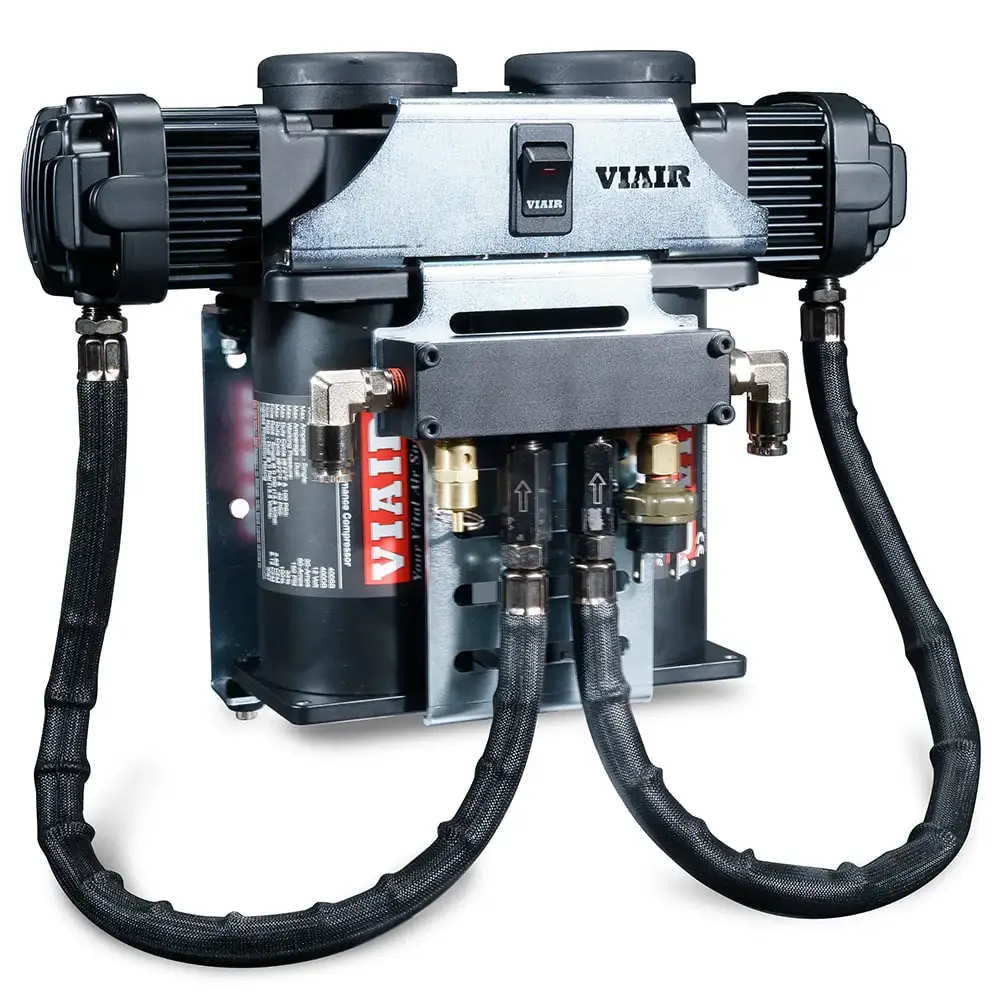

These kits come with all components necessary to install a fully functioning system. A silver universal cradle bracket integrates both compressors and provides easy mounting in various locations of the vehicle.

VMS can be used for tire inflation, air tools, air horns, air lockers, air bags and inflatables of all kinds.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• CFM: 5.12 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Duty Cycle: 100% @ 40 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 10.0 Gallon
• Combined Max. Amp Draw: 60 Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
• Net Weight: 25 lbs.

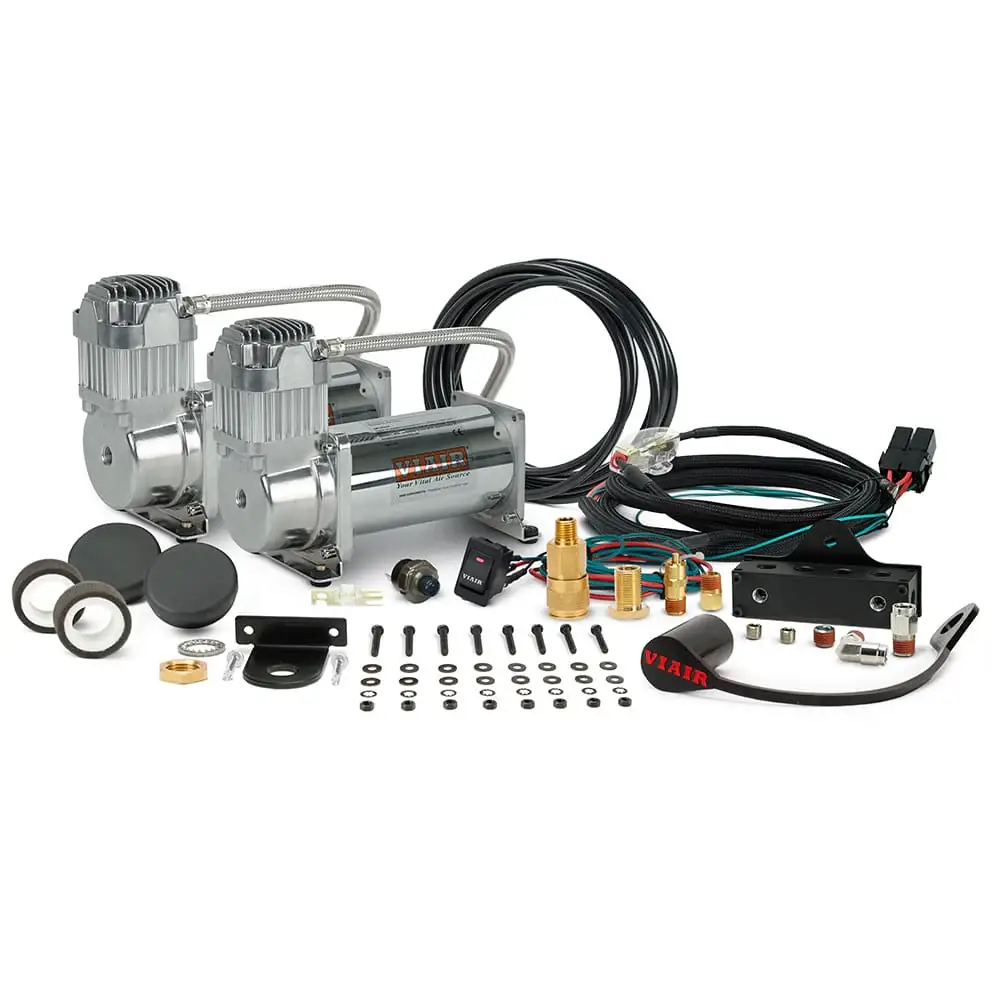

FEATURES:

• (2) 400C (Stealth Black or Chrome) Compressors
  w/ Thermal Overload Protectors
• Complete dual wiring harness
  w/ 80A fuse holder
• Air Locker compatible
• Sealed compressor with IP rating of IP67
  (Waterproof/Dustproof)
• Designed to be air tank ready (Air tank optional)
• 8-port Billet Manifold
• Pro Series Air Source Relocation Kit
• Illuminated Rocker Switch

FILL RATES

TIRE FILL RATE

• 35" X 12.5" FILL RATE
  • 0 to 40 PSI 4 min. 15 sec. (± 15 sec.)
  • 10 to 40 PSI 3 min. 15 sec. (± 10 sec.)
• 37" X 12.5" FILL RATE
  • 0 to 40 PSI 4 min. 55 sec. (± 15 sec.)
  • 10 to 40 PSI 3 min. 45 sec. (± 10 sec.)

TANK FILL RATE

• 2.5 GALLON TANK FILL RATE
  • 0 to 145 PSI 1 min. 10 sec. (± 05 sec.)
  • 110 to 145 PSI 20 sec. (± 03 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 145 PSI 2 min. 21 sec. (± 10 sec.)
  • 110 to 145 PSI 43 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
