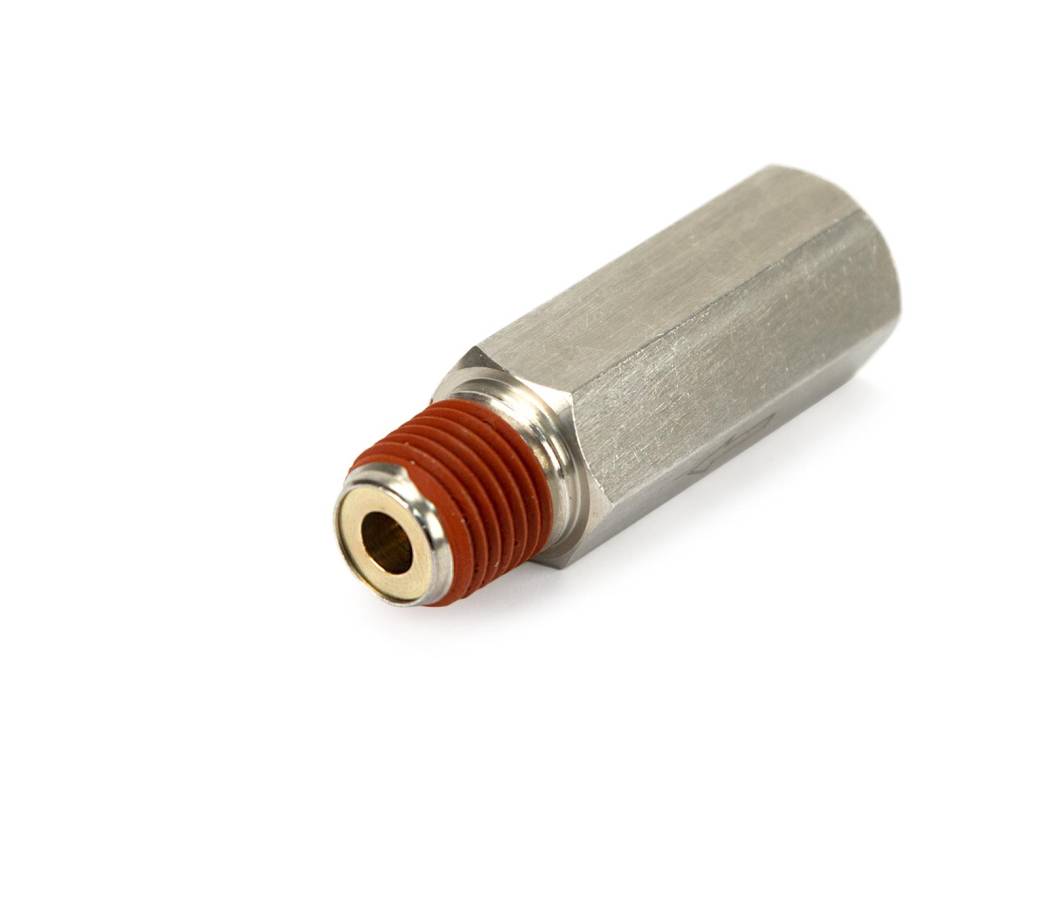

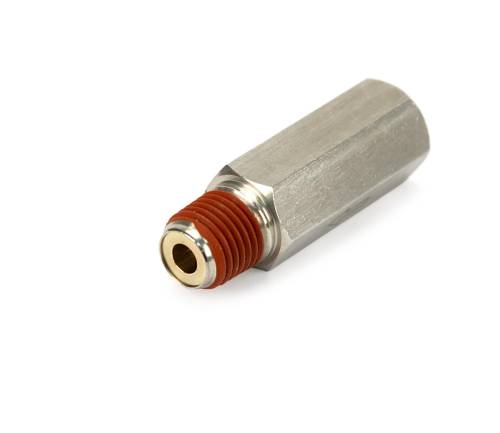

92830 | VIAIR Check Valves Pre-Treated With Thread Sealant In Stainless Steel Finish | JIC to 1/4" NPT (M), IG-Series

Check valves are one-way pneumatic valves designed to be installed in the leader hose or exhaust port of the compressor.

They keep the high air pressure away from the compressor head, preventing high-amperage starts and extending the life of the compressor.

*Torque spec for 1/8" NPT is 10-11 lb-ft

*Torque spec for 1/4" and 3/8" NPT is 12-15 lb-ft

Specifications

• Nickel Plated Stainless steel
• Operating Temperature: -22°F – 212°F
• Max. Working Pressure 450 PSI
• Min. Start Pressure 1-3 PSI
