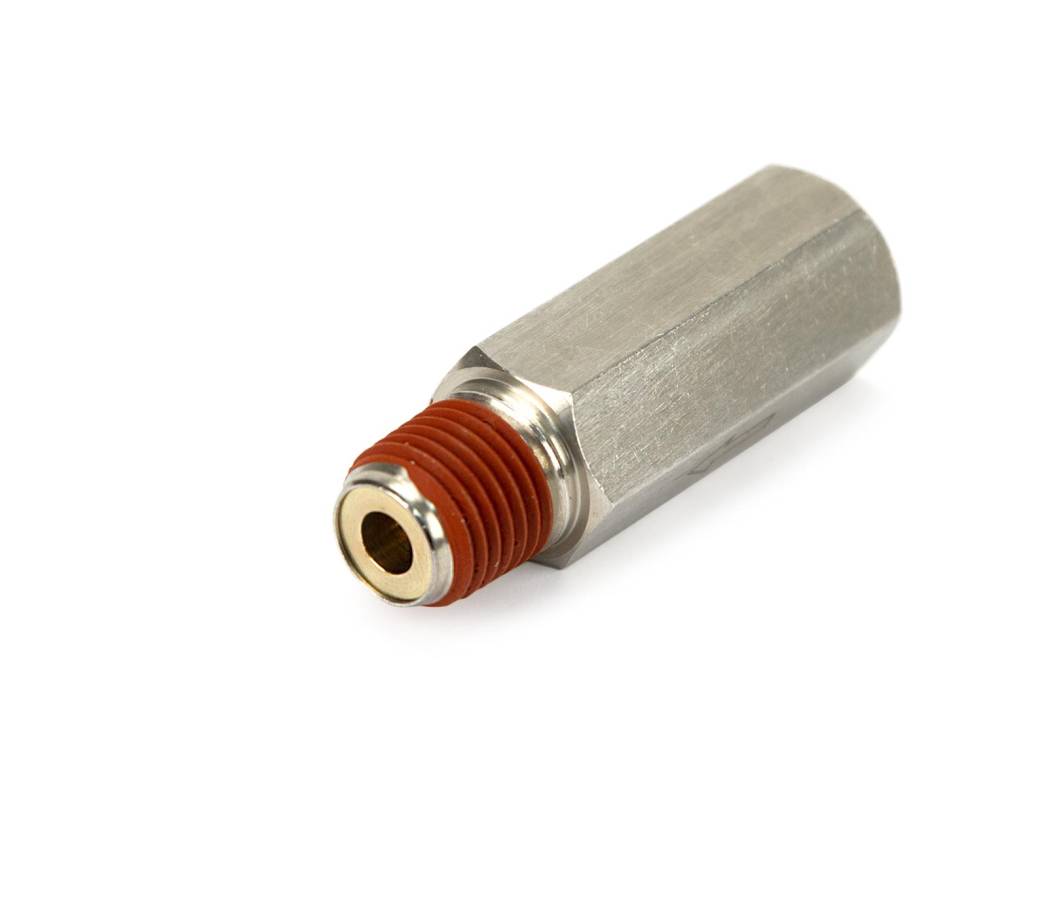

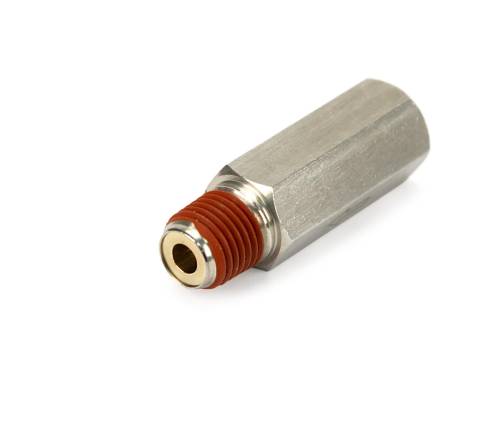

92831 | VIAIR Check Valves Pre-Treated With Thread Sealant In Stainless Steel Finish | 1/4" NPT (F) to 1/4" NPT (M)

VIAIR Check Valves Pre-Treated With Thread Sealant In Stainless Steel Finish | 1/4" NPT (F) to 1/4" NPT (M)

92831
Pricing: $15.33
Qty:

Description

Check valves are one-way pneumatic valves designed to be installed in the leader hose or exhaust port of the compressor.

They keep the high air pressure away from the compressor head, preventing high-amperage starts and extending the life of the compressor.

*Torque spec for 1/8" NPT is 10-11 lb-ft

*Torque spec for 1/4" and 3/8" NPT is 12-15 lb-ft

Specifications

  • Nickel Plated Stainless steel
  • Operating Temperature: -22°F – 212°F
  • Max. Working Pressure 450 PSI
  • Min. Start Pressure 1-3 PSI



Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.0 lbs.
  • W2.0000” x H2.0000” x L2.0000”
