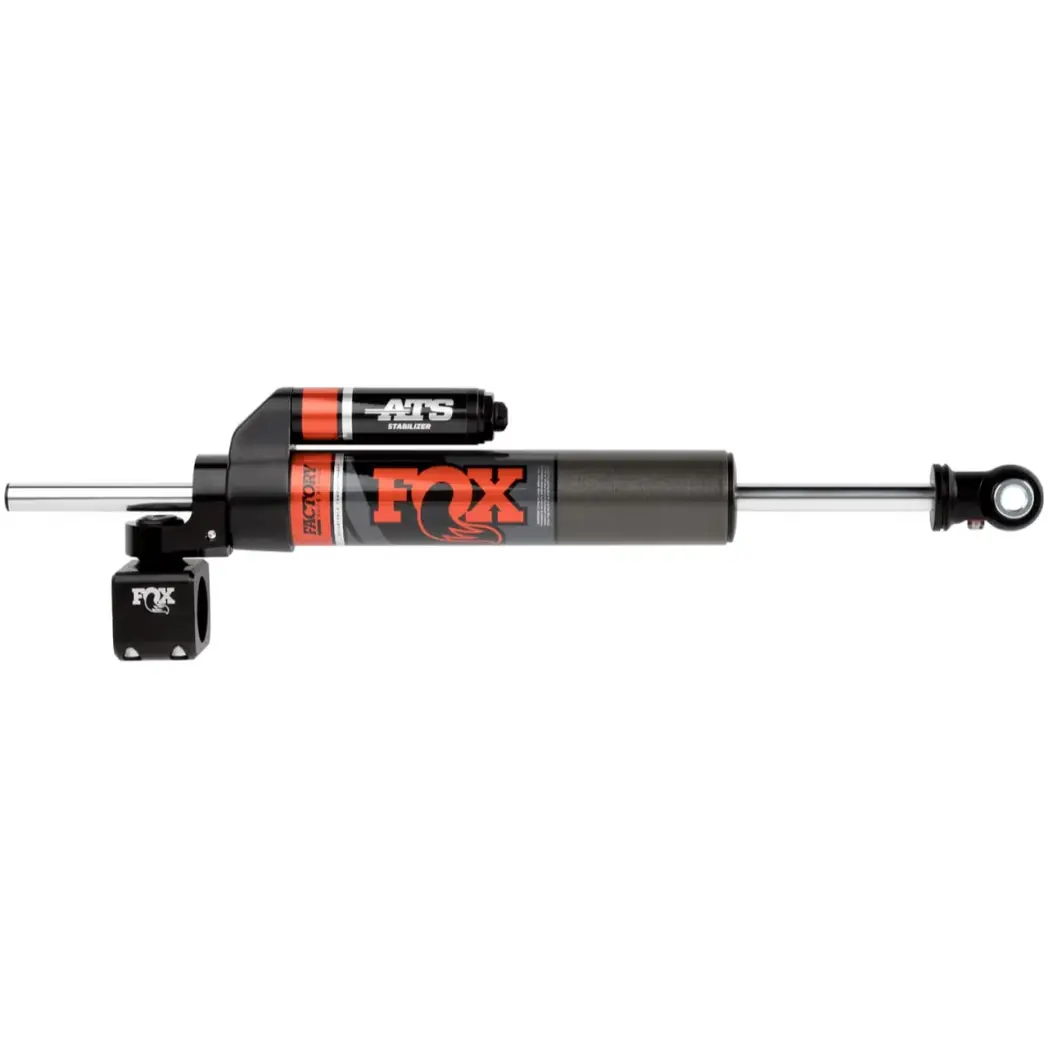

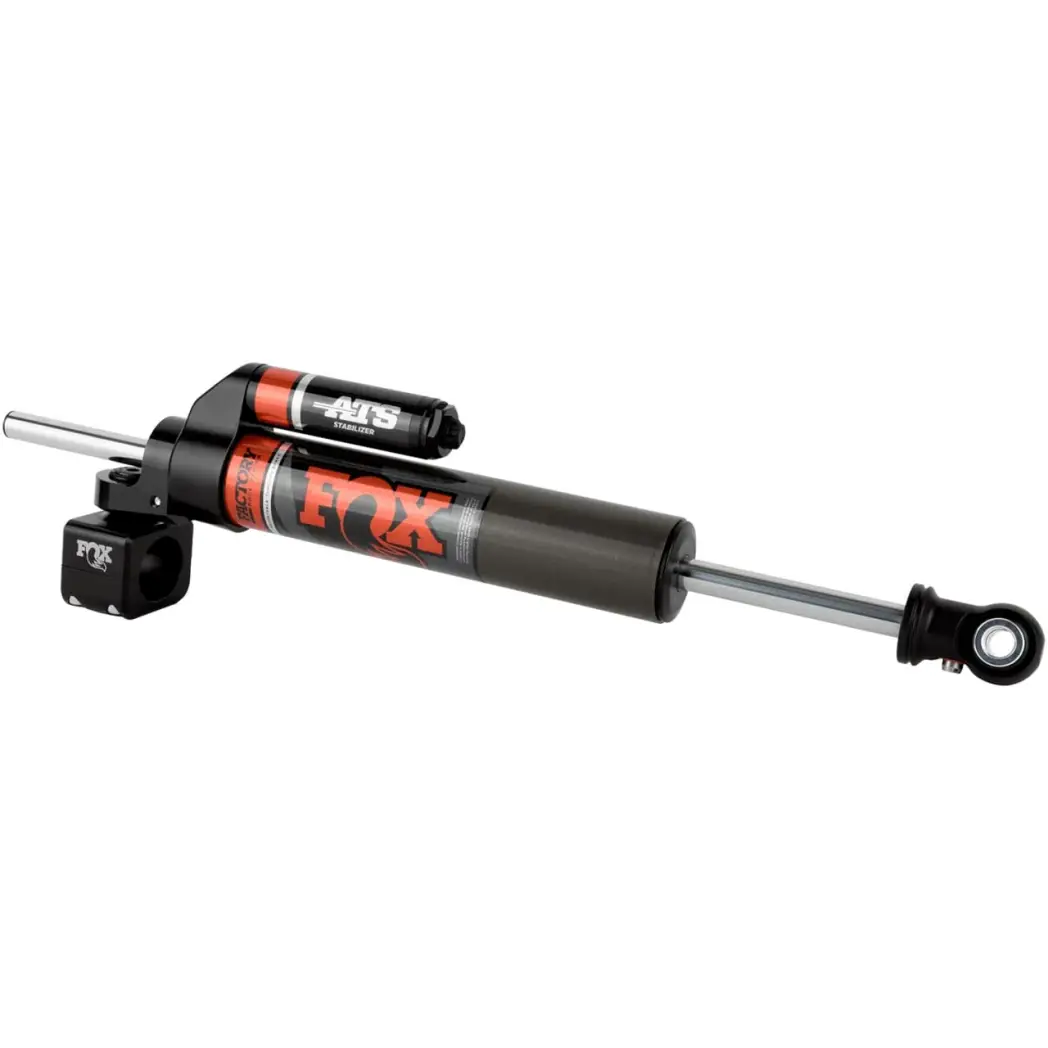

ST101 | Apex Chassis Front Steering Stabilizer Fox Race Series 2.0 Stabilizer Adjustable Through Shaft (ATS) For Jeep Wrangler JK (2007-2018)

Front Steering Stabilizer Fox Race Series 2.0 Stabilizer Adjustable Through Shaft (ATS) For Jeep Wrangler JK (2007-2018)

ST101
Pricing: $725.72
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The FOX Performance Series Adjustable Through Shaft (ATS) steering stabilizer offers unrivaled steering control and a striking high tech appearance.

The technologically advanced design cancels unwanted steering forces in both directions, taking the place of two conventional opposing stabilizers. It will also respond to your input with 24 clicks of external adjustment to fine tune the feel.

NOTE:

  • OE clamp (1 3/8") will not fit Apex steering equipment; you will have to remove OE clamp and purchase compatible clamp
  • Apex Steering kits can be paired with:
    • Apex 2.5Ton steering kits use- 2" clamp(DC2.0-Z or DC2.0-B)for Aluminum kits or 1.75" clamp(DC1.75-Z or DC1.75-B)for Steel kits to attach to tie rod adjustable sleeve.
    • Apex 1Ton steering kits use- 1.5"(DC114 or DC152) to attach to tie rod adjustable sleeve.
    • Also available is the Synergy Relocation Bolt (XP300)\
    • After installing do full lock to both sides and make sure stabilizer makes no contact anywhere
  • Where it fits:
    • Vehicle Position: Front
    • Quantity per vehicle: 1
  • What it fits:
    • Jeep JK 2007-2018
  • Warranty:
    • All warranties will be through FOX

The Special Sauce:

SPECIAL FEATURES

  • Travel (IN): 8.120
  • Compressed (IN): 14.090
  • Extended (IN): 22.200
  • Top Mount: Tie Rod Clamp
  • Bottom Mount: Eyelet

BODY

  • 2.0 inch impact extruded and CNC machined 6061-T6 clear anodized aluminum body resists rust over time

RESERVOIR

  • External reservoir design separates shock oil from the high-pressure nitrogen

COMPONENTS

  • Black-anodized, CNC-machined 6061-T6 billet aluminum

SHAFT

  • 5/8 inch hard chrome plated heat-treated alloy steel

PISTON

  • Race-developed high-flow piston design

SEALS

  • Redundant sealing pack system main seal, wiper seal, scraper seal

ADJUSTMENTS

  • Adjuster - 24 clicks of adjustability

Application List

Jeep Wrangler JK (2007-2018)

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W4.0000” x H4.0000” x L7.0000”
  • Free Ground Shipping | Exclusions Apply*
