CS-FLVL-COM-CS-17-FSP | Carli Suspension Carli Spec 2.0" IFP Front & Rear 2.5"/3.5" Lift Commuter System FSP For Ford F-250/F-350 4WD (2017-2022) | Diesel

Carli Spec 2.0" IFP Front & Rear 2.5"/3.5" Lift Commuter System FSP For Ford F-250/F-350 4WD (2017-2022) | Diesel

CS-FLVL-COM-CS-17-FSP
Availability:
Pricing: $3,105.00
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The Commuter 2.0 system is designed for the customer seeking the best on-road ride quality on a budget. Improve the ride of your daily driver with this entry level system built for comfort while keeping your wallet in mind.

  • Experience improved handling and stability with the Carli Commuter Suspension System featuring Carli-Tuned corrosion resistant 2.0 IFP shocks.
  • System includes Shocks valved specifically for use with Carli Progressive Full Spring Packs
  • NOT RECOMMENDED for use with stock leaf springs or Carli Progressive Add-a-Packs
  • System includes linear rate coil springs, front and rear shock package, brake line kit, bump stop drops, caster correction shims and adjustable track bar.
  • Increases wheel travel to 9" front and 13" rear.
  • Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.

Technical Notes

Required and Optional Parts to support this system:

  • Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 or CS-FEL-LVL-17 or CS-FTSB-LVL-17
  • Radius Arms: CS-FARA-LVL-05
  • Leaf Spring Options (REQUIRED):CS-FFSP-LVL-17 or CS-FFSP-LVL-17-HD
  • Leaf Spring Shackle: CS-FSHACKLE-11
  • Steering Stabilizer - High mount: CS-FHMSS-17
  • Steering Stabilizer - Low mount: CS-FLMSS-05
  • Trophy Hitch: CS-FHITCH-1723

Application List

Ford F-350 Super Duty (2017-2022), Diesel
Ford F-250 Super Duty (2017-2022), Diesel

Component List

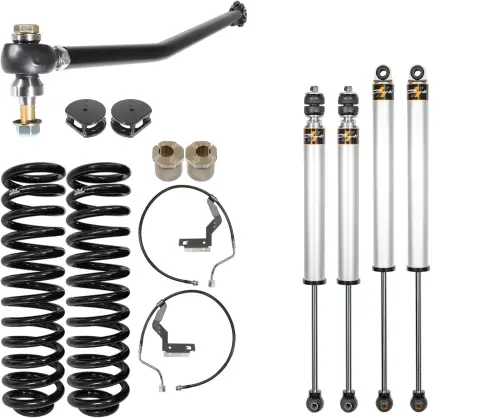

Base Kit Includes:

CS-FLC-05 Front Leveling Coils
AS-FLVLSPKG-CS20IFP-A Carli SPEC 2.0″ IFP Shocks, Front and Rear, FSP Valving
CS-FBDF-25-17 Front Bump Drops
CS-FORDBBL-LVL-17-F Front Brake Lines
CS-FCASTERSHIM-25 2° Caster Shims
CS-FATB-17 Track Bar

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 116.0 lbs.
  • W13.0000” x H37.0000” x L12.0000”
