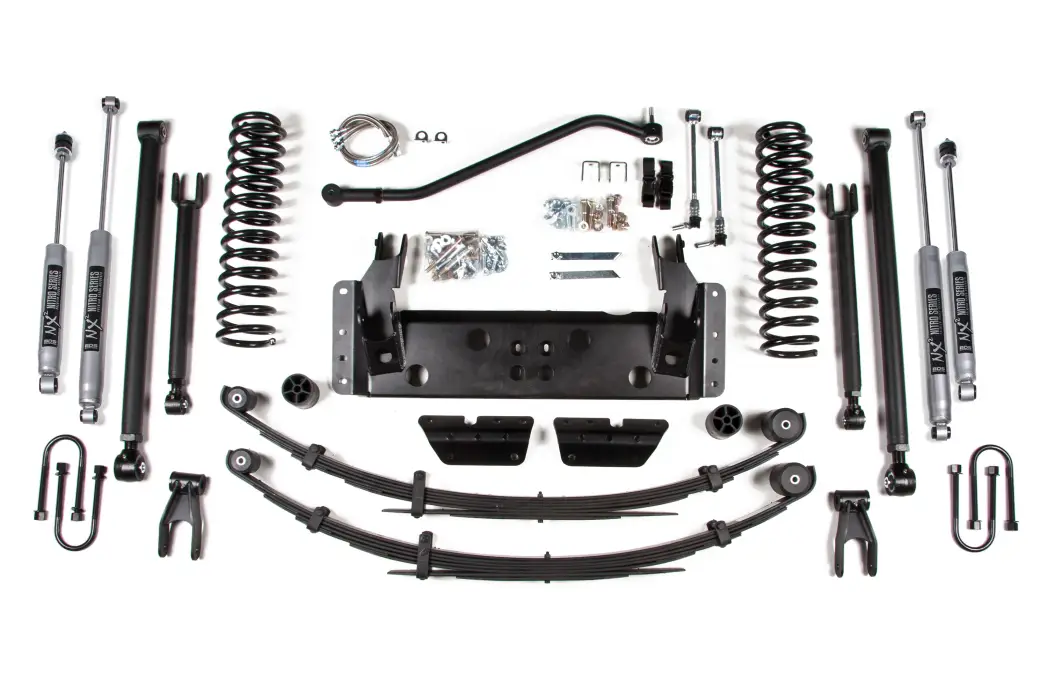

BDS1427H | BDS Suspension 4.5 Inch Lift Kit Long Arm For Jeep Cherokee XJ (1984-2001) | Rear Axle Chrysler 8.25, NX2 Nitro Series Shocks

• Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel
• ProRide coil springs offer improved ride quality and more articulation
• Massive belly pan that incorporates the link mounts and is built to smash rocks
• Glideride leaf springs to provide full lift height and increased capacity
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Front HD track bar to correctly position the front axle and control lateral movement
• Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
• Easy, 100% Bolt-on installation
• Allows clearance for 32" tires

• 32 x 11.5 with 15 x 8 and 4 in. Backspace

Long Arm Conversion

Upgrading the standard control arms to a long arm adds strength, improves handling and takes offroad articulation to the next level. This upgrade consists of massive 1/4" steel frame mounted brackets to install the oversized upper and lower formed long arms. The arms are formed for maximum tire clearance and allow the stock control arm tabs to remain on the vehicle. The upper arms are solid stock while the heavy wall tubular lower arms utilize oversized greaseable polyurethane bushings for superior road vibration isolation.

Pro-Ride Coil Springs

A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Rear Axle Option

The Jeep Cherokee was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear u-bolts to ensure that you get the correct new u-bolts. Basically, just measure the diameter of the axle or the I.D. of your rear u-bolts. Chrysler axles require 3" wide u-bolts and Dana 35 axles require 2-3/4" wide u-bolts. Some 1987-90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Important Notes

1. Measure the rear u-bolts before ordering. Some XJ's are equipped with a Dana 44 rear axle.
2. CV style rear driveshaft (not included) and slip yoke eliminator kit is required.
3. System only works with 4.0L motor and automatic transmission.
4. '96 and earlier models may require a longer emergency brake cable.
