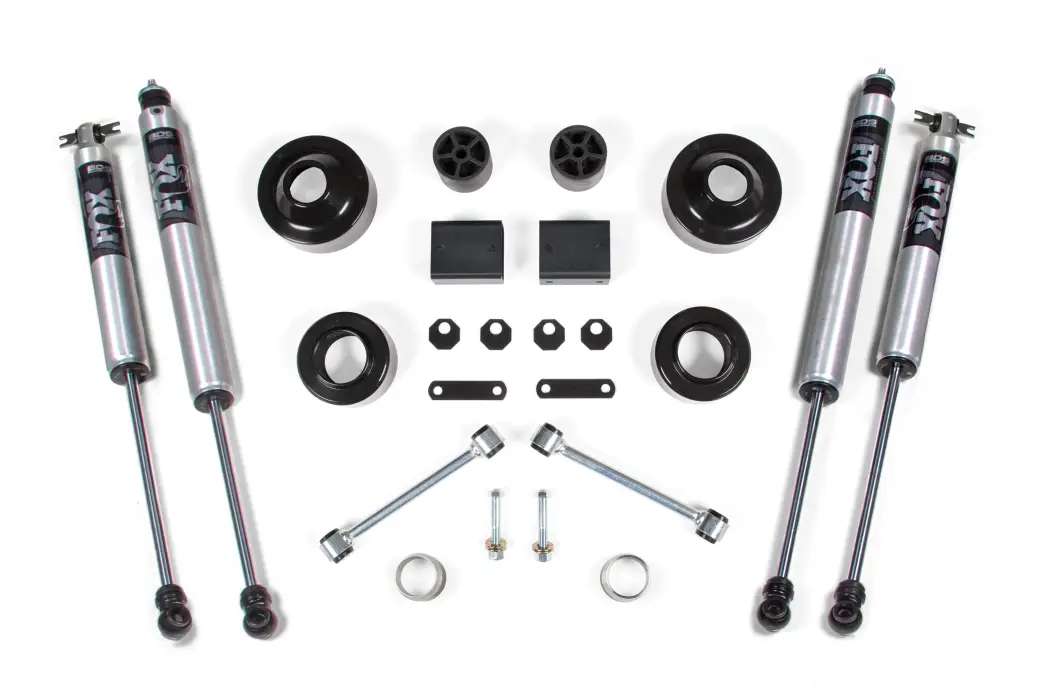

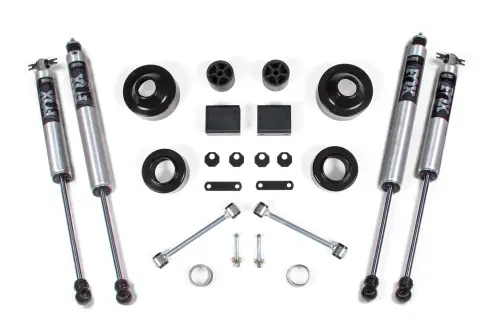

BDS1429FS | BDS Suspension 2 Inch Lift Kit With Coil Spacer For Jeep Wrangler JK 2 Door (2012-2018) | Fox 2.0 Performance Series Shocks

• Urethane coil spacers maintain factory ride
• Lower cam locks to correct caster for alignment
• Bump stop spacers to prevent harsh bottom outs
• Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
• Allows clearance for 33" tires

• 33 x 12.5 with 17 x 9 and 4.5 in. Backspace

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Important Notes

1. Removing the OE spring isolators will result in a 1" lift if desired.
2. 124408 rear track bar or 124308 rear track bar relocation is recommended if using factory wheels
3. This kit is FMVSS No.126 Compliant

Installation

Specification
