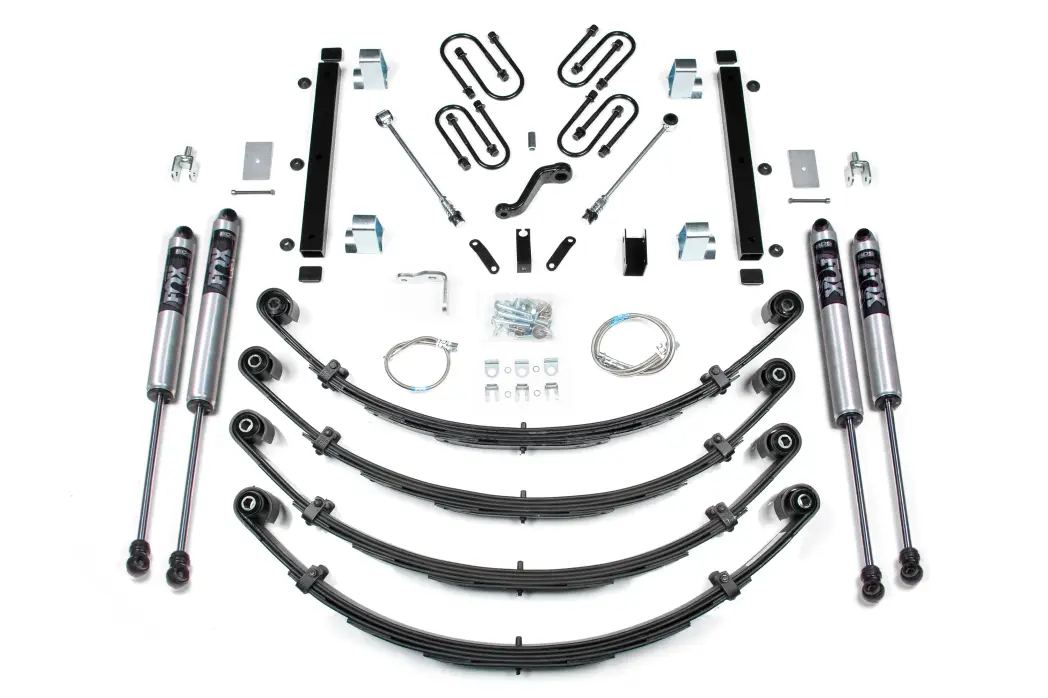

BDS1431FS | BDS Suspension 5 Inch Lift Kit For Jeep Wrangler YJ (1987-1995) | Fox 2.0 Performance Series Shocks

• Glideride leaf springs to provide full lift height and increased capacity
• Front and rear track bar relocation brackets to center the axle
• Transfer case drop kit to ease the drive line angles
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Easy, 100% Bolt-on installation

• 33 x 12.5 with 15 x 8 and 3.5 in. Backspace

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Important Notes

1. May require a larger diameter driveshaft if equipped with a 41-1/2" front driveshaft.
2. A slip yoke eliminator and dual cardan style rear driveshaft is required.
3. Extended shackles are recommended to clear the military wraps on the springs.
4. Pitman arms will NOT fit YJ models equipped with manual steering.
