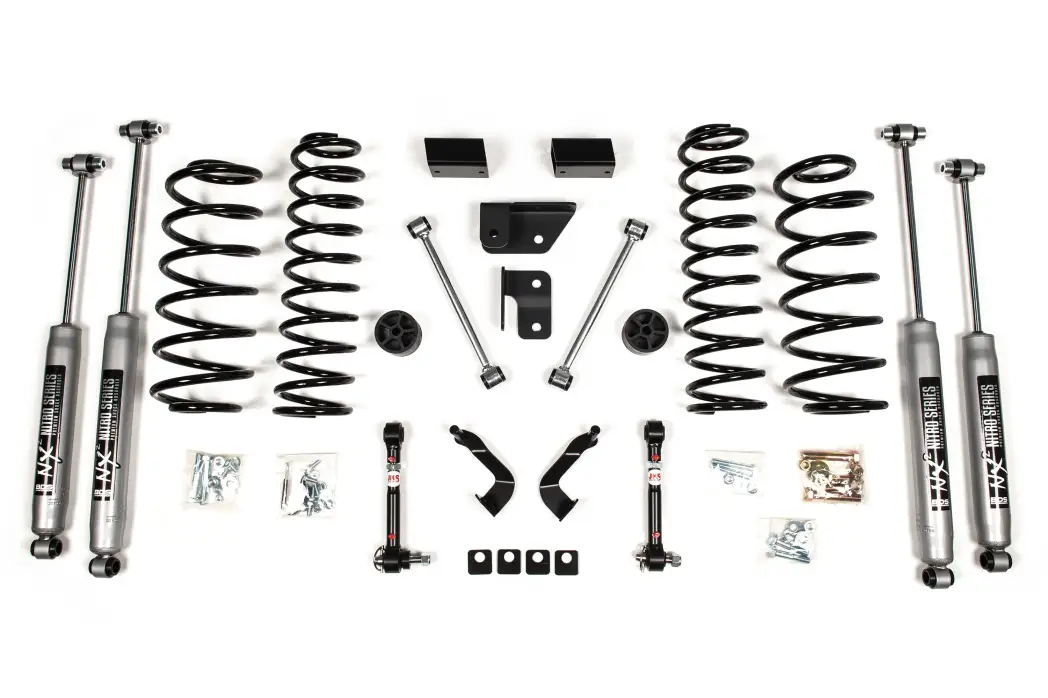

BDS1435H | BDS Suspension 2 Inch Lift Kit For Jeep Wrangler JL 4 Door (2018-2025) | NX2 Nitro Series Shocks

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Front track bar relocation bracket to correctly position the front axle
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment
• Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
• Allows clearance for 35" tires

• 33 x 12.5 with 17 x 9 and 4.5 in. Backspace

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Series

• 2.5-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• Increased oil capacity of the shock allows for more heat dissipation.
• Provides less damping fade and more bottom-out control at higher speeds.
• Fully serviceable and resistant to corrosion and harsh environments.
• 1-year Manufacturer's Warranty

Important Notes

1. Non-Rubicon comes from the factory at a lower ride height, and will net slightly over 2" - final stance is the same for all models
2. Stock wheels cannot be reinstalled without spacers due to rear sway bar interference.
3. Will not fit 4xe models.
4. Will not fit Rubicon 392 models.
5. Does not fit Diesel models
