ROCKER GUARDS - SPRINTER 4X4 (2015-2022 170" WHEELBASE ONLY) by VAN COMPASS

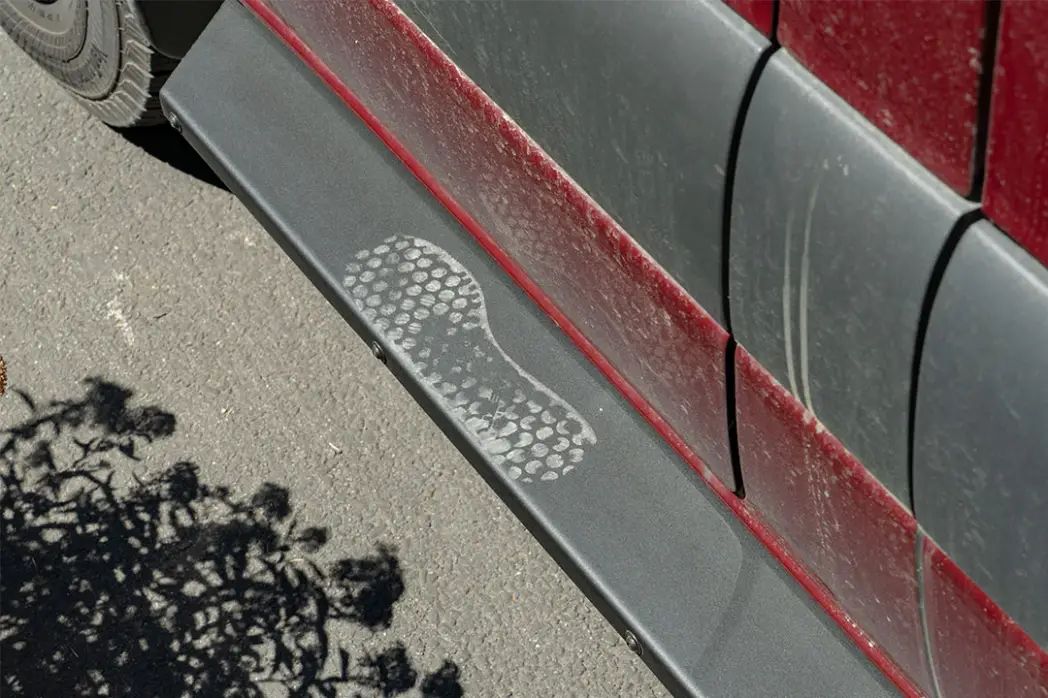

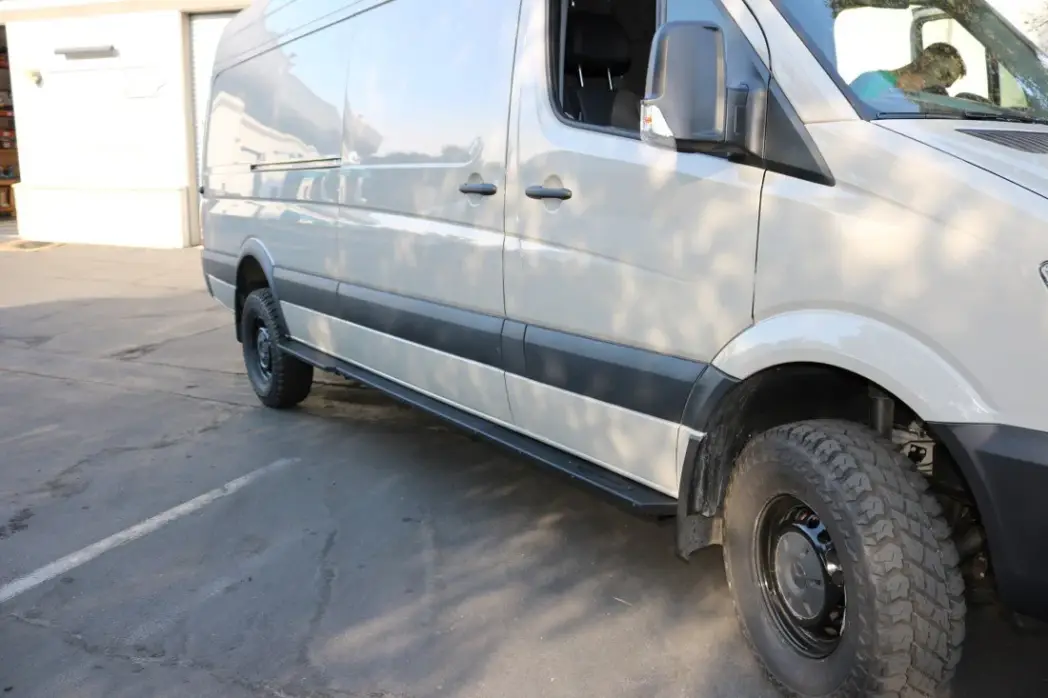

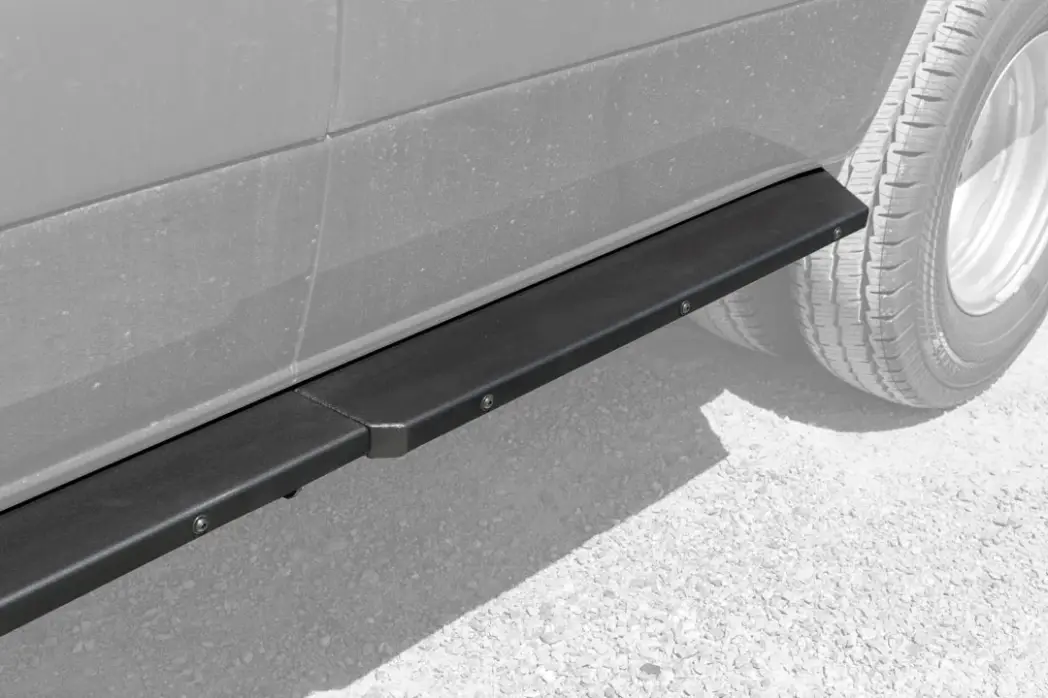

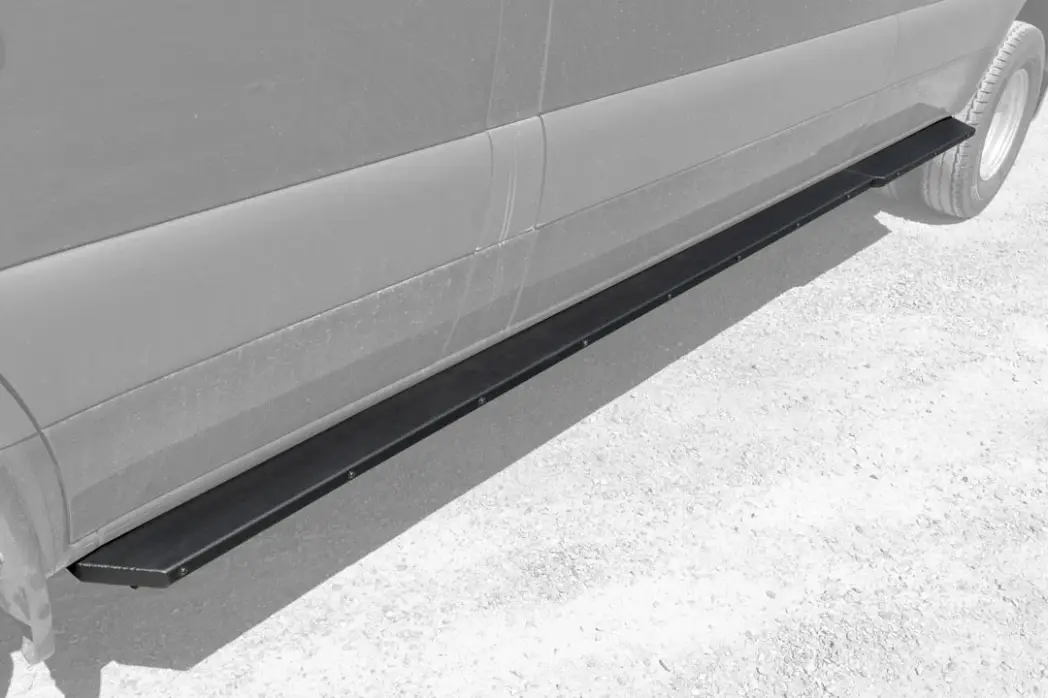

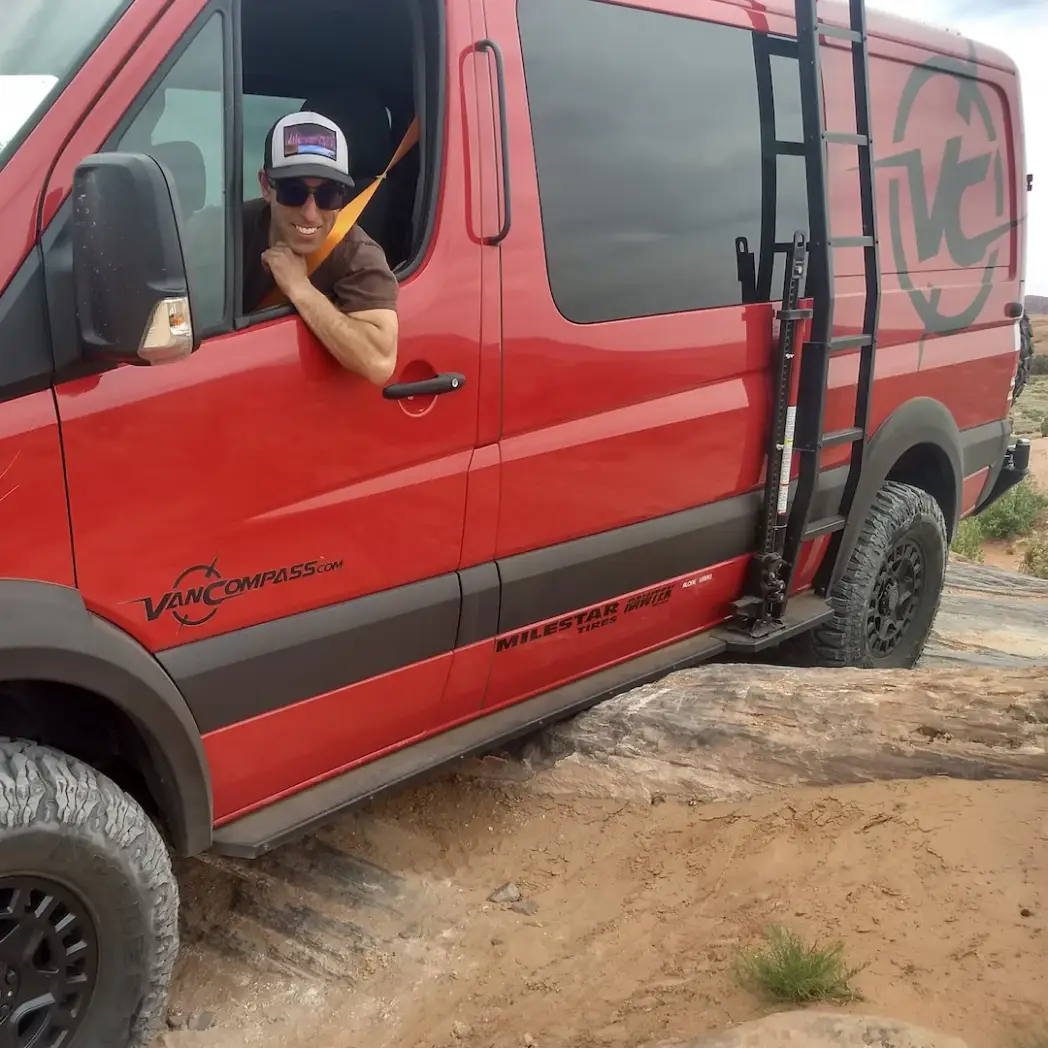

More than just a step! Add functional protection, chassis rigidity and ease of access to your 170" wheelbase 4x4 Sprinter in sleek style with a set of Van Compass Rocker Guards. Our signature stealth design cues create an attractive 4" wide step to make getting in and out of your van more convenient, and the rear portion features an additional 1" of width for additional protection on tight trails. This robust design offers excellent body protection and adds easy to access vehicle lifting points. Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely.

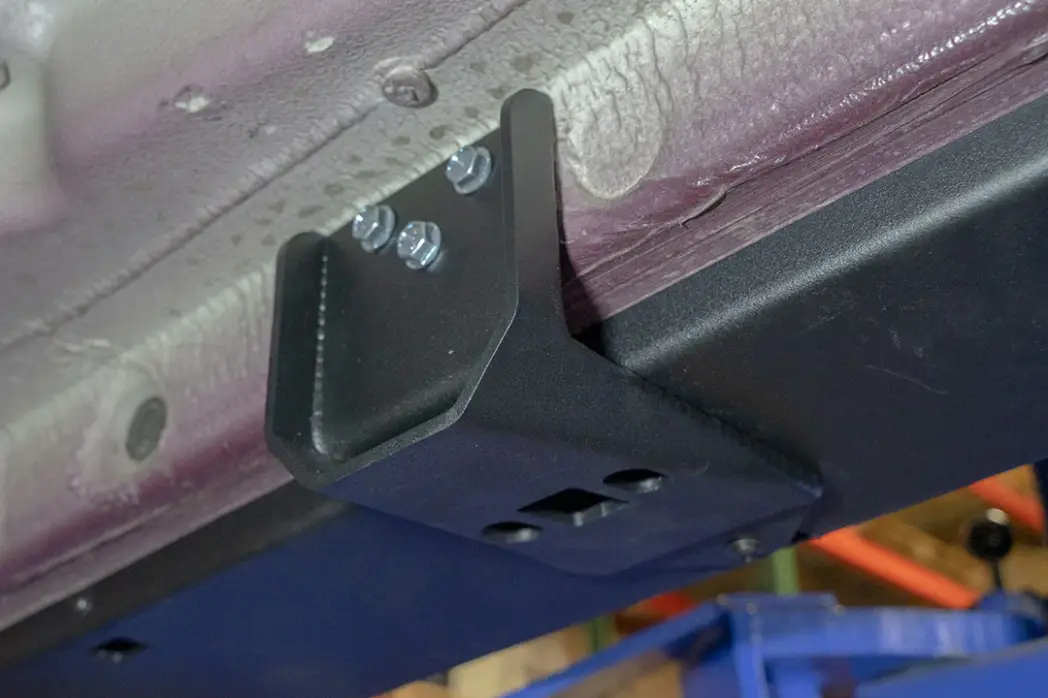

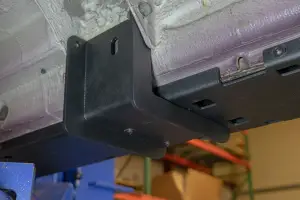

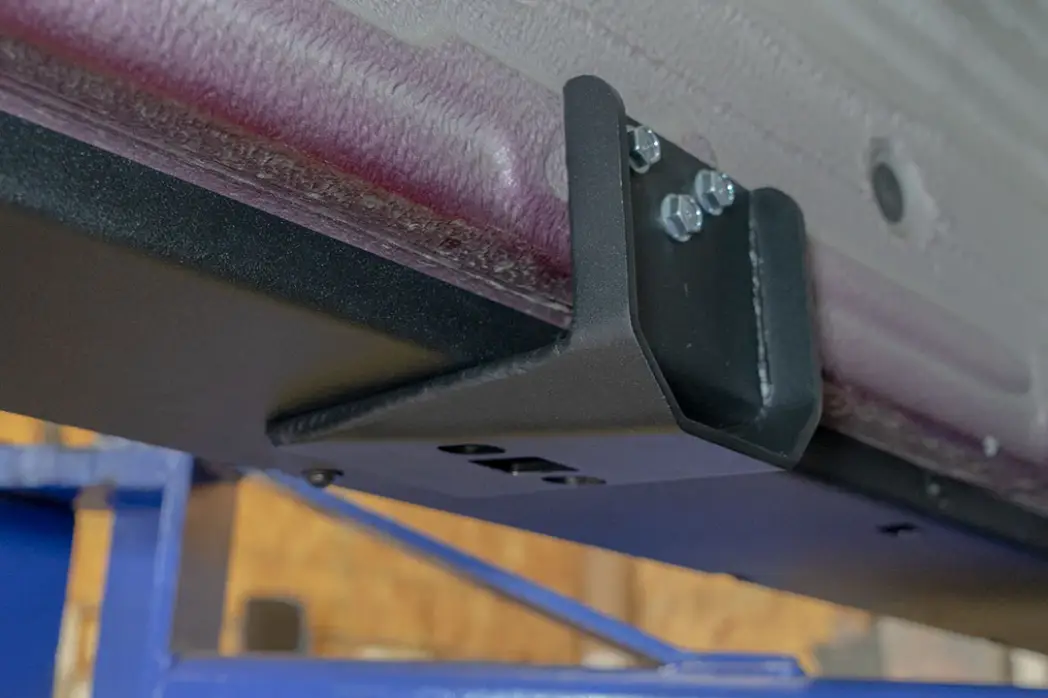

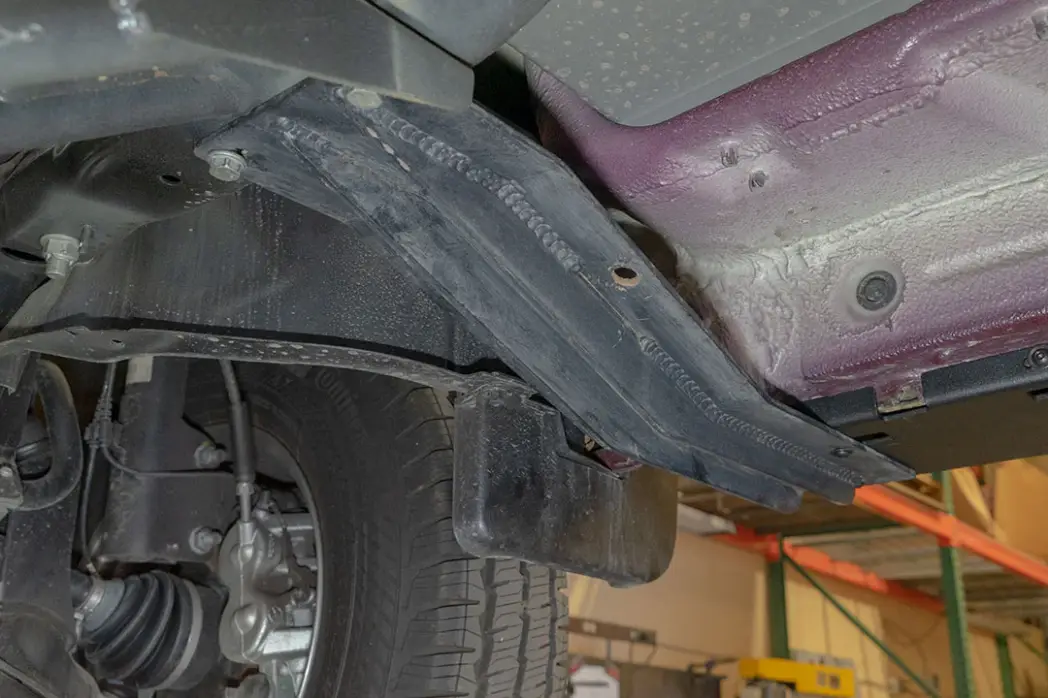

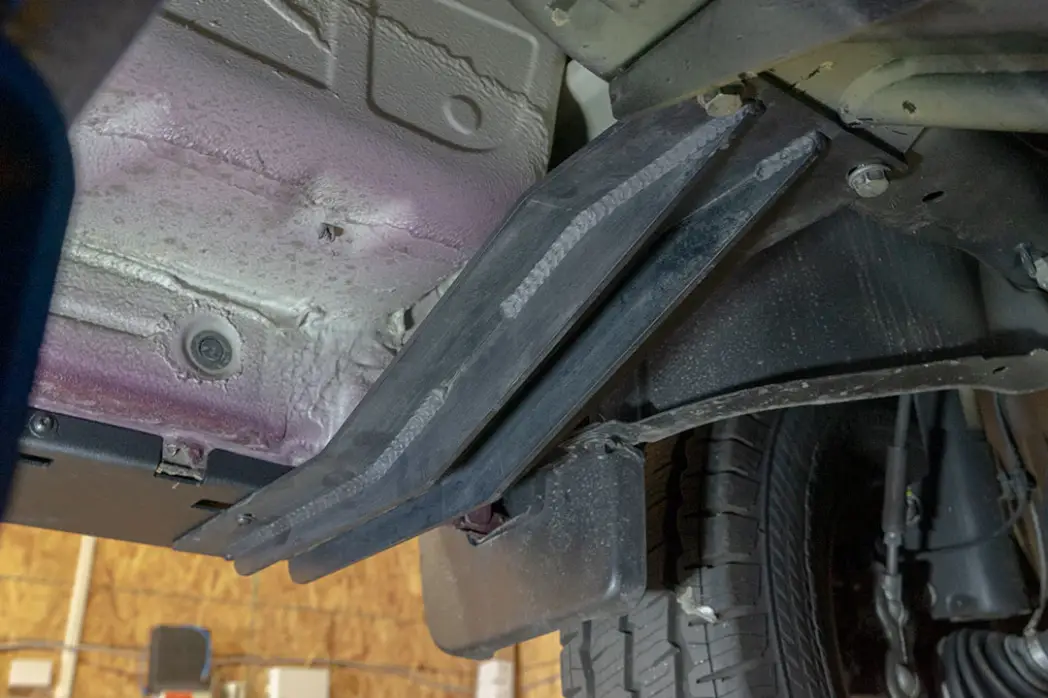

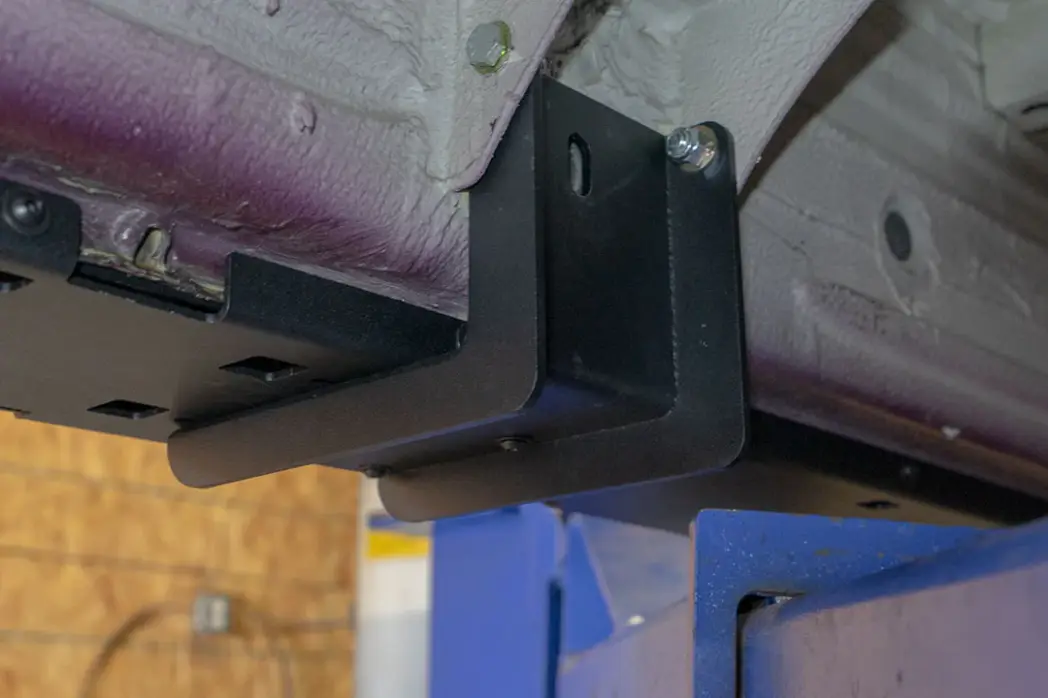

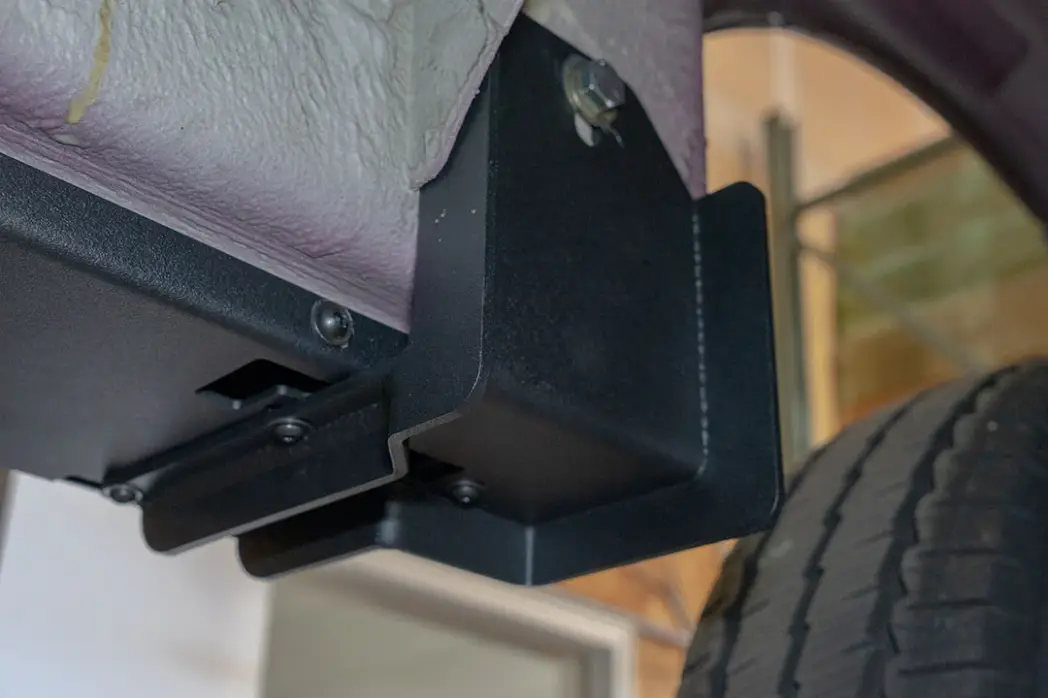

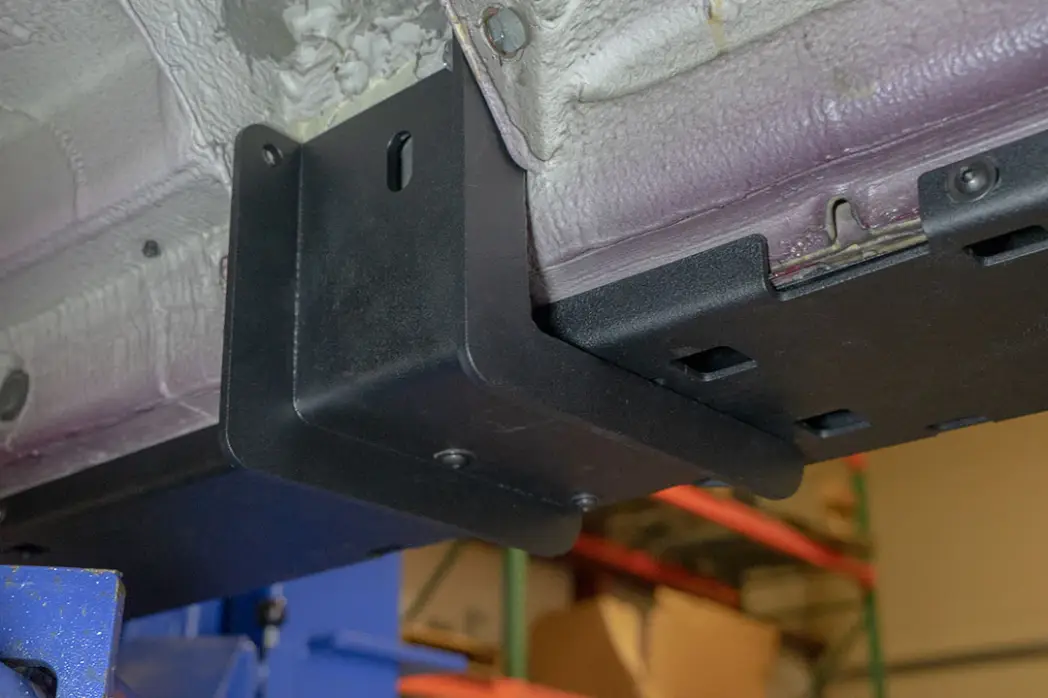

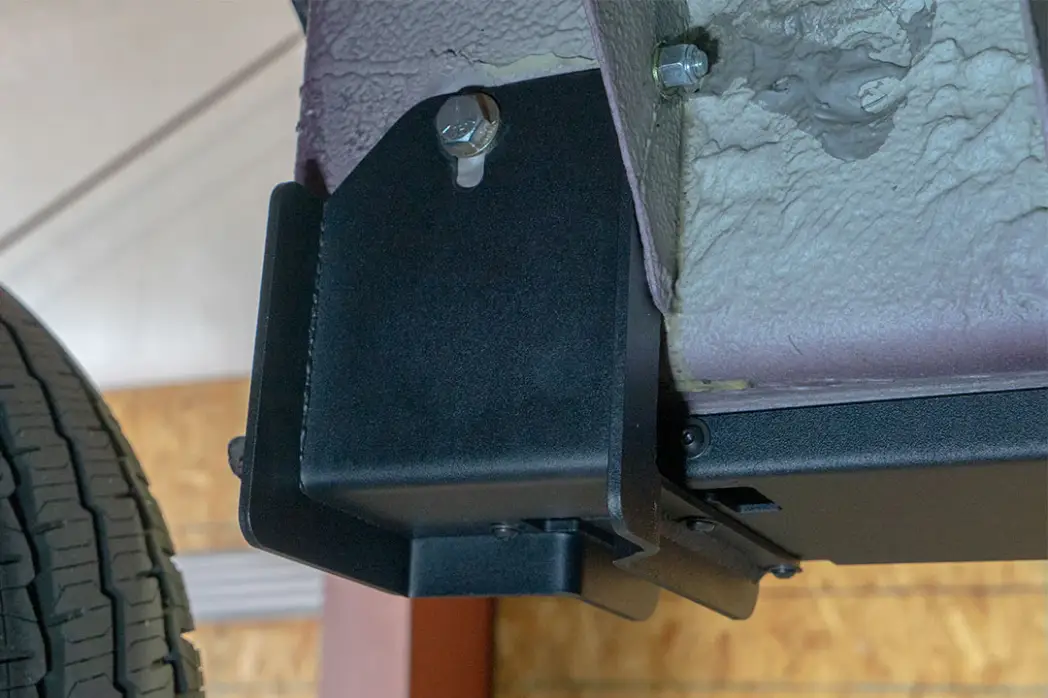

The main step surfaces are constructed from 1/8" steel and attach to the pinch seam with stainless steel hardware. Frame mounts are constructed from 3/16" steel and are attached in three locations directly to the vehicle's chassis. This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle. Drilling of holes at the pinch seam and under body gussets are required for installation. Please specify your van's lift height when ordering, the front subframe tie ins are specific to lifted and non-lifted vans. Vans with a 2" Van Compass lift require a unique mount, all other known variations use the 'non-lifted' version.

Step Surface Width: 3.5-4" (van body has slight taper at front door sill); 4.375" at rear kick out with doors closed.

Included Components
