4102-3500 | Van Compass Engine Skid Plate2 Inch Van Compass Lift (2023-2025 Sprinter 3500 AWD)
2023-2025 Mercedes Benz Sprinter 3500 AWD | Stock Height
Description
ENGINE SKID PLATE - SPRINTER AWD (2023+ 3500) by VAN COMPASS

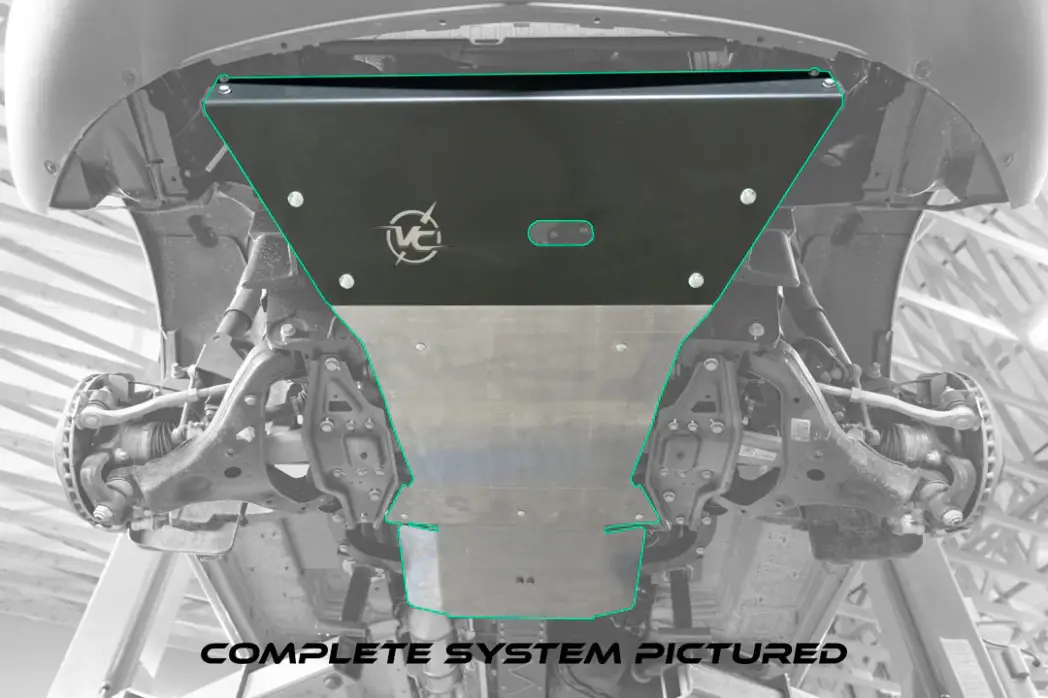

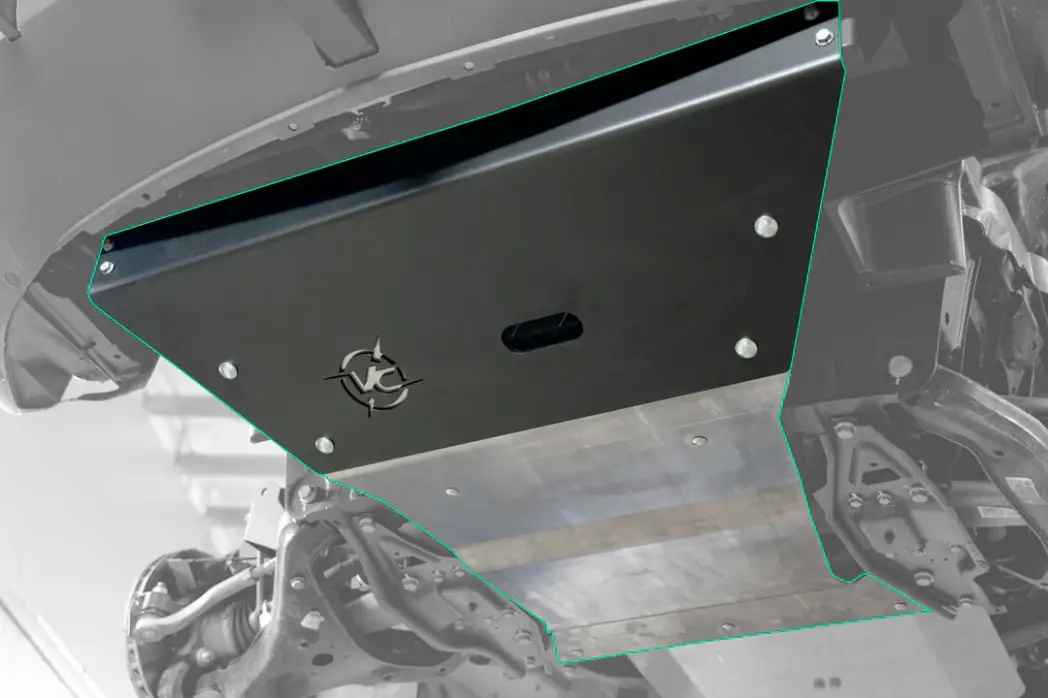

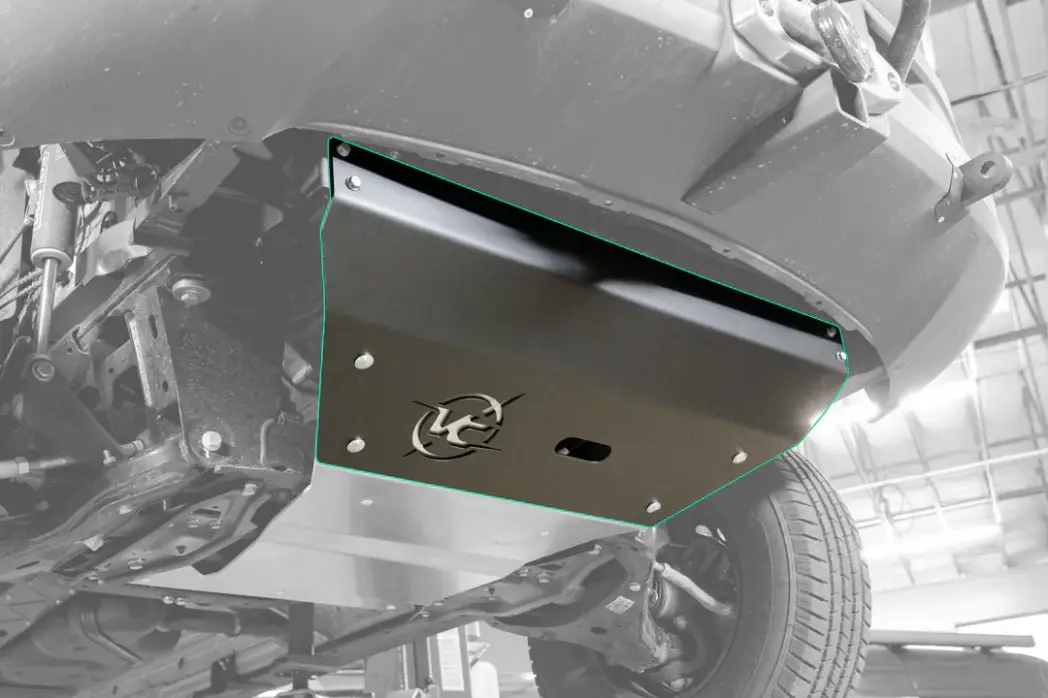

Explore with confidence in your AWD Sprinter with the Van Compass Engine skid plate. Designed to create a strong, smooth surface to slide over or bash into. The skid plate protects your vital drivetrain components when off-road situations get a little out of hand. Made of 1/4" thick 5052 Aluminum and 3/16" high strength steel. The skid system is 100% bolt on with all the hardware provided. Engine oil changes can be performed without removal of skid system. For additional protection add the transmission/transfer case skid plate and fuel tank skid plate!
With the release of the AWD Sprinter chassis in 2023, Mercedes changed the front subframe of the Sprinter and adapted a new powertrain to fit. This skid part number is specifically fit to the 2023+ AWD models with 4-cyl diesel and 9-speed auto transmission, and includes the over run mounts required to mount our skid plates (usually missing on a 3500).

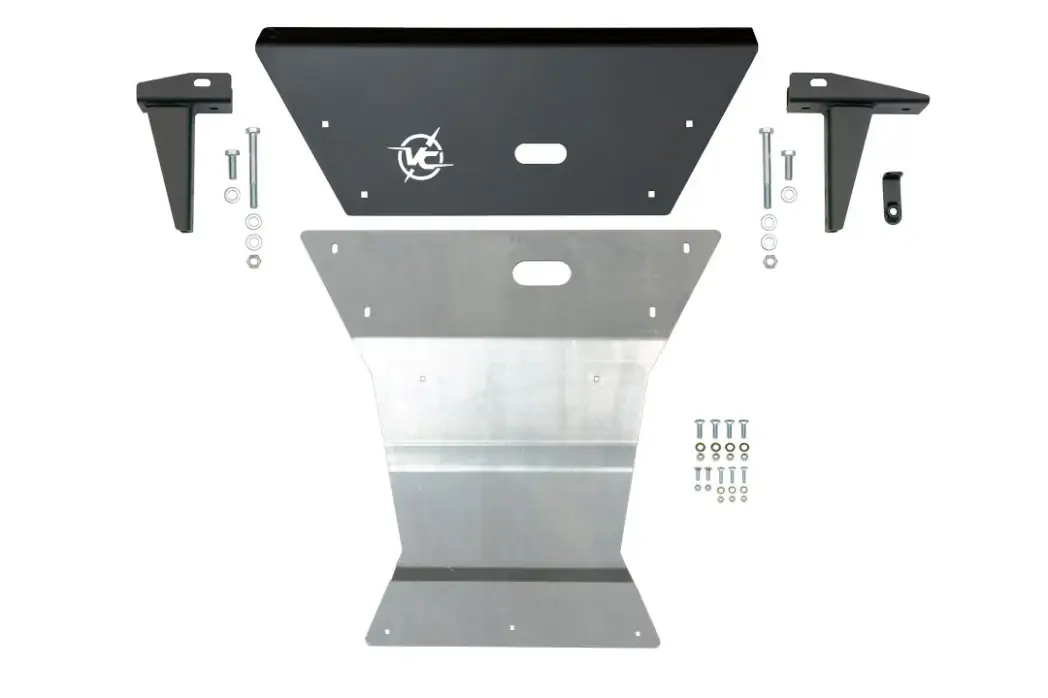

Included Components
- 3/16" Steel Front Bash Plate, Black Powder Coat finish for corrosion protection
- Engine Skid Plate - 1/4" 6061 T-6 Aluminum
- Left and Right Over-Run mounts (typically missing on a 3500)
- All necessary hardware
- Total installed weight 55lbs
Fitment Guide
- Model: SPRINTER 3500
- Year: 2023-PRESENT
- Drive Type: AWD
- Note: 4102 2" lifted version is ONLY compatible with Van Compass 2" lift kit. Agile and other brands utilize non lifted part.
Labor Times
- Recommended Shop Labor Time: 1.5 Hour
Application List
Details
- 4102-3500
- 4102-3500
- 810185263301
- Van Compass
- New
Categories
Shipping Information
- Item Requires Shipping
- 90.0 lbs.
- W21.0000” x H5.0000” x L41.0000”
