K307 | Superlift 4-5 inch Suspension Lift Kit wtih Shadow Shocks (1989-1995 Pickup 4WD | Short Bed, Std Cab)

1989-1995 Toyota Pickup 4WD | Short Bed Standard Cab Models ONLY

K307
Pricing: $1,528.99
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This is a complete knuckle spacer style lift kit for the 1989-1995 Toyota standard cab short bed pickup 4WD
Provides 4” to 5" adjustable lift height
Includes rear blocks, front and rear Superlift shock absorbers

What does it include?

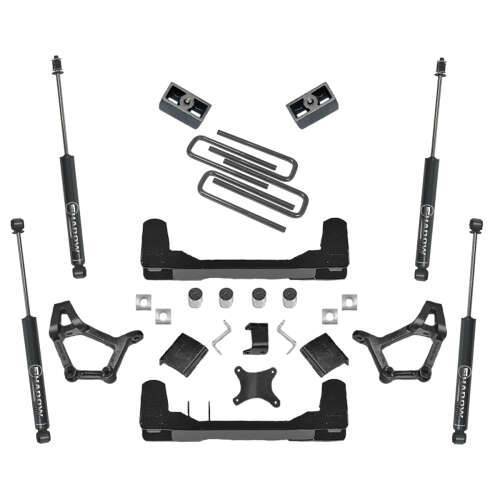

All brackets, cross-members, knuckles, shocks, rear block and u-bolt kit, and hardware required specific to the 1989-1995 Toyota Pickup Short Bed Standard Cab Models Only.
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Features:
Full-width differential / lower control arm crossmembers provide lateral rigidity.
Precision cast steering knuckles included.
Load bearing bracketry made of .25" thick steel plate and/or heavy wall rectangular tubing.
Front and rear Superlift shocks included.
Includes front brake hose relocation hardware.

Notes:
Installation time: 7 hours
Difficulty level: 3 of 5

Application List

1986-1995 Toyota Pickup 4wd

* Short Bed Standard Cab ONLY

Tires & Wheels

Tire Wheel Backspacing Offset
33 x 12.5 - 3.75 -



IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Details

  • K307
  • K307
  • 804260021443
  • SuperLift
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 126.6 lbs.
  • W18.0000” x H24.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
