27270 | 6 Inch GM NTD Suspension Lift Kit w/ V2 Monotube Shocks

Chevrolet, GMC | 1999-2006 Silverado 1500 4wd | 1999-2006 Sierra 1500 4wd

27270
Pricing: $1,773.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

We've raised the bar on our 6" NTD suspension for '99 - '06 Chevy/GMC 1500 pickups! Gain greater clearance, better handling, and the cleanest looking 6-inch lift available! A set of lifted front knuckles and 6.25in rear fabricated, anti-wrap blocks allow your 1500 to run up to 35in tires, while a full set of high clearance drop crossmembers, differential drop brackets and non torsion bar drop brackets keep everything tucked, hidden, and at optimum angles. This fully loaded suspension lift also includes a set of (4) Premium N3 Shocks, front CV spacers, sway-bar links, and a protective skid plate to give you everything you need to get rolling in one of our best kits, now at our best price ever!

FEATURES
Torsion bars stay in factory location
Redesigned for easier installation
Maintains factory ride quality
Applicable with Auto Trac equipped models
Unmatched ground clearance
Axles maintain factory position and angle
No drivetrain or exhaust modifications required
Designed to reuse factory compression travel stops
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

NOTES - IMPORTANT
Will fit 2007 "Classic" models.
Does NOT fit HD models.
Does NOT fit 1999 "Classic" models.
Frame bracket modification required
Differential modification required
Models equipped with a factory painted bumpers will require trimming to valance and bumper.
New fabricated lift block replaces your factory equipped block.
If equipped with factory 17" wheels and purchasing new wheels - the new wheels must be 17" or larger.
Torsion bar unloading tool required for installation. Available below (#1067)

SPECS
SKU 27270
Est. Install Time 8 - 10 hours

Vehicle Applications

1999 - 2006 Chevrolet Silverado 1500
1999 - 2006 GMC Sierra 1500

NOTES - IMPORTANT
Will fit 2007 "Classic" models.
Does NOT fit HD models.
Does NOT fit 1999 "Classic" models.
Frame bracket modification required.
Differential modification required.
Models equipped with a factory painted bumpers will require trimming to valance and bumper.
New fabricated lift block replaces your factory equipped block.
If equipped with factory 17" wheels and purchasing new wheels - the new wheels must be 17" or larger.
Torsion bar unloading tool required for installation.
Available here! SKU: 1067

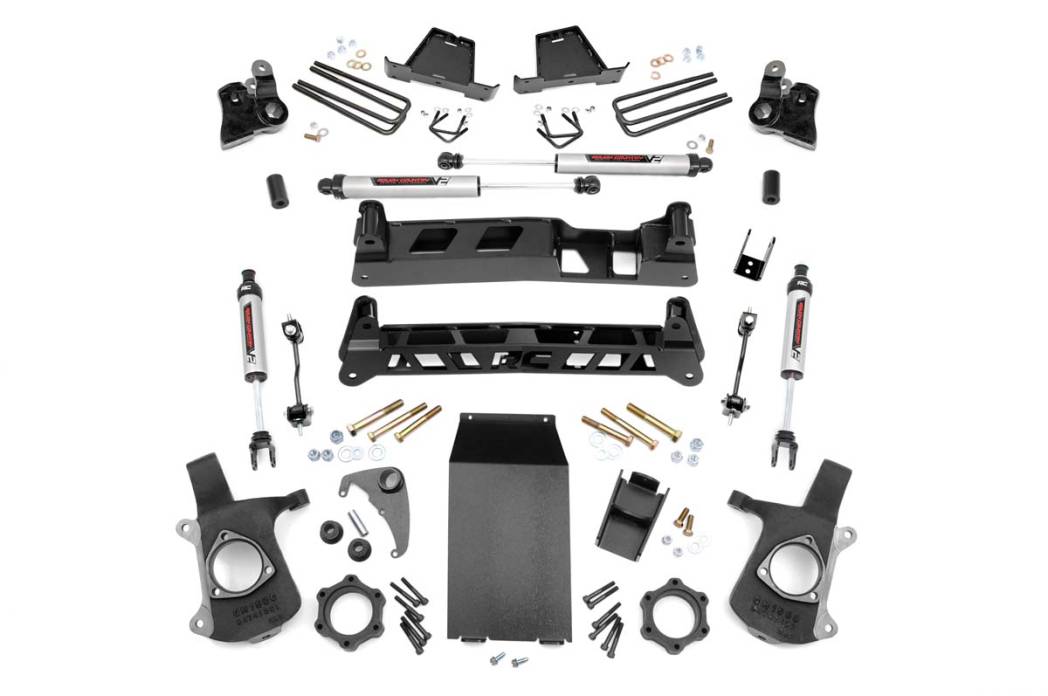

Components

FRONT
Lifted knuckles
Front crossmember
Rear crossmember
Non-torsion bar drop brackets
Differential drop brackets
Sway-bar links
CV spacers
Skid plate
Hardware

REAR
6.25in fabricated lift blocks
U-bolts
Hardware

SHOCKS
(4) V2 Monotube

Tires & Wheels

315/75 R16 16x8 4.5in -
315/70 R17 17x9 5in 0mm
315/65 R18 18x9 5in 0mm
315/55 R20 20x9 5in 0mm

1 Models equipped with Factory 17-inch wheels cannot run smaller 16-inch wheels without checking for rotor/caliper clearance
2 If using wheels with -12mm offset or 4.5-inch backspacing, some minor inner fender trimming will be required

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
