4031 | Van Compass Rocker Guards 148 Inch Wheelbase (2015-2024 Transit 2WD/AWD)

2015-2024 Ford Transit 150, 250, 350 2WD/4WD | 148 Inch Wheelbase ONLY

4031
Not Available
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $3,308.20

Description

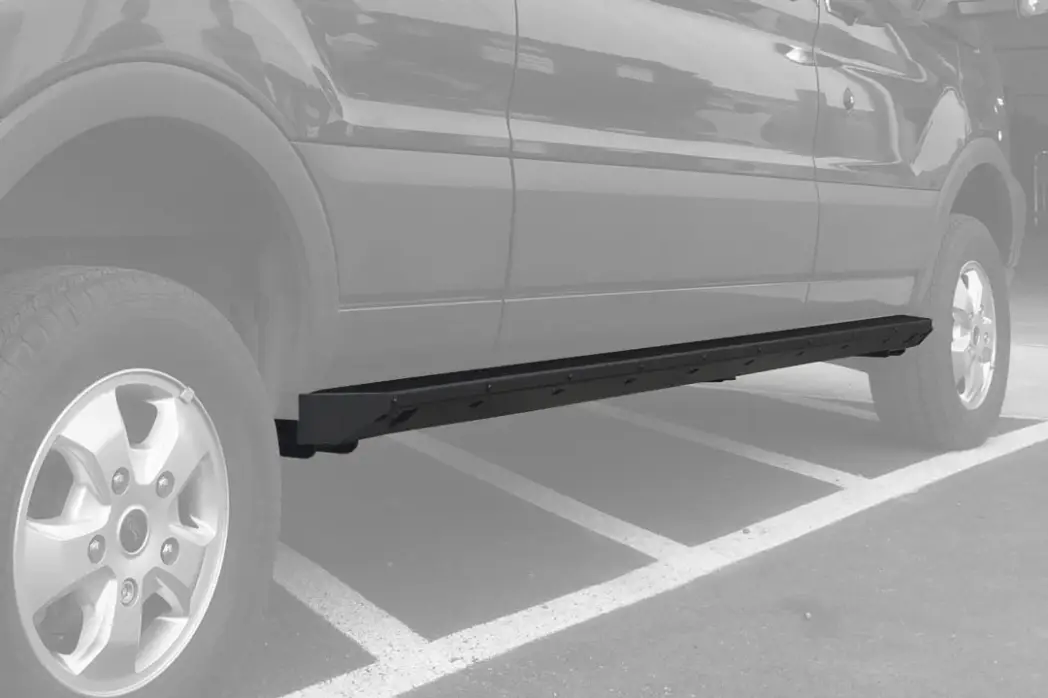

ROCKER GUARDS - TRANSIT (2015+ 148" WHEELBASE ONLY) by VAN COMPASS

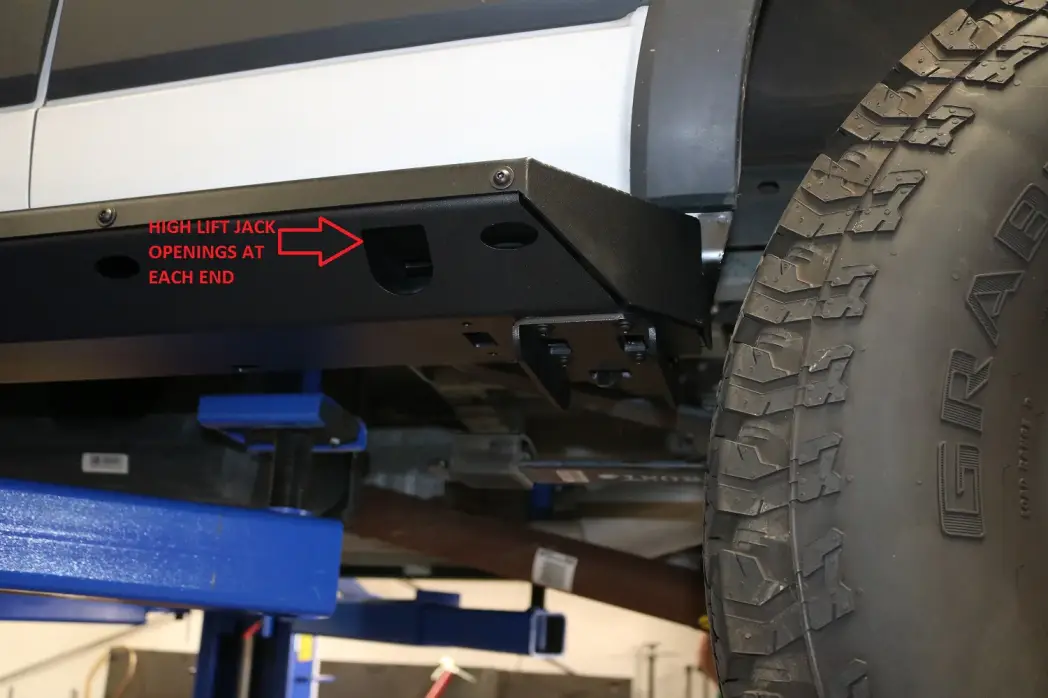

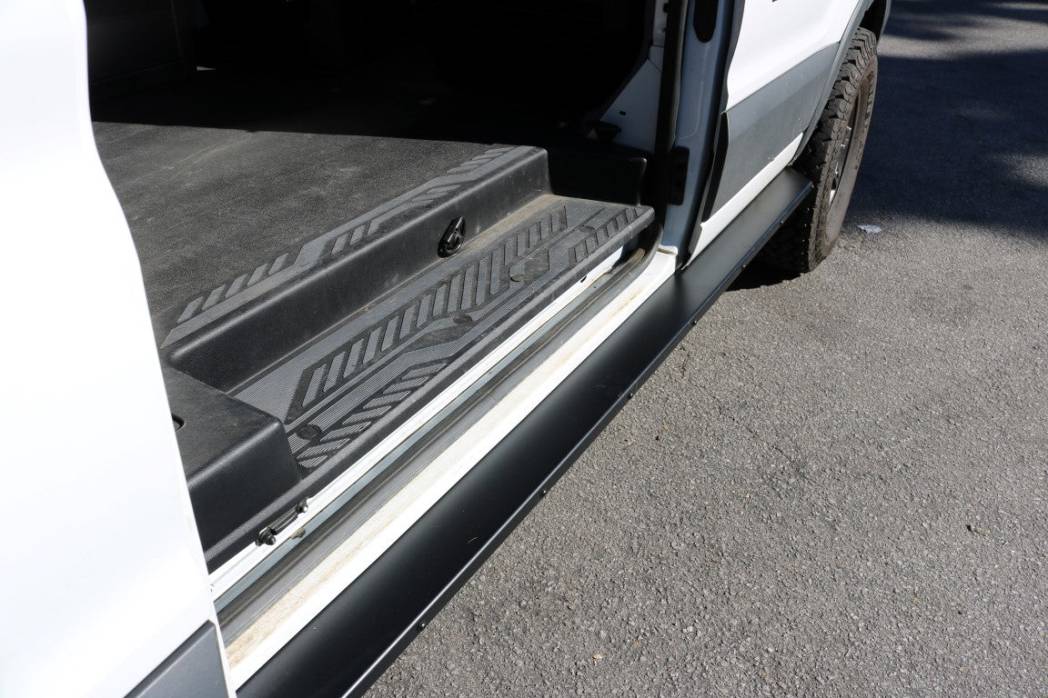

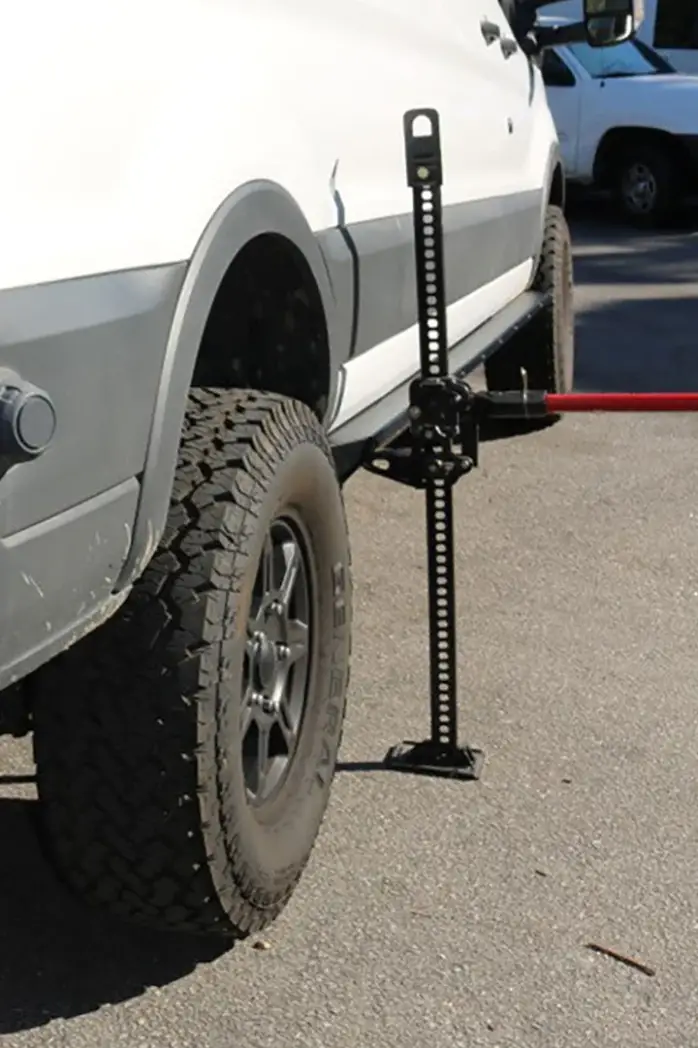

More than just a step! Add functional protection, chassis rigidity and ease of access to your 148" wheelbase Transit in sleek style with a set of Van Compass Rocker Guards. Our signature stealth design cues create an attractive 4" wide step to make getting in and out of your van more convenient. This robust design offers excellent body protection and adds easy to access vehicle lifting points. Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely.

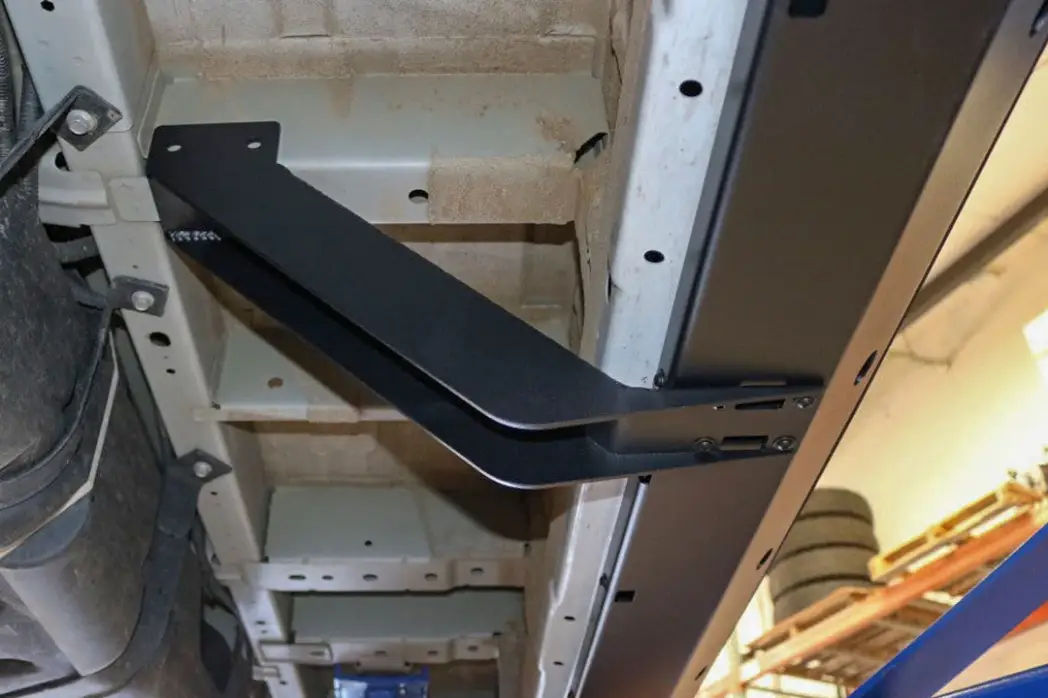

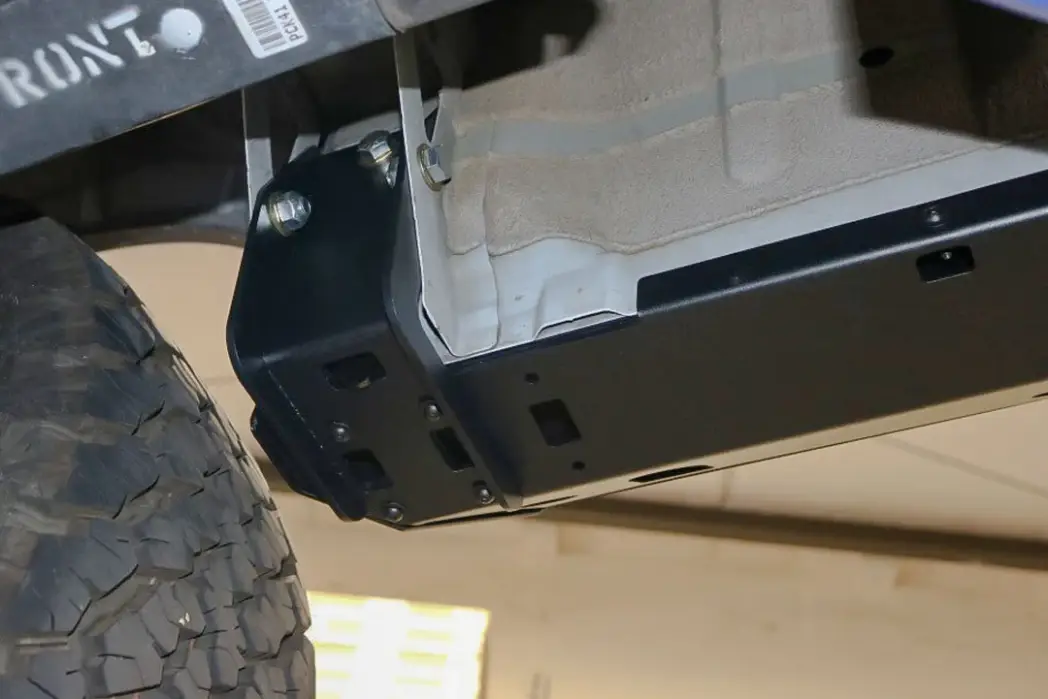

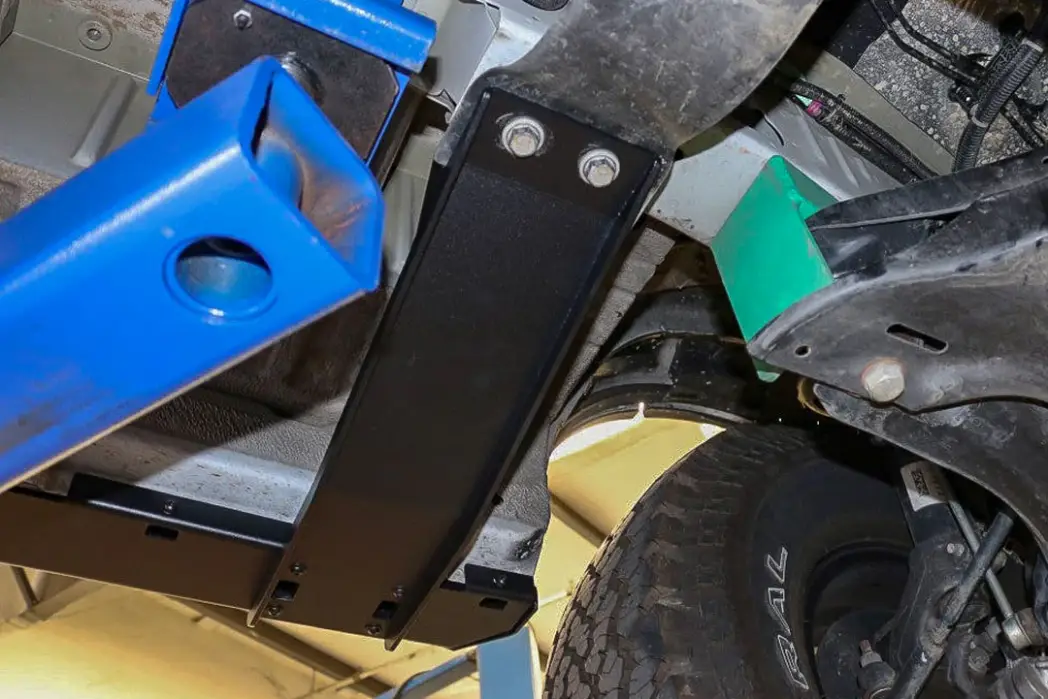

The main step surfaces are constructed from 1/8" steel and attach to the pinch seam with stainless steel hardware. Frame mounts are constructed from 3/16" steel and are attached in three locations directly to the vehicle's chassis. This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle. Drilling of holes at the pinch seam and under body gussets are required for installation. Fits both 2WD and AWD vans, can compatible with or without our lift kit.

Step Surface Width: 3.5" with doors closed

INCLUDED COMPONENTS

  • Rocker Guard step plates, 1/8" Steel, Black Powdercoat
  • Front, Middle and Rear Chassis Tie In Brackets, 3/16" Steel, Black Powdercoat
  • Stainless Mounting hardware with AL2000 black finish for step plates

FITMENT GUIDE

  • MODEL: TRANSIT, 148" WHEELBASE ONLY
  • YEAR: 2015-PRESENT
  • DRIVE TYPE: AWD and RWD

LABOR TIMES

  • Recommended Shop Labor Time: 4 Hours

*** These ship in a very long crate, non-commercial address may be subject to additional delivery fees. ***

Application List

2015-2024 Ford Transit 150 2WD/4WD
2015-2024 Ford Transit 250 2WD/4WD
2015-2024 Ford Transit 350 2WD/4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W17.0000” x H17.0000” x L80.0000”
  • $250.00
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
