447632 | Baja Designs S8 30 Inch Grille LED Light Bar Kit For GMC Sierra 2500 HD / 3500 HD | 2018-2019

S8 30 Inch Grille LED Light Bar Kit For GMC Sierra 2500 HD / 3500 HD | 2018-2019

447632
Pricing: $1,428.85
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Looking for the ultimate lighting kit for your GMC HD? Look no further! The S8 30-Inch Grille Light Bar Kit with backlighting is the ticket for you, it includes everything you need, the light, wiring harness, and mounts. The S8 bar emits 19,050 lumens via 24 Cree LEDs. All with a low amp draw to put less strain on your battery. A clean aluminum frame with scalloped housing, machined aluminum bezel, and stainless steel hardware protects the circuity from water or debris. The LEDs last nearly 50,000 hours while being fully waterproof and exceeding mil-spec testing for reliability.

The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).

This kit is perfectly concealed behind the grille, and mounting the light doesn’t require any drilling or modifications to your vehicle.

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

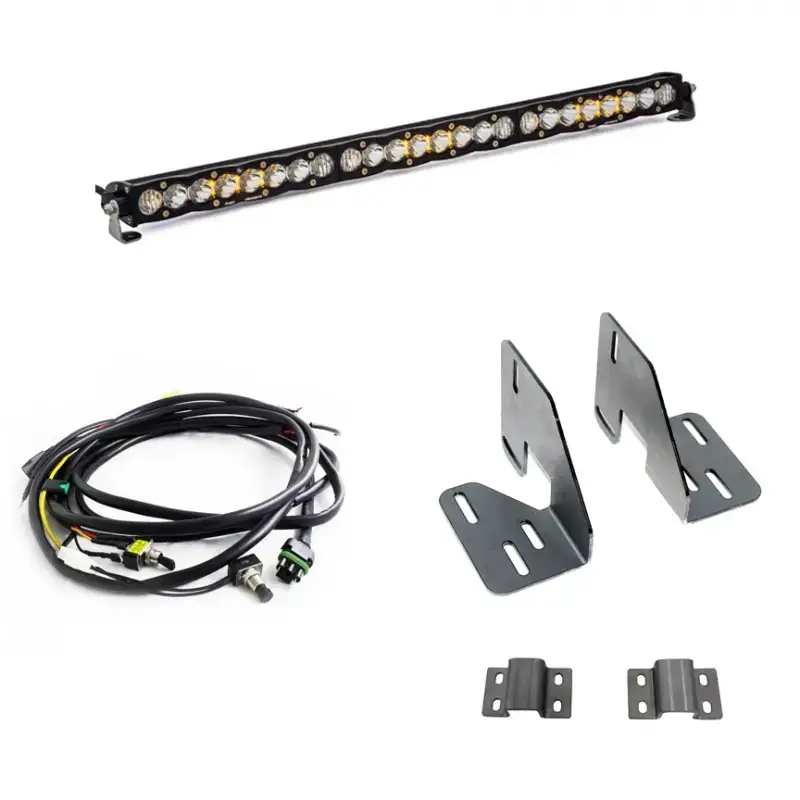

INCLUDED WITH KIT:

SKU: 703003

Dimensions

Depth (in.) 3
Height (in.) 1.6
Length (in.) 30
Weight (lbs.) 6.5

Specifications

Amperage Rating (A) 12.0
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 19,050
Description Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam/Amber Backlit Feature
Lighting Quantity 24
Lighting Type Cree LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S8 30 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 180
Wiring Harness Included No

Standards & Compliance

Patent No. D780,964
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)



DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

GMC Sierra 2500 HD 2018-2019
GMC Sierra 3500 HD 2018-2019
