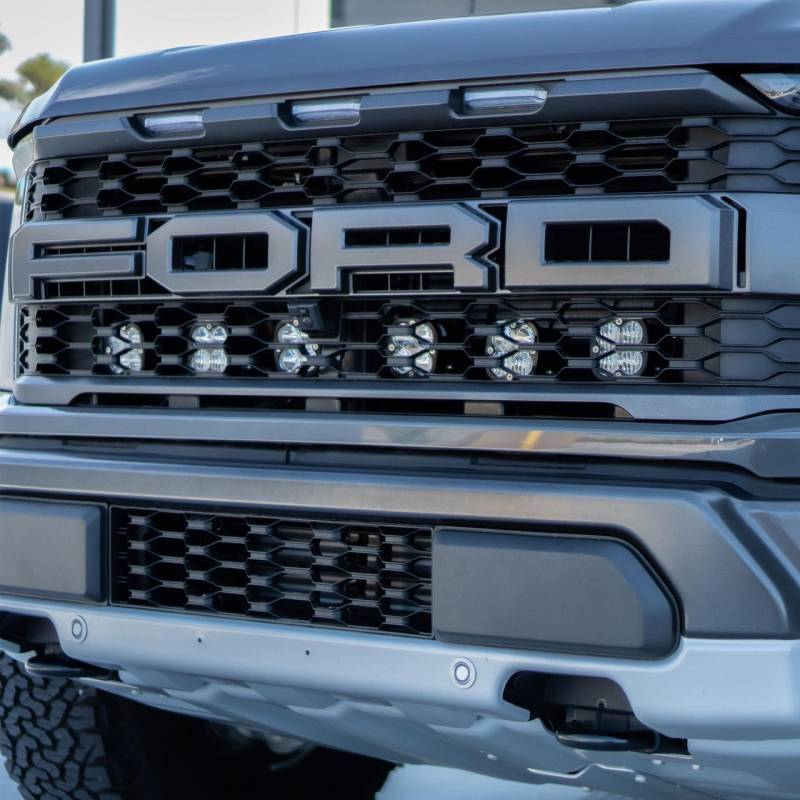

Baja Designs Ford Raptor Behind-the-Grill kits were designed with both functionality and visual appeal in mind. This kit offers six Squadron Pros, mounting brackets, and hardware. The Squadron Pro from Baja Designs is the go-to choice when you want to annihilate the night and blast away the darkness. The compact LED light boasts an impressive 4,600 lumens at 40 watts, which means that these lights provide brilliant brightness. The secret to Squadron Pro’s brilliance is Cree LEDs, which provide 20% more reach than standard LEDs with the same power consumption.
To give these kits and easier wiring installation, each kit includes an up-fitter harness that allows you to tap your lights into the factory up-fitter switches.
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color

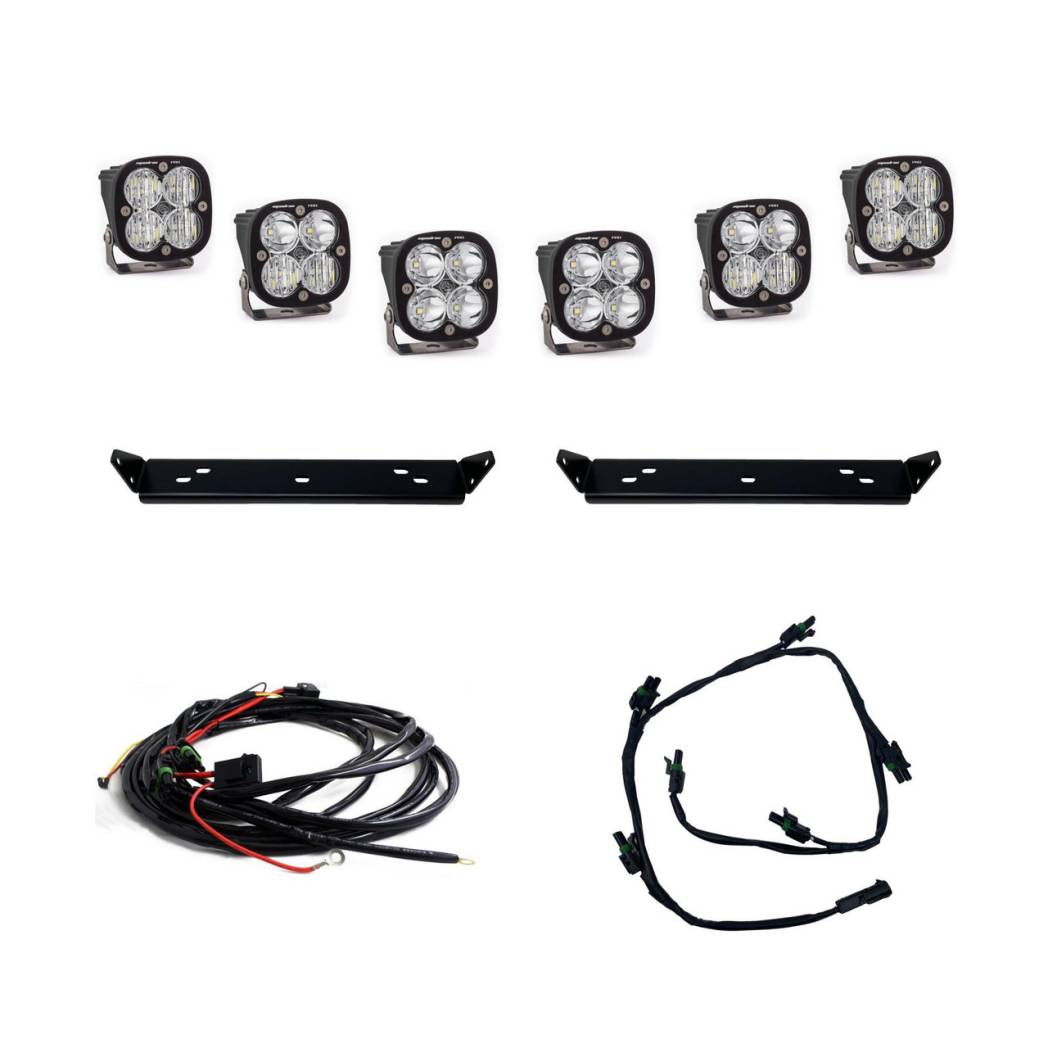

INCLUDED WITH KIT:
SKU: 490003
Dimensions
| Depth (in.) |
2.770 |
| Height (in.) |
3.070 |
| Length (in.) |
3.070 |
| Weight (lbs.) |
0.750 |
Specifications
| Amperage Rating (A) |
3 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Driving/Combo |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
4095 |
| Description |
Driving/Combo; Clear |
| Housing Color |
Black |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color |
Clear |
| Lighting Modes |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lens Material |
Beam |
| Lighting Quantity |
4 |
| Lighting Type |
Cree LED (2 Types) |
| Lighting Technology |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
Squadron Pro LED Light Pod |
| Wattage (W) |
41.400 |
| Wiring Harness Included |
No |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 490001
Dimensions
| Depth (in.) |
2.770 |
| Height (in.) |
3.070 |
| Length (in.) |
3.070 |
| Weight (lbs.) |
0.750 |
Specifications
| Amperage Rating (A) |
3 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Spot |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
4095 |
| Description |
Spot; Clear |
| Housing Color |
Black |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color |
Clear |
| Lighting Modes |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lens Material |
Beam |
| Lighting Quantity |
4 |
| Lighting Type |
Cree LED (2 Types) |
| Lighting Technology |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
Squadron Pro LED Light Pod |
| Wattage (W) |
41.400 |
| Wiring Harness Included |
No |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 490005
Dimensions
| Depth (in.) |
2.770 |
| Height (in.) |
3.070 |
| Length (in.) |
3.070 |
| Weight (lbs.) |
0.750 |
Specifications
| Amperage Rating (A) |
3 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Wide Cornering |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
4095 |
| Description |
Wide Cornering; Clear |
| Housing Color |
Black |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color |
Clear |
| Lighting Modes |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lens Material |
Beam |
| Lighting Quantity |
4 |
| Lighting Type |
Cree LED (2 Types) |
| Lighting Technology |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
Squadron Pro LED Light Pod |
| Wattage (W) |
41.400 |
| Wiring Harness Included |
No |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
