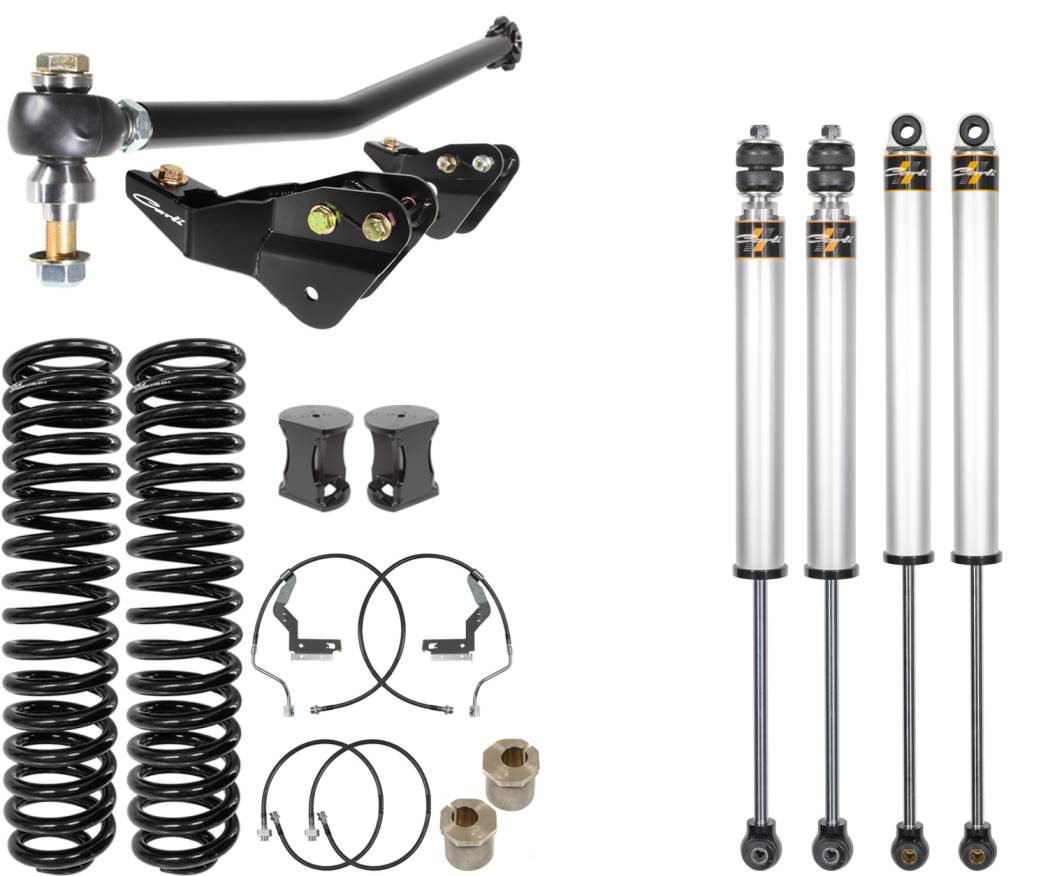

CS-F45-COM-CS-17 | Carli Suspension Carli Spec 2.0" IFP Front & Rear 4.5"/5.5" Lift Commuter System For Ford F-250/F-350 4WD | 2017-2023 | Diesel

The Super Duty Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, we’ve developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.

Front Travel: 11″ /  Rear Travel: 13.8″ / Shock Type: 2″ IFP / Tire Fitment: 37″ x 13.5″

The Super Duty Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, we’ve developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.

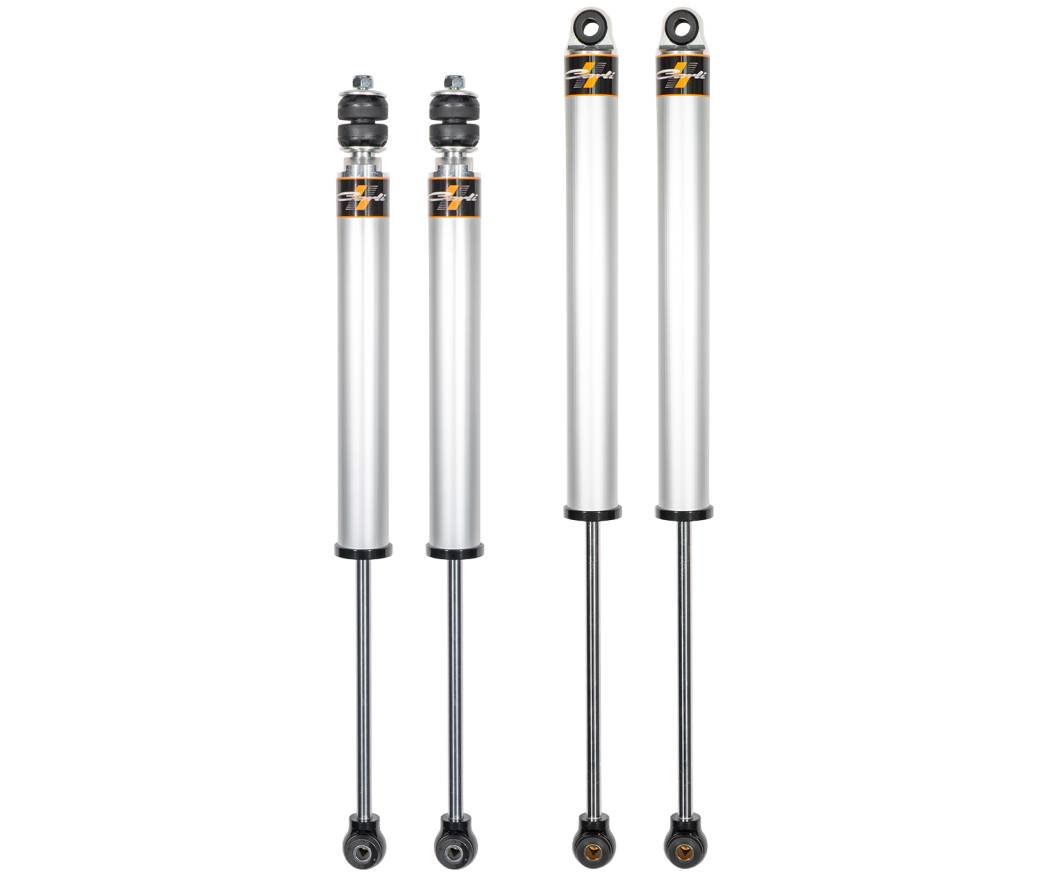

The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli.

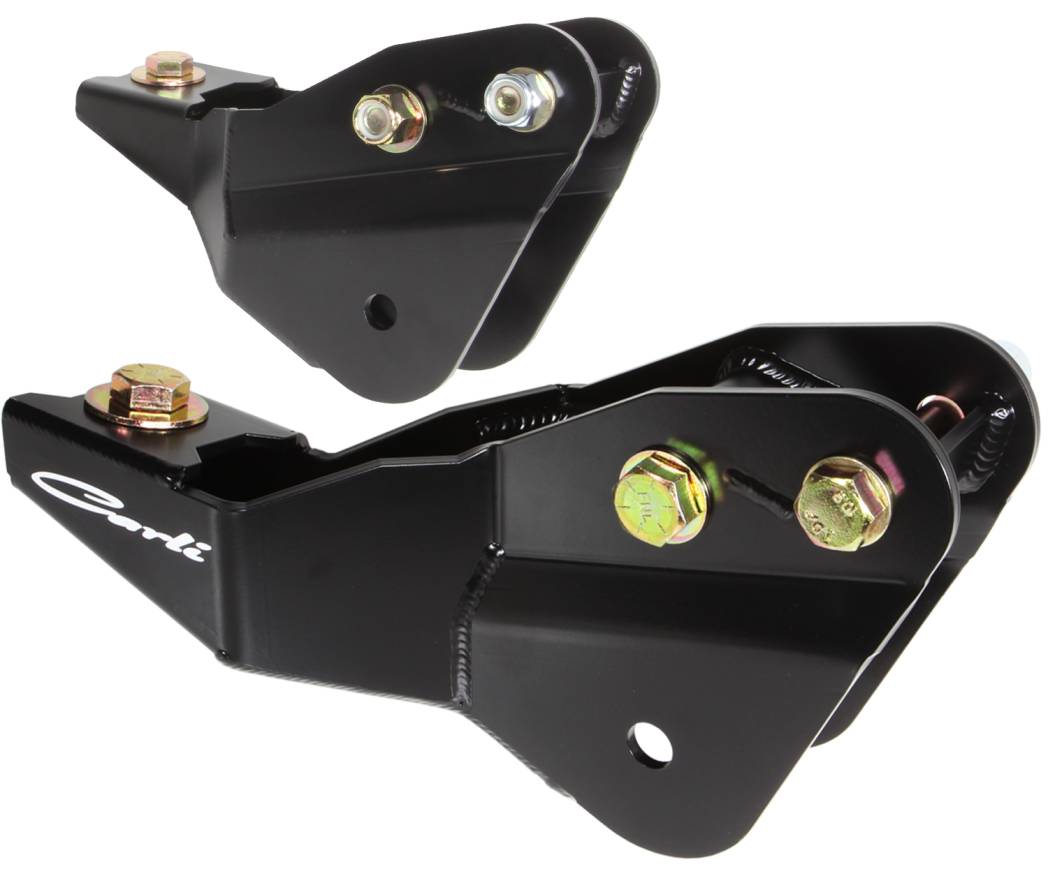

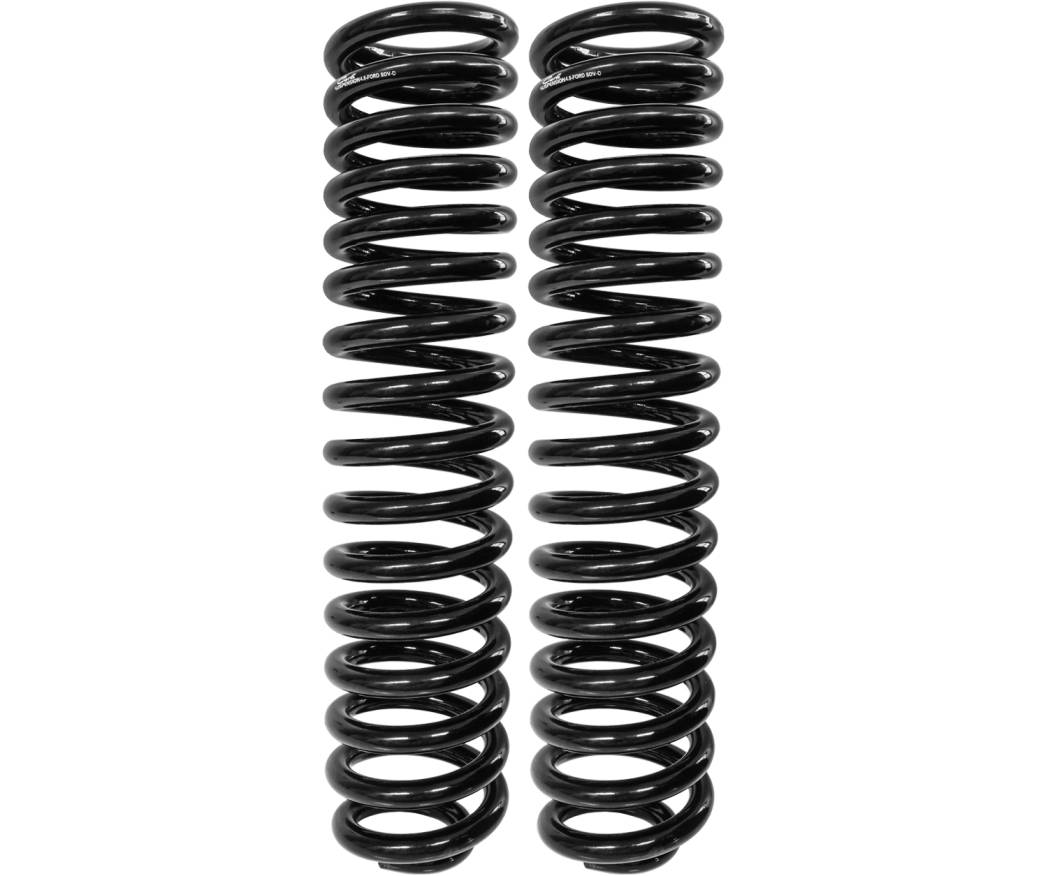

The truck will sit 4.5” higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while the Sway Bar Link & Drop Brackets Kit resets the sway bar engagement point. The End Link Kit is listed as an “option”, but it’s necessary to run. We plan to release a Torsion Sway Bar in the near future so the end-link options were pulled from the base kit and made selectable in anticipation of the second option. Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Caster Shims to tighten the steering.

NEW for the Carli-SPEC: In the previous version, we optimized the Commuter for the add-a-pack while recommending against our full replacement leaf springs. With the new shocks and tuning, the rear can now be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a “light” ¾-ton) or factory leaf-pack modifying Progressive Add-a-Pack (maintains factory payload capacity and pairs with the included Carli Fabricated 2” block)!

This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack than its 350 counterpart. The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. We recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If capacity is a concern, the Full Progressive Leaf Springs can be supplemented back to the factory capacity of a SRW F350 with the addition of our Long-Travel Airbags. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression.

Wheel and Tire: Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 4.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5” of backspacing with a 37”, E-Rated Tire. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter. For more details, see our article on wheel and tire selection and tire pressures:

Tires and Wheels: How Do They Affect My Ride?

Customization Information

Sway Bar Option

*REQUIRED*

The Commuter System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops & Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

FORD F250/350 4X4 EXTENDED SWAY BAR END LINK & SWAY BAR DROP BRACKET KIT - 4.5"/5.5"

SKU: CS-FELKIT-45-17
- Combines End Links and Drop Brackets For Perfect Sway Bar Position
- 17-4 Stainless Steel, Fully Rebuildable
- Excellent Articulation
- Compatible with 4.5" & 5.5" Suspension Systems

FORD F250/350 4X4 TORSION SWAY BAR KIT - 4.5"/5.5" LIFT WITH END LINKS

SKU: CS-FTSB-45-17
- Direct Fitment to Carli 4.5" & 5.5" Lifts
- Replaces Immobile Factory Sway Bar with Custom Torsion Bar
- Huge Ride Quality Improvement
- Includes CS-FEL-45-17 Drop Brackets and Sway Bar Links

Rear Spring Option

*REQUIRED*

The Commuter System has been optimized for use with the Full Progressive Leaf Springs. This system is also compatible with the Progressive Add-a-Packs but there will be a notable ride quality difference on and off-road. Add-a-Packs are NOT recommended for the F350 (or any F250 equipped with the High Capacity Tow or Tremor Package). More information can be found in the description at the bottom of this page. More information is available in the long description at the bottom of this product page. Selecting "NO Rear Leaf Spring Selection" will result in an unknown ride quality and height result as all Carli Systems are optimized to either the Add-a-Pack or Progressive Leaf Springs.

FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 3" LIFT

SKU: CS-FPAP-45-17
- Built in the U.S.A. By Deaver Leaf Spring
- Smooth Progressive Design
- Supplied with 2" Block, Bump Stop Drops, U-bolts and Hardware
- Provides Slightly Rear-High Stance with 4.5" & 5.5" Lifts
- Load Capacity is Maintained, Ride Quality is Improved

FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 3" LIFT

SKU: CS-FFSP-17
- Block eliminating, Full Progressive Spring Pack
- "Light" 3/4-Ton Capacity, Full Capacity Attainable with Long Travel Airbags
- Includes new U-Bolts and Rear Bump Stop Drops
- Provides a 1", rear high stance on Matching 4.5"/5.5" Suspension Systems

Leaf Spring Shackle

*OPTIONAL*

Much of the jarring ride of the Super Duty rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

05-23 FORD F350/350 4X4 FABRICATED LEAF SPRING SHACKLE

SKU: CS-FSHACKLE-11
- Greasable and Rebuildable
- Far Better Ride than Factory Shackle
- 1/4" Steel Construction
- Fits Factory and Carli Springs

Long Travel Airbags

*OPTIONAL*

Adjustable loaded ride height when paired with the Carli Full Springs or Add-a-packs. Standard F250 will have 3.5" Axle Tube, High-Capacity Tow Package F250 will have 4". F350 will have 4" and DRW will be 4.5". We ALWAYS recommend measuring your axle before ordering as the above are guidelines and should be confirmed prior to ordering!

17-22 FORD F350 4X4 LONG TRAVEL AIRBAGS - 3.5" AXLE TUBE

SKU: CS-FLTB-17-35
- Supports up to 12 inches of travel
- Compatible with Carli 4.5"-5.5" Suspension Systems ONLY
- Restore Factory Payload to Full Progressive Springs
- Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi
- Use Manually (included) or with onboard air System (1/4" airline compatible)
- Fitment: 2017-22 F250/F350 4x4 with 3.5" Axle Tube

17-22 FORD F250 TREMOR, HIGH CAP TOW & F350 SRW 4X4 LONG TRAVEL AIRBAGS - 4.0" AXLE TUBE

SKU: CS-FLTB-17-40
- Supports up to 12 inches of travel
- Compatible with Carli 4.5"-5.5" Suspension Systems ONLY
- Restore Factory Payload to Full Progressive Springs
- Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi
- Use Manually (included) or with onboard air System (1/4" airline compatible)
- Fitment: 2017-22 F250/F350 4x4 with 4.0" Axle Tube

17-22 FORD F350 DRW 4X4 LONG TRAVEL AIRBAGS - 4.5" AXLE TUBE

SKU: CS-FLTB-17-45
- Supports up to 12 inches of travel
- Compatible with Carli 4.5"-5.5" Suspension Systems ONLY
- Restore Factory Payload to Full Progressive Springs
- Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi
- Use Manually (included) or with onboard air System (1/4" airline compatible)
- Fitment: 2017-22 F250/F350 4x4 with 4.5" Axle Tube

Fabricated Radius Arm Option

*OPTIONAL*

Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

05-22 FORD F250/350 4X4 FABRICATED RADIUS ARMS - 4.5"/5.5" LIFT

SKU: CS-FARA-45-05
- 1°-4° of adjustable Caster correction
- 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance
- Limit Straps Kit Included
- Serviceable 17-4 Stainless Spherical Joint at Frame Connection for longevity and bind free Cycling
- Requires Radius Arm Drop Brackets for 4.5"-5.5" Carli Systems
- Fitment: 2005-22 Ford F250/350 4x4

High Mount Steering Stabilizer

*OPTIONAL*

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains

17-23 FORD F250/350 4X4 HIGH MOUNT STEERING STABILIZER - STAINLESS STEEL - 2.5" & 4.5" LIFT

SKU: CS-FHMSS-17
- Long Lasting Performance and Appearance
- Bolt in Replacement for OEM Stabilizer
- Fitment: 2017-23 F250/350 4x4
- Works on leveled and lifted trucks ONLY

Low Mount Steering Stabilizer

*OPTIONAL*

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

05-22 FORD F250/350 4X4 LOW MOUNT STEERING STABILIZER KIT - WITH DIFFERENTIAL GUARD

SKU: CS-FLMSS-05
- Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
- Includes Differential Guard and Clamp
- Combines with High-Mount Stabilizer for Opposing Setup
- Optimized for Carli 2.5"-5.5" Systems

Carrier Bearing Drop

*OPTIONAL*

For trucks with 2-piece driveshafts; lowers the carrier bearing to eliminate take-off shudder resulting from additional driveshaft angle from the lifted suspension.

05-23 FORD F250/350 4X4 CARRIER BEARING DROP

SKU: CS-CARRIERDROP-F
- Drops Carrier Bearing on 2-Piece Driveshafts
- Prevents take-off shudder/driveline vibration
- Stackable 3/8" Shims for 1"-4" Rear Lift

Trophy Hitch

*OPTIONAL*

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!

17-23 FORD F250/350 4X4 FORD TROPHY HITCH

SKU: CS-FHITCH-1723
- Direct Bolt in, Rated to 16,000lbs., 3" Hitch Receiver
- 3/16" and 1/4" Cold-Rolled American Steel
- Utilizes Factory Winch + 3-way Tie-Down to Secure Spare
- 38" Spare Tire in the Factory Location
- May Require Exhaust Modification
- Requires 5/8" x 4" (usable shank) Hitch Pin
