CS-F45-D30-08 | Carli Suspension Carli Tuned King 3.0" Remote Reservoir Shocks 4.5" Lift Dominator System For Ford F-250/F-350 4WD | 2008-2010 | Diesel

The most travel, softest on-road ride and the second most off-road capability combine to make this the ultimate utilitarian setup in our 4.5″ height range. This system options full leaf springs and Fabricated Radius arms are recommended.

Front Lift: 4.5″ / Front Travel: 10.5″ / Rear Lift: 0-3.5"″ / Rear Travel: 13″ / Shock Type: 3.0″ / Tire Fitment: 37″ x 13.5″

A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar and Leaf Spring option to form a complete system.

This is the true, Jack of all trades suspension system offering the most wheel travel of any Carli system. The Dominator rides better than any other system on the road while boasting off-road manners to rival the Coilover Bypass. No tubes to adjust or user-tunability in this system; we’ve done the hard work for you.

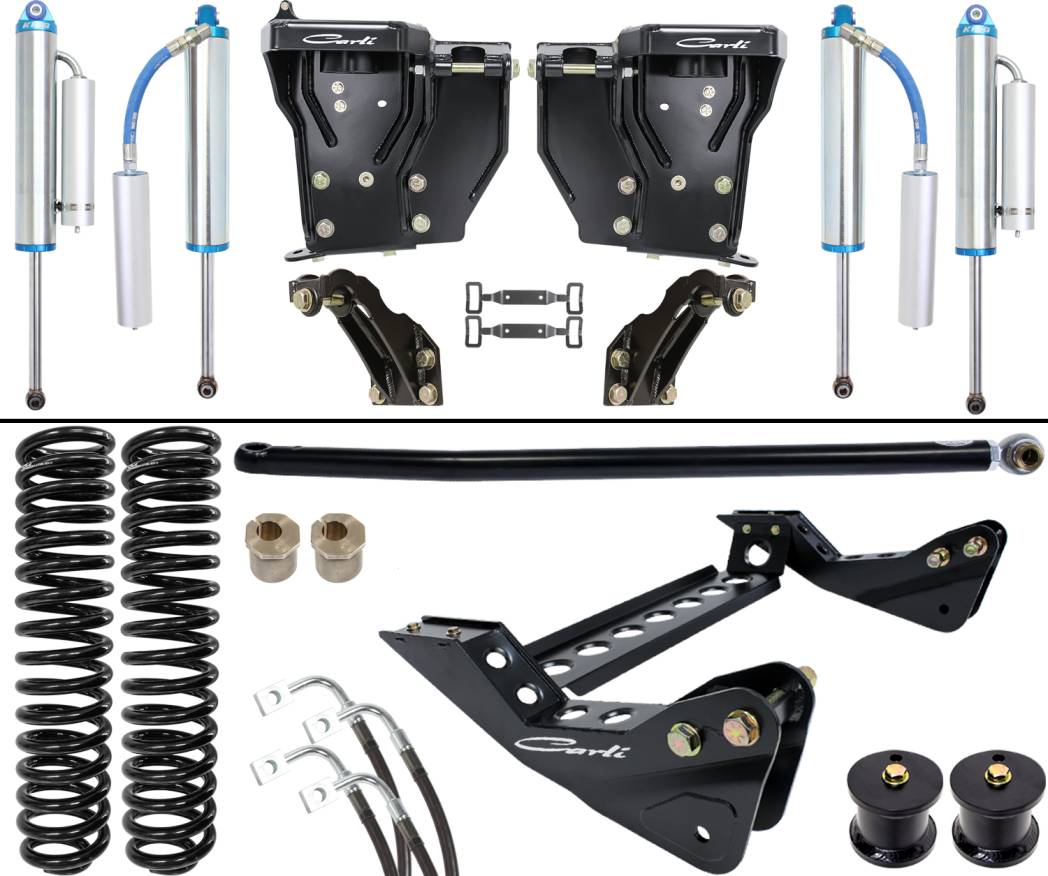

The truck will sit 4.5” higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs that mount into the Fabricated Carli Spring Buckets. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while Sway Bar Links or Drop Brackets reset the sway bar engagement point. The included Bump Stop Drops protect the shocks from over-compressing while the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Caster Shims to tighten the steering.

The rear is outfitted with a Full Progressive Spring Pack requiring no block to achieve proper ride height; thus, travel is extended and wheel hop/axle wrap minimized at the cost of 15% less load capacity than a stock F250. If capacity is a concern, we offer Long Travel Airbags to restore the payload capacity to that of a SRW F350.

This system boasts Carli Signature tuned, King 3.0” Remote Reservoir shocks so large, we needed to fabricate custom mounts to fit them; as the old adage goes, there’s no replacement for displacement. The 3.0” shock has a piston surface area 45% greater than a 2.5” King and 126% larger than a factory 2.0” shock making it far more efficient in all situations. The massive surface area also ensures we can achieve amazing off-road performance while offering the best on-road ride of any of our systems. To fit these shocks, we provide fabricated mounts that lift the upper mounting point and position the shock away from the frame while the standard bump stop extensions were shortened to allow for more up-travel to compliment the additional down-travel from the longer shock. In an effort to provide customers with the best product, we designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; we then tuned the shocks based on seat-of-the-pants feel. We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55° F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.

Aesthetically, there will be one huge shock at each corner. The purpose for which the truck’s being built does not need to be a consideration when purchasing the Dominator. On Road, it’s the best; Off-Road, it’s a monster and cycles more travel than any other system we offer. All the aforementioned with only 4 completely rebuildable shocks to maintain and stupidly simple operation with the tuning left to the experts. If it’s in the budget, this is the Carli recommendation for everyone.

As with the Coilover Bypass, it’s recommended that users purchase a Differential Guard for axle protection, High Mount Steering Stabilizer to keep the steering as controlled as the suspension and Fabricated Radius Arms for strength and Limit Strap mounting. At this level of suspension, a roll cage is also recommended if the system will be used to its full off-road potential.

Wheel and Tire:  On our 4.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5” of backspacing with a 37”, E-Rated Tire. If running the Carli Fabricated Radius Arms, up to 5.5” of backspacing is possible given the additional tire clearance provided by the arm. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter. For more details, see our article on wheel and tire selection and tire pressures:

Tires and Wheels: How Do They Affect My Ride?

Customization Information

Sway Bar End Links

*REQUIRED*

08-10 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK - 4.5" LIFT

SKU: CS-FEL-08
- Corrects Sway Bar Geometry on 4.5" Lift
- Direct Bolt-in
- Unhindered Articulation, 100% Rebuildable
- FK Bearing 5/8" Rod Ends

Rear Leaf Spring Options

*REQUIRED*

08-10 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 3" LIFT

SKU: CS-FFSP-08
- Block eliminating, Full Progressive Spring Pack
- "Light" 3/4-Ton Capacity, Full Capacity Attainable with Long Travel Airbags
- Includes new U-Bolts and Rear Bump Stop Drops
- Provides a 1", rear high stance on Matching 4.5" Suspension Systems
- Fitment: 2008-10 F250/350 4x4, 3.5" Axle Tube

Carrier Bearing Drop

*OPTIONAL*

05-23 FORD F250/350 4X4 CARRIER BEARING DROP

SKU: CS-CARRIERDROP-F
- Drops Carrier Bearing on 2-Piece Driveshafts
- Prevents take-off shudder/driveline vibration
- Stackable 3/8" Shims for 1"-4" Rear Lift

Long Travel Airbags

*OPTIONAL*

08-16 FORD F250/350 4X4 LONG TRAVEL AIR BAG SYSTEM - 4.5" LIFT

SKU: CS-FLTB-08
- Supports up to 12 inches of travel
- Compatible with rear lifts that level to a 4.5" Front Suspension System ONLY
- Restore Factory Payload to Full Progressive Springs
- Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi
- Use Manually (included) or with onboard air System (1/4" airline compatible)
- Fitment: 2008-2016 F250/F350 4x4 with 3.5" Axle Tube

High Mount Steering Stabilizer

*OPTIONAL*

08-16 FORD F250/350 4X4 HIGH MOUNT STEERING STABILIZER - STAINLESS STEEL - 2.5" & 4.5" LIFT

SKU: CS-FHMSS-08
- Inside the Carli Stainless Stabilizer
- Bolt in Replacement for OEM Stabilizer
- Fitment: 2008-2016 F250/350 4x4
- Works on levelled and lifted trucks ONLY
- WILL NOT work with Dropped Pitman Arms

Low Mount Steering Stabilizer

*OPTIONAL*

05-22 FORD F250/350 4X4 LOW MOUNT STEERING STABILIZER KIT - WITH DIFFERENTIAL GUARD

SKU: CS-FLMSS-05
- Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
- Includes Differential Guard and Clamp
- Combines with High-Mount Stabilizer for Opposing Setup
- Optimized for Carli 2.5"-5.5" Systems

Radius Arm Option

*OPTIONAL*

05-22 FORD F250/350 4X4 FABRICATED RADIUS ARMS - 4.5"/5.5" LIFT

SKU: CS-FARA-45-05
- 1°-4° of adjustable Caster correction
- 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance
- Limit Straps Kit Included
- Serviceable 17-4 Stainless Spherical Joint at Frame Connection for longevity and bind free Cycling
- Requires Radius Arm Drop Brackets for 4.5"-5.5" Carli Systems
- Fitment: 2005-22 Ford F250/350 4x4
