CS-DPER25SPKG-03-D-LA | Carli Suspension Performance Carli Tuned Long Travel King 2.5" Remote Reservoir Shocks 3.0" Lift For Ram 2500/3500 4WD | 2003-2009 | Diesel

Carli-specific, blueprinted, Long-Travel King 2.5” shocks on all four corners. For the Long Arm system, we designed a second, off-road-oriented 5-Port custom piston as opposed to the 3-Ports in a short-arm Pintop 2.5” System. This piston and long arm tuning profile alters flow of the pressurized shock oil displacing a wider surface area of the tuning shims to increase bottom-out on sharp hits while providing a predictable, comfortable street ride.  We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless.

Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55* F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.he Pintop rules the bang-for-the-buck but converting these trucks to long arms opens a whole new world of ride quality and corrected geometry. Pair the balanced suspension travel (6” up and 6” down) with a 2.5” King for which we developed a new, long-arm specific, piston and tuning profile and you’ll wonder how you ever lived with short arms. This is a very balanced on-road system and will slay any trail to which you point it. If you’re not seeing daylight under your tires on a daily, this is the perfect kit.

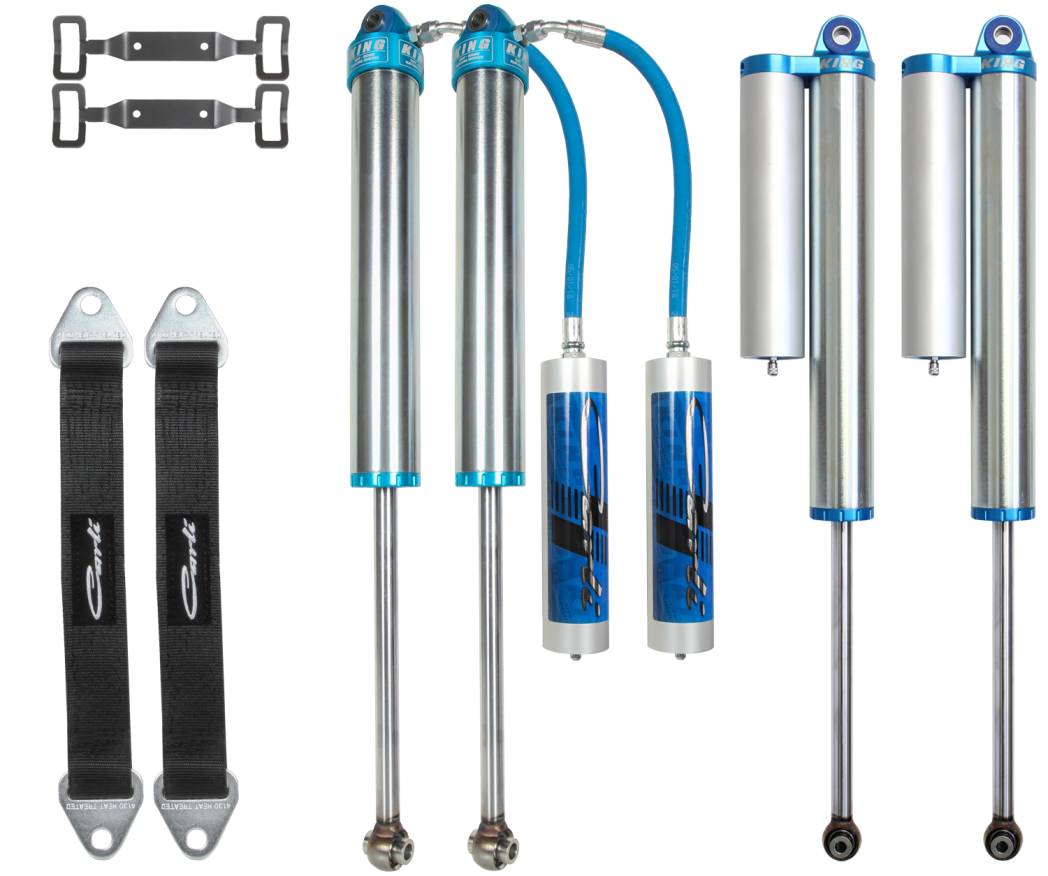

- Carli Custom Tuned, 5-Port Piston, LONG ARM specific Valving
- King 2.5" Remote Reservoir Shocks with 17-4 Stainless Shock Shafts
- Includes Front and Rear Shocks, Short Reservoir Mounts, & Limit Straps
- Fitment: 2003-2012 Ram 2500/3500 4x4 Diesel
- Only Compatible with Carli CS-DLRC-10-D Coils and Full Rear Springs
- 6.25" Shock Towers Required: CS-DFST625 (Not Included)

Addition of Fabricated Axle Truss and Rear Fabricated Shock Mounts Recommended.

Customization Information

Fabricated Shock Tower

*OPTIONAL*

94-12 RAM 2500/3500 FABRICATED SLIDE-OVER SHOCK TOWER - 6.25" TALL (EXTENDED TRAVEL APPLICATION)

SKU: CS-DFST625
- 3" Long Arm Kit Specific (for Short-Body 12" Shocks)
- 1/4" Cold Rolled Steel
- Slide Over Design
- Fully Gusseted and Braced
- 3/8" Stud Ring for extreme durability
- Black Powdercoat Finish
- Height: 6.25" from base to center of shock bolt.

Rear Shock Mount - Driver

*OPTIONAL*

03-12 RAM 2500/3500 4X4 WELD-IN REAR SHOCK MOUNT, DRIVER

SKU: CS-DRSM-03-D
- Replaces weak Driver's side factory shock mount
- Necessity when running 3.0" rear shocks
- Combines 3/16" and 1/4" Steel for Strength
- WILL NOT FIT 2013-2500/3500
- WELD-ON Fabrication Part

Rear Shock Mount - Passenger

*OPTIONAL*

03-12 RAM 2500/3500 4X4 WELD-IN REAR SHOCK MOUNT, PASSENGER

SKU: CS-DRSM-03-P
- Replaces Passenger side factory shock mount
- Combines 3/16" and 1/4" Steel for Strength
- Good insurance when installing Driver's side
- WELD-ON Fabrication Part

Reservoir Rock Guard

*OPTIONAL*

Universal - 2.5" Diameter Shock Rewsrvoir Guard

SKU: CS-RRG
- Shock Reservoir Protection
- Stainless Hose Clamps
- Sold Individually
- Recommended for Rear shock leaning forward from the axle
- Fitment: Any 2.5", 3.0" or 3.5" Shock with 2.5" Reservoir
