CS-DD30SPKG-03-D-LA | Carli Suspension Dominator Carli Tuned Long Arm King 3.0" Remote Reservoir Shocks Package For Ram 2500/3500 4WD | 2003-2012 | 3.0" Lift, With Mounts & Limit Straps

The Dominator 3.0” system is a no-compromise utilitarian, all-around suspension system. These 3.0″ King Shocks are longer-travel than our short arm systems with a long-arm specific tuning profile. The on-road ride is fantastic, the off-road ride will run circles around the Performance 2.5 and allow you to drive to the capability of the chassis without worrying that you’ve equipped the truck with enough shock to destroy the truck around the suspension. If it’s in the budget, this is the system we’d recommend for every Ram owner.

Fabricated Shock Towers and Rear Crossmember Gussets are Required to install, Axle Truss and Rear Shock Mounts are Highly Recommended.

- Carli Custom Tuned, LONG ARM specific Valving
- King 3.0" Remote Reservoir Shocks with 17-4 Stainless Shock Shafts

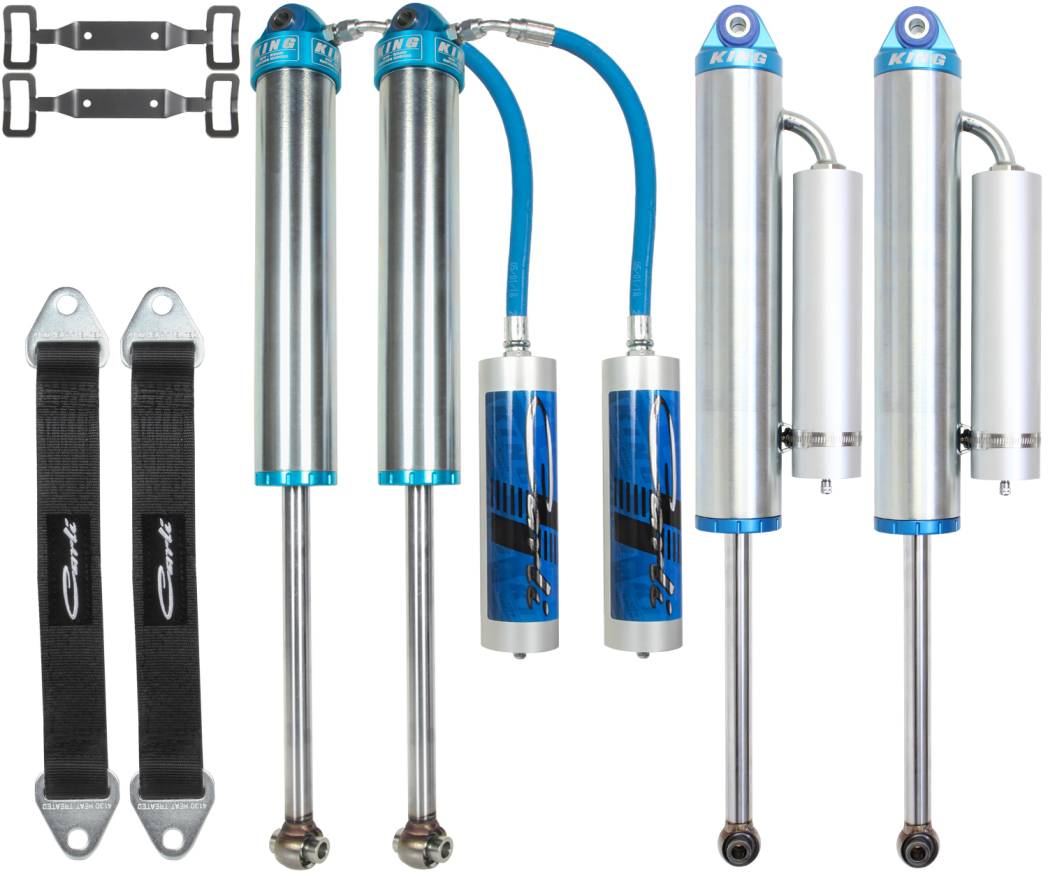

- Includes Front and Rear Shocks, Short Reservoir Mounts, & Limit Straps
- Fitment: 2003-2012 Ram 2500/3500 4x4 Diesel
- Only Compatible with Carli CS-DLRC-10-D Coils and Full Rear Springs
- 6.25" Shock Towers Required: CS-DFST625 (Not Included)

This system boasts Carli specific, blueprinted, Long-Travel King 3.0” shocks on all four corners. We run an OD end cap and weld on rod end with custom fittings to ensure perfect fitment with our slid-over shock towers (MUCH easier installation). New shocks means we also developed and entirely new valving profile to suit the extended travel application and long arm geometry. We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55* F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.

Customization Information

Rear Gusset Kit

*OPTIONAL*

03-12 RAM 2500/3500 4X4 DOMINATOR REAR CROSSMEMBER GUSSET KIT - WELD IN

SKU: CS-D30GUSSET
- 1/4" Cold-Rolled Steel Gussets
- Replace and box section of spare tire crossmember removed for 3.0" shock clearance

Fabricated Shock Tower

*Highly Recommended*

94-12 RAM 2500/3500 FABRICATED SLIDE-OVER SHOCK TOWER - 6.25" TALL (EXTENDED TRAVEL APPLICATION)

SKU: CS-DFST625
- 3" Long Arm Kit Specific (for Short-Body 12" Shocks)
- 1/4" Cold Rolled Steel
- Slide Over Design
- Fully Gusseted and Braced
- 3/8" Stud Ring for extreme durability
- Black Powdercoat Finish
- Height: 6.25" from base to center of shock bolt

Rear Shock Mount - Driver

*Highly Recommended*

03-12 RAM 2500/3500 4X4 WELD-IN REAR SHOCK MOUNT, DRIVER

SKU: CS-DRSM-03-D
- Replaces weak Driver's side factory shock mount
- Necessity when running 3.0" rear shocks
- Combines 3/16" and 1/4" Steel for Strength
- WILL NOT FIT 2013-2500/3500
- WELD-ON Fabrication Part

Rear Shock Mount - Passenger

*Highly Recommended*

03-12 RAM 2500/3500 4X4 WELD-IN REAR SHOCK MOUNT, PASSENGER

SKU: CS-DRSM-03-P
- Replaces Passenger side factory shock mount
- Combines 3/16" and 1/4" Steel for Strength
- Good insurance when installing Driver's side
- WELD-ON Fabrication Part

Reservoir Rock Guard

*OPTIONAL*

UNIVERSAL - 2.5" DIAMETER SHOCK RESERVOIR GUARD

SKU: CS-RRG
- Shock Reservoir Protection
- Stainless Hose Clamps
- Sold Individually
- Recommended for Rear shock leaning forward from the axle
- Fitment: Any 2.5", 3.0" or 3.5" Shock with 2.5" Reservoir
