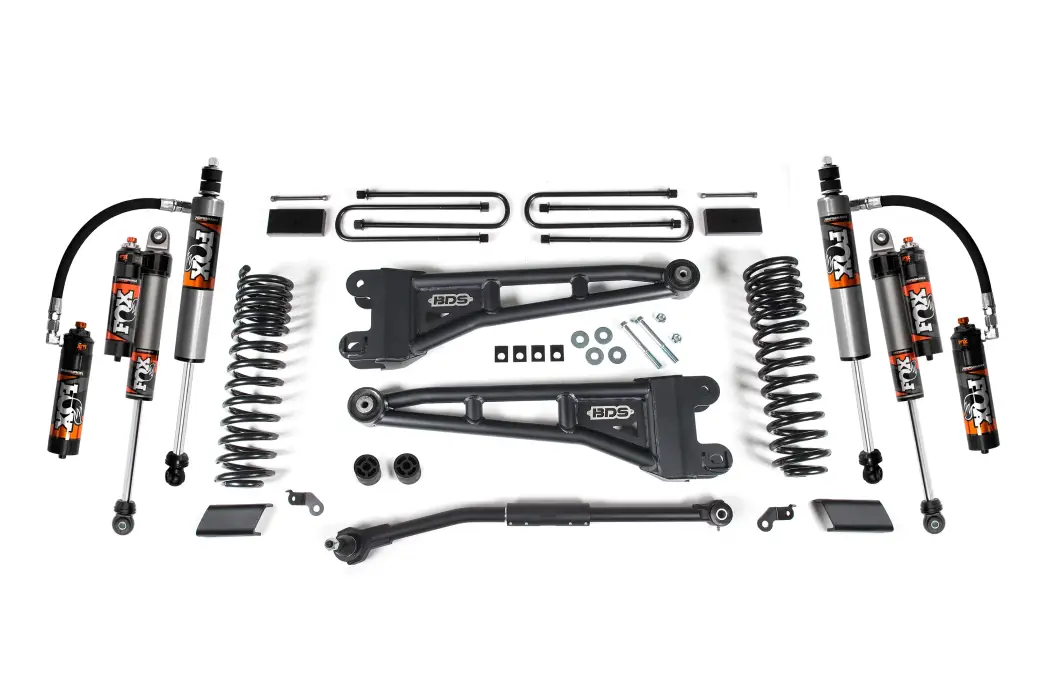

BDS2200FPE | BDS Suspension 3 Inch Lift Kit With Radius Arm For Ford F-250/F-350 Super Duty 4WD | 2023-2024 | Fox 2.5 Performance Elite Shocks

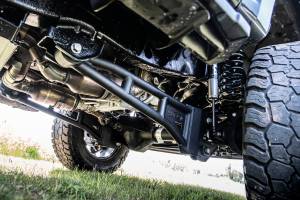

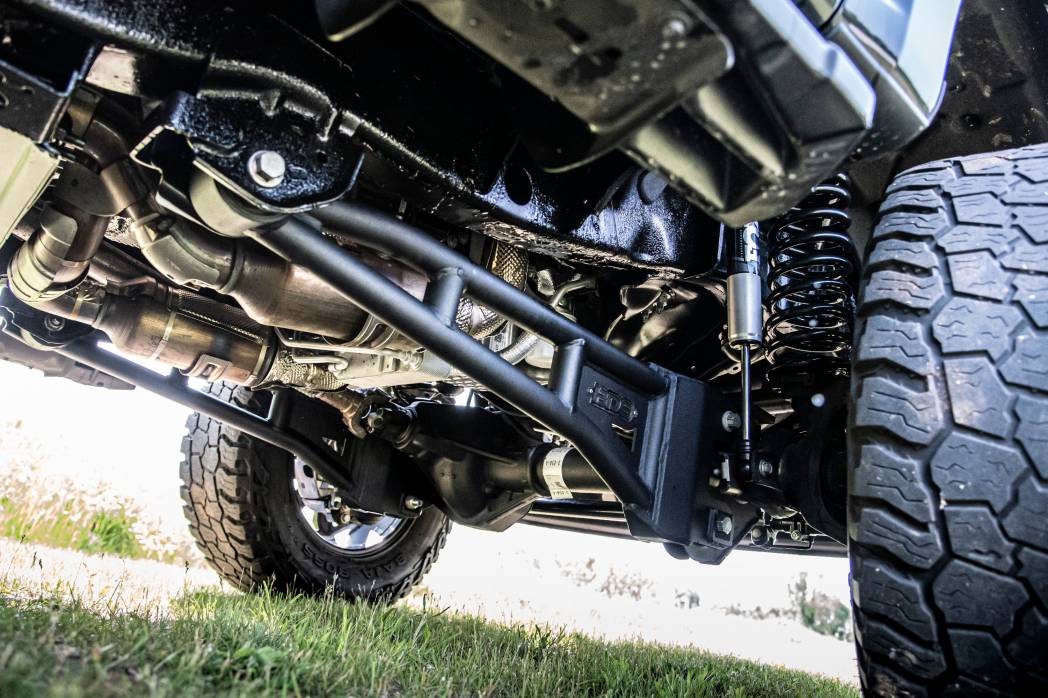

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Important Notes

1. This kit is not compatible with trucks equipped with radius arm mounted ride height sensors.
2. Designed for use on diesel models, but can be installed on gas trucks, will achieve additional 1/2 inch front ride height.
3. Installation requires a torque wrench capable of 406 ft-lbs.
4. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
5. Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
6. Trucks without top mounted overload spring will require (x4) UBT4031 available to purchase seperately.

Installation

Difficulty Level :

Moderate

Specialty Tools Needed :

30mm Socket, Pitman Arm Puller

Specification
