BDS1711FS | BDS Suspension 2 Inch Lift Kit For Ram 2500 Power Wagon 4WD (2014-2022) | Fox 2.0 Performance Series Shocks

2 Inch Lift Kit For Ram 2500 Power Wagon 4WD (2014-2022) | Fox 2.0 Performance Series Shocks

BDS1711FS
Pricing: $2,978.48
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Level out and take your RAM 2500 Power Wagon truck with this 2-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated coil spacer, bump stop extensions and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features & Benefits

  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front adjustable track bar allows you to re-center axle
  • Front sway bar correction to maintain handling performance
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8"" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

N/A

Installation

Est. Install Time :

4-5 hrs

Difficulty Level :

ModeratelyEasy

Specialty Tools Needed :

N/A

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Spacer
  • Shocks Included : Yes
  • Front Lift Height : 2"
  • Rear Lift Height : 1.25"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2014Ram2500Power WagonALLALLALLALL
2015Ram2500Power WagonALLALLALLALL
2016Ram2500Power WagonALLALLALLALL
2017Ram2500Power WagonALLALLALLALL
2018Ram2500Power WagonALLALLALLALL
2019Ram2500Power WagonALLALLALLALL
2020Ram2500Power WagonALLALLALLALL
2021Ram2500Power WagonALLALLALLALL
2022Ram2500Power WagonALLALLALLALL

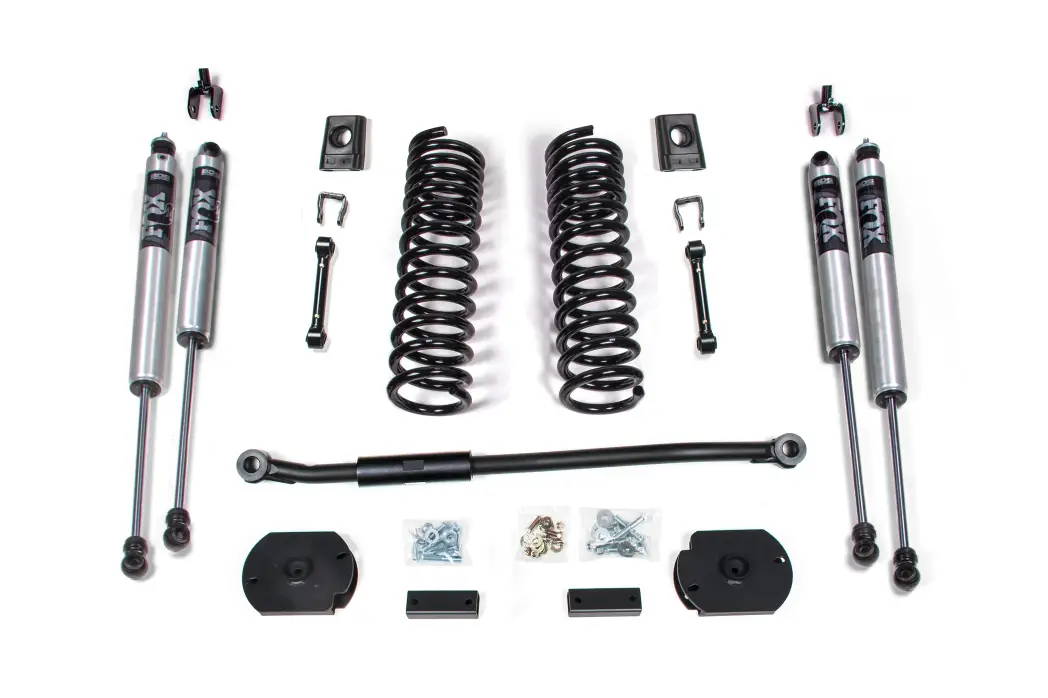

Component List

1 BDS012312 2014-2024 Ram 2500 / 2013-2024 Ram 3500 3" Front Box Kit
1 BDS032302 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3" Diesel - 4" Gas
1 BDS012127 2019-2024 Ram 2500 1.25in Rear Spacer Box Kit Power wagon
2 FOX98224700 Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
2 FOX98224706 Fox 2.0 Shock - 23.65 x 15.05 x 2- Special/EB1

Tire & Wheels

(Trimming may be required)
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
