BDS2103FS | BDS Suspension 5.5 Inch Lift Kit With Radius Arm For Ram 2500 4WD Gas With Rear Air Ride (2014-2018) | Fox 2.0 Performance Series Shocks

5.5 Inch Lift Kit With Radius Arm For Ram 2500 4WD Gas With Rear Air Ride (2014-2018) | Fox 2.0 Performance Series Shocks

BDS2103FS
Pricing: $4,335.03
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Built to outperform, BDS Suspension engineered a 5.5-inch lift kit with radius arm for your 2014-2018 RAM 2500 gas powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

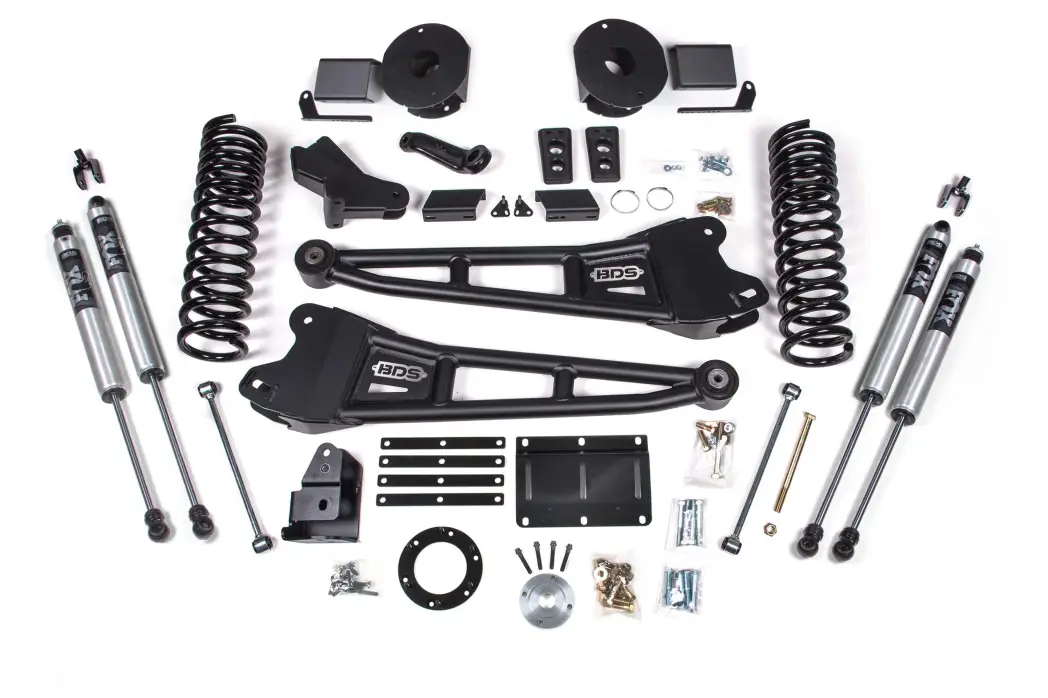

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes heavy duty air bag spacers, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks. BDS also supplies new air ride leveling sensor brackets to re-position the ride height sensors allowing it to perform just like it does at factory ride height and maintain full air bag range of motion.

Features & Benefits

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 8 and 5.625 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Important Notes

  1. For OE Air Ride systems only
  2. 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.

Installation

Est. Install Time :

3 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Coil Spring
  • Shocks Included : Yes
  • Front Lift Height : 5.5"
  • Rear Lift Height : 4"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2014Ram2500Big Horn4WDGASALLALL
2014Ram2500Laramie4WDGASALLALL
2014Ram2500Laramie Limited4WDGASALLALL
2014Ram2500Laramie Longhorn4WDGASALLALL
2014Ram2500Lone Star4WDGASALLALL
2014Ram2500Outdoorsman4WDGASALLALL
2014Ram2500Power Wagon4WDGASALLALL
2014Ram2500R/T4WDGASALLALL
2014Ram2500SLT4WDGASALLALL
2014Ram2500ST4WDGASALLALL
2014Ram2500Tradesman4WDGASALLALL
2015Ram2500ALL4WDGASALLALL
2016Ram2500ALL4WDGASALLALL
2017Ram2500ALL4WDGASALLALL
2018Ram2500ALL4WDGASALLALL

Component List

1 BDS012529 14-18 Ram 2500 5" Rear Air Ride Box Kit
1 BDS122321 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit
1 BDS012615 2013-2018 Ram 2500/3500 4wd 6" Radius Arm Front Box Kit
1 BDS032401 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4" Diesel - 5.5" Gas
1 BDS122616 Ram T-Case Index - Gas - 6 Bolt
2 FOX98224752 Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
2 FOX98224753 Fox 2.0 Shock - 26.85 x 16.75 x 2- Special/EB1

Tires & Wheels

(Trimming may be required)
37 x 12.5 with 17 x 8 and 5.625 in. Backspace
37 x 12.5 with 18 x 9 and 4.5 in. Backspace
35 x 12.5 with 17 x 9 and 4.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
