00065 | VIAIR 65C Air Compressor 12 Volt | 90 PSI, Max Air Tank Size 1.0 Gallon
65C Air Compressor 12 Volt | 90 PSI, Max Air Tank Size 1.0 Gallon | Universal - Check Specification Before Ordering
00065
Pricing:
$100.73
Description

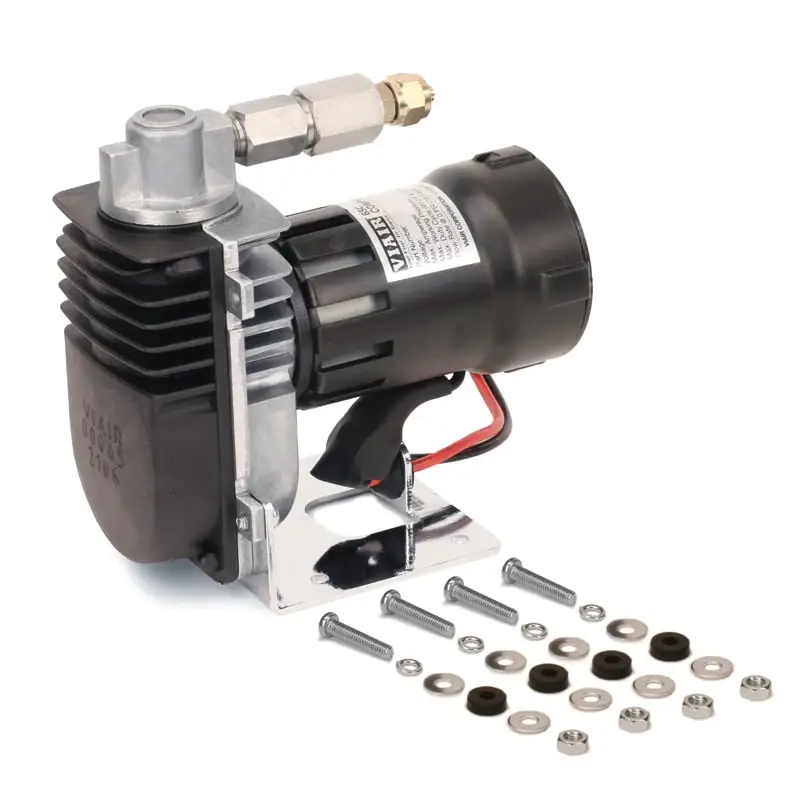

The 65C is a geared, light-duty air compressor for smaller pneumatic requirements. It's designed to fill no larger than a 1 gallon tank, has a max working pressure of 90 PSI and comes equipped with a check valve. Mounting hardware is included.
Please Note:
- Use thread sealant for proper installation.
- Thread tape is not recommended.
- Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
- Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
SPECIFICATIONS
- PN: 00065
- CFM: 1.15 @ 0 PSI
- 12-Volt
- Gear Driven Motor
- Duty Cycle: 15% @ 90 PSI
- Max. Working Pressure: 90 PSI
- Max. Air Tank Size: 1.0 Gallon
- Max. Amp Draw: 10-Amps
- Ingress Protection Rating: IP54
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
- Dimensions: 5″L x 2.9″W x 4.8″H
- Net Weight: 1.6 lbs.
FEATURES:
- Check Valve
- Compression Fitting for 1/4″ Airline (Pre-installed)
- Vibration Isolators
- Mounting Hardware
- Installation Instructions
FILL RATES
- 0.5 GALLON TANK FILL RATE
- 0 to 80 PSI 50 sec. (± 05 sec.)
- 45 to 80 PSI 23 sec. (± 03 sec.)
- 55 to 80 PSI 19 sec. (± 03 sec.)
- 1.0 GALLON TANK FILL RATE
- 0 to 80 PSI 1 min. 28 sec. (± 05 sec.)
- 45 to 80 PSI 36 sec. (± 03 sec.)
- 55 to 80 PSI 33 sec. (± 05 sec.)
Performance
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 1.15 | 6 | 0 | 33.0 | 6 |
10 | 0.59 | 7 | 1.0 | 17.0 | 7 |
20 | 0.55 | 8 | 2.0 | 15.0 | 8 |
30 | 0.52 | 8 | 3.0 | 13.0 | 9 |
40 | 0.48 | 9 | 4.0 | 12.0 | 9 |
50 | 0.45 | 9 | 5.0 | 10.0 | 9 |
60 | 0.41 | 9 | |||
70 | 0.38 | 9 | |||
80 | 0.33 | 10 |
Application List
Universal - Check Specification Before Ordering
Component List
Compressor
Vibration Isolators
Mounting Hardware
Installation Instructions
Vibration Isolators
Mounting Hardware
Installation Instructions
Details
- 00065
- 00065
- VIAIR
- New
Categories
Shipping Information
- Item Requires Shipping
- 1.6 lbs.
- W2.9000” x H4.8000” x L5.0000”
