10010 | VIAIR 100C Air Compressor 12 Volt With Leader Hose And Check Valve | 130 PSI, Max Air Tank Size 1.0 Gallon

The 100C is our most powerful light duty air compressor. It's designed to fill no larger than a 1 gallon tank, has a max run time of 9 minutes.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• PN: 10010, 10014, 10016, 10019
• CFM: 1.27
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 15% @ 100 PSI
• Max. Working Pressure: 130 PSI
• Max. Air Tank Size: 1.0 Gallon
• Max. 12V Amp Draw: 16-Amps
• Ingress Protection Rating: IP54
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 6.35″L x 3.3″W x 4.9″H
• Net Weight: 3.55 lbs.

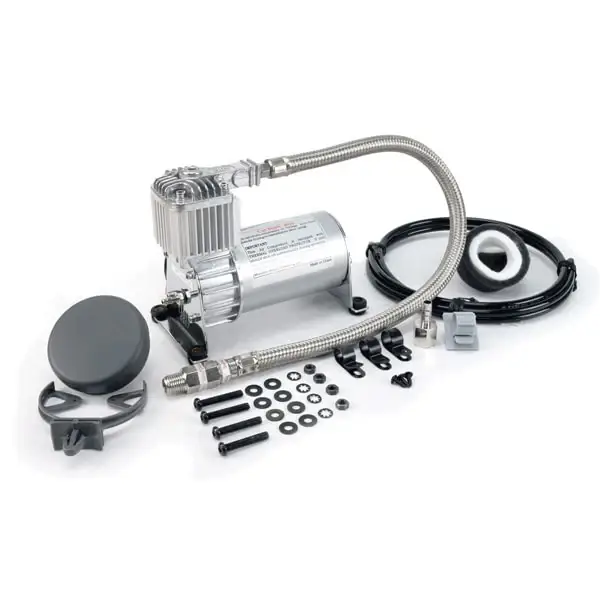

FEATURES:

• Thermal Overload Protector
• Check Valve
• Vibration Isolators
• Mounting Hardware
• Stainless Steel Braided Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

FILL RATES

• 0.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 50 sec. (± 05 sec.)
  • 85 to 105 PSI 10 sec. (± 03 sec.)
  • 0 to 120 PSI 1 min. 00 sec. (± 05 sec.)
  • 90 to 120 PSI 17 sec. (± 03 sec.)
• 1.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 1 min. 40 sec. (± 10 sec.)
  • 85 to 105 PSI 25 sec. (± 05 sec.)
  • 0 to 120 PSI 2 min. 00 sec. (± 10 sec.)
  • 90 to 120 PSI 35 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
