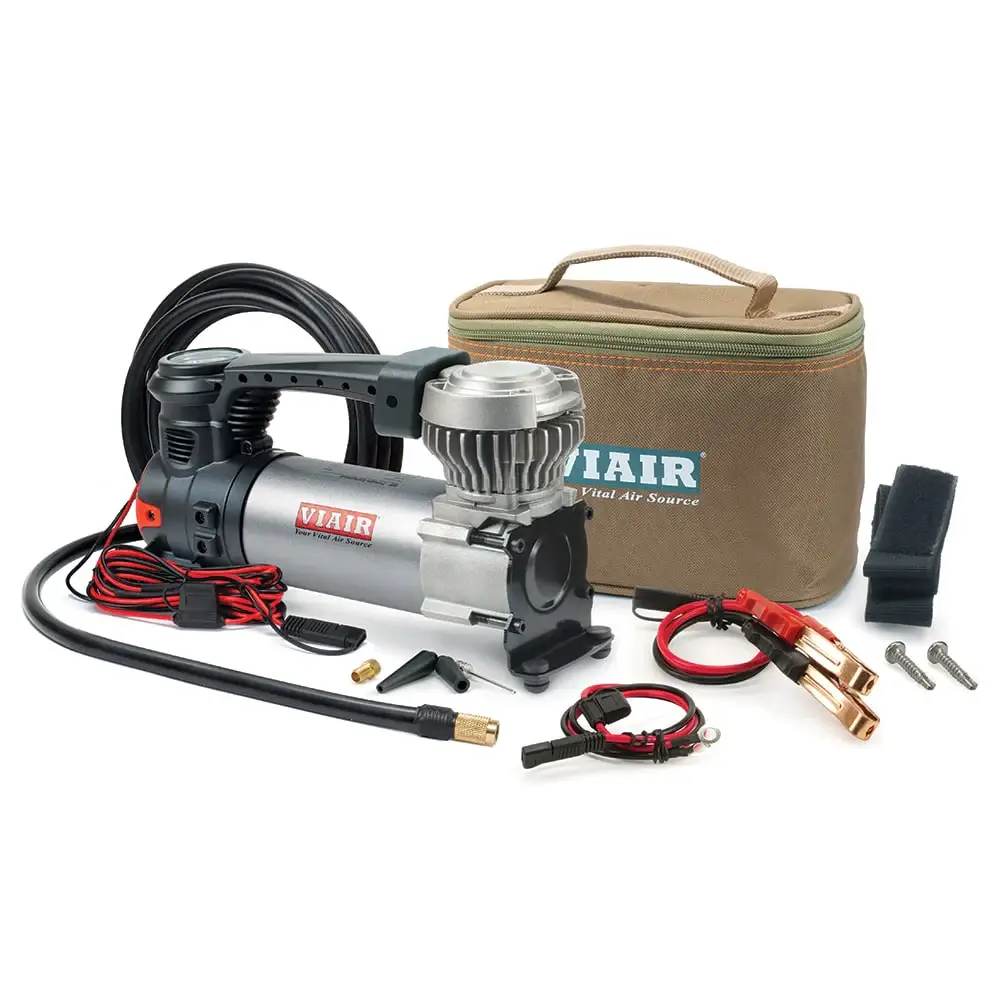

00082 | VIAIR 88P SXS Portable Compressor / Tire Inflator With Twist-on Chuck | 120 PSI, 12 Volt Power Battery Clamps

88P SXS Portable Compressor / Tire Inflator With Twist-on Chuck | 120 PSI, 12 Volt Power Battery Clamps | Universal - Check Specification Before Ordering

00082
Pricing: $174.93
Qty:
Free Ground Shipping | Exclusions Apply*

Description

88P SXS is tailored for UTVs and can handle tires up to 33". It's is our most popular medium-duty tire inflator, ideal for new and experienced off-roaders looking for a fast and dependable unit that will not break the bank. Features an SAE power cord and a Velcro strap to keep it secure when the trails get rowdy.

SPECIFICATIONS

  • PN: 00082
  • CFM: 1.97 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 25 min. @ 30 PSI
  • Max. Working Pressure: 120 PSI
  • Max. Amp Draw: 20-Amps
  • Ingress Protection Rating: IP53
  • Max. Ambient Temp: +158°F
  • Min. Ambient Temp: -4°F
  • Dimensions: 9.8″L x 3.2″W x 5.6″H
  • Net Weight: 5.30 lbs.
  • Power Cord Length: 10 ft.
  • Air Hose Length: 16 ft.
  • Power Cord: 10 ft. / Air Hose: 16 ft.

FEATURES:

  • 120 PSI Pressure Gauge
  • LED Work Light / Power Indicator
  • Permanent 2-Pin SAE Connector for battery with 25-amp Inline Fuse Holder
  • Dual Battery Clamps w/2-Pin SAE Connector
  • Solid Brass Twist-on Tire Chuck
  • Heavy Duty Carry Bag with Straps and Hardware for Mounting
  • 3 pc. Inflation Tips Kit*
  • Presta Valve Adaptor

* Mounted above Rear Compressor Feet

PLEASE NOTE:

  • Always check your vehicle’s power port rating for maximum amperage before ordering.
  • The 88P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor.
  • The 88P does not work with the VIAIR Winterization Kit (P/N 90145).

FILL RATES

  • 31″ X 10.5″ FILL RATE
    • 0 to 30 PSI 3 min. 30 sec. (± 10 sec.)
    • 15 to 30 PSI 2 min. 10 sec. (± 05 sec.)
  • 33″ X 12.5″ FILL RATE
    • 0 to 30 PSI 5 min. 15 sec. (± 15 sec.)
    • 15 to 40 PSI 3 min. 00 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LMP A
0 1.97 14 0 56.0 14
10 1.82 15 1.0 49.0 15
20 1.62 16 2.0 41.0 17
30 1.45 17 3.0 36.0 17
40 1.32 17 4.0 31.0 18
50 1.18 18 5.0 26.0 17
60 1.05 18 6.0 21.0 16
70 0.94 18 7.0 17.0 15
80 0.83 17 8.0 14.0 14
90 0.70 16
100 0.63 16
110 0.54 15
120 0.45 14

Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 4.8 lbs.
  • W3.2000” x H5.6000” x L9.8000”
  • Free Ground Shipping | Exclusions Apply*
