20002 | VIAIR Continuous Duty Onboard Air Compressor System 12 Volt | 200 PSI, Includes 2.5 Gallon Air Tank

VIAIR’s Continuous Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 485C CE compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
• Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.

SPECIFICATIONS

• PN: 20002
• CFM: 2.24 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. Amp Draw: 23-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 10.63″L x 4.1″W x 6.44″H
• Net Weight: 11.10 lbs.

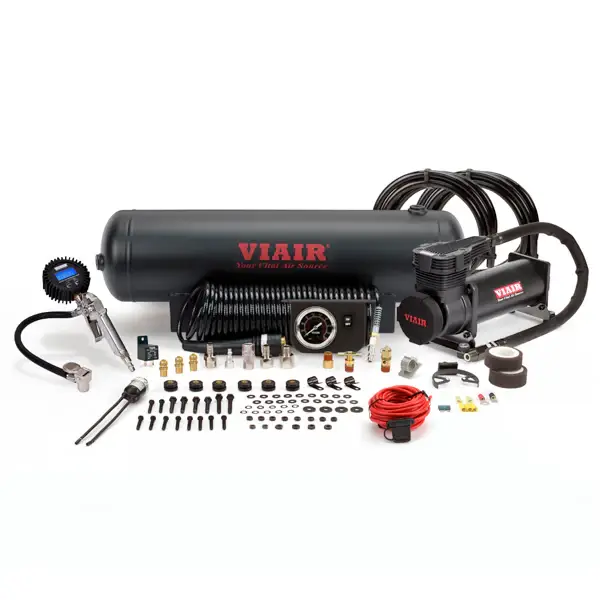

FEATURES:

• 2.5 Gallon VIAIR Air Tank (200 PSI)
• 485C Stealth Black VIAIR Compressor w/ Thermal Overload Protector
• Digital Tire Inflation Gun with 180 PSI Gauge
• 30ft. Inside Braided Black Coil Hose with Quick Connects
• 1/4” NPT Quick Connect Stud (F)
• 1/4” NPT Quick Connect Coupler (F)
• Dash Panel Gauge with ON/OFF Switch
• Sealed Pressure Switch
  (165 PSI on, 200 PSI off)
• Reducer 1/8” NPT (F) to 1/4” NPT (M)
• Reducer 3/8” NPT (F) to 1/4” NPT (M)
• 1/4” NPT 250 PSI Safety Valve
• 1/4” NPT Drain Cock
• (3) 1/4” NPT Compression Fittings
• 4” Strip of Grommet Material
• 20ft. 12-Gauge Wire with Inline Fuse Holder
• Electrical Connections
• Accessory Airline

FILL RATES

TIRE FILL RATE

• 35” X 12.5 FILL RATE
  • 0 to 30 PSI 4 min. 17 sec. (± 10 sec.)
  • 15 to 30 PSI 1 min. 27 sec. (± 05 sec.)
• 37” X 12.5″ FILL RATE
  • 0 to 30 PSI 5 min. 13 sec. (± 15 sec.)
• 15 to 30 PSI 1 min. 28 sec. (± 05 sec.)

TANK FILL RATE

• 2.5 GALLON TANK FILL RATE
  • 0 to 200 PSI 4 min. 50 sec. (± 10 sec.)
  • 165 to 200 PSI 1 min. 15 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
