50013 | VIAIR Road Warrior Onboard Air Compressor System 12 Volt | 200 PSI, Includes 2.5 Gallon Air Tank

Road Warrior Constant Duty OBA is powered by a pair of 444C compressors, operates from a 2.5 gallon tank at 200PSI and is capable of inflating tires up to 40”.

VIAIR’s Toy hauler OBA’s are powerful systems capable of fast tire inflation and many other pneumatic tasks.

Featuring dual compressors, extension hoses and different size tanks to meet spacing needs, these kits are a must for anyone hauling long trailers in need of serviceable air.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 10.0 Gallon
• Combined Max. Amp Draw: 46-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 10.87″L x 4.2″W x 7.06″H (Each Unit)

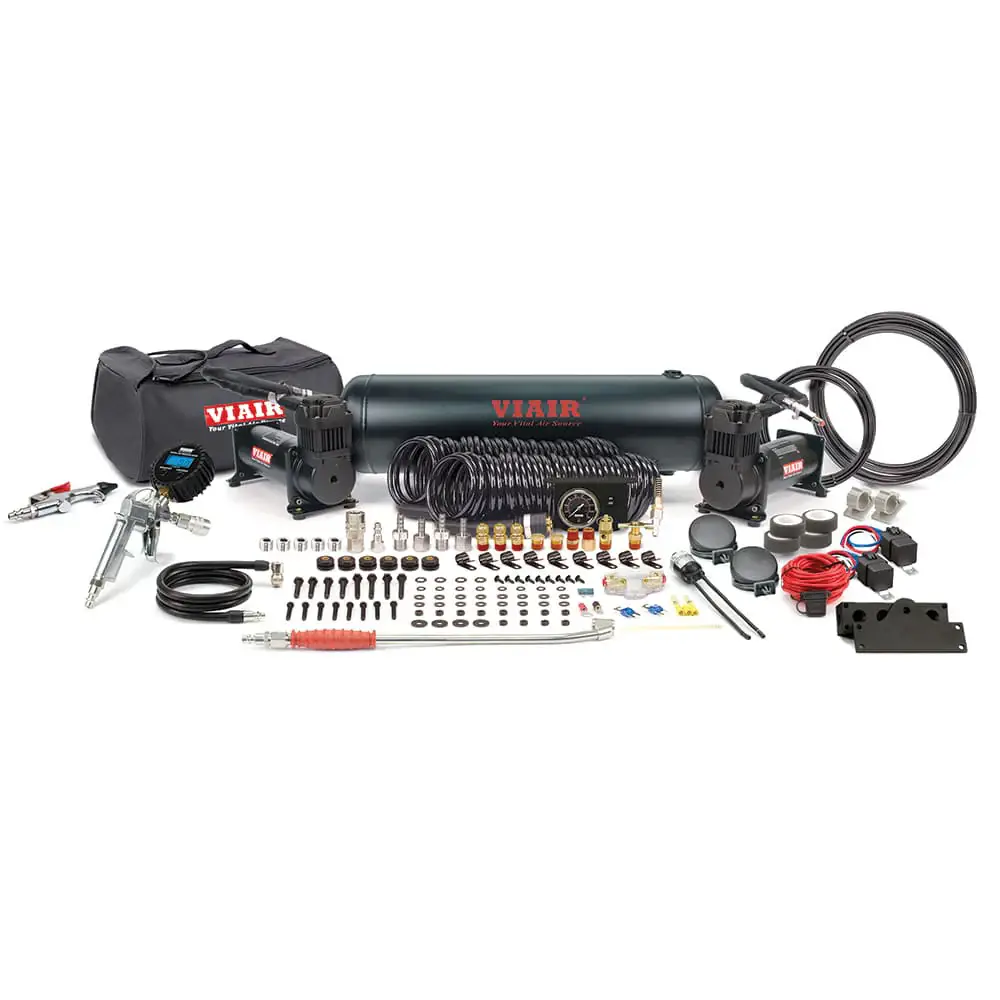

FEATURES:

• (2) 444C Stealth Black Air Compressors
  w/Thermal Overload Protectors
• Intercooler Head (Patents Pending)
• 2.5 Gallon Matte Black VIAIR Air Tank
• Illuminated Dash Panel Gauge Kit, Black Face
• Sealed Pressure Switch (165 PSI on, 200 PSI off)
• (2) 40-Amp Sealed 4-Prong Relays
• Tire Inflation Gun w/ Digital 180 PSI Gauge
• (2) 30ft. Coil Hose with Quick Connect and Stud
• 45° Extended Reach Dually Chuck
• 90° 40in. Twist-On Air Hose Chuck
• Rubber Tipped Blow Gun
• Air Source Relocation Kit
• (2) Air Filter Housing w/ Replacement Air Filter Elements
• VIAIR Storage Bag

FILL RATES

TIRE FILL RATE

• 37×12.5 FILL RATE
  • 0 to 30 PSI 3 min. 50 sec. (± 10 sec.)
  • 15 to 30 PSI 1 min. 55 sec. (± 05 sec.)
• 40×15.5 FILL RATE
  • 0 to 30 PSI 4 min. 40 sec. (± 10 sec.)
  • 15 to 30 PSI 2 min. 00 sec. (± 05 sec.)
• 235/80R16 FILL RATE
  • 0 to 80 PSI 4 min. 15 sec. (± 15 sec.)
  • 30 to 40 PSI 10 sec. (± 03 sec.)
  • 40 to 50 PSI 18 sec. (± 03 sec.)
  • 50 to 60 PSI 23 sec. (± 03 sec.)
  • 60 to 80 PSI 1 min. 10 sec. (± 05 sec.)

TANK FILL RATE

• 2.0 GALLON TANK FILL RATE
  • 0 to 200 PSI 2 min. 30 sec. (± 05 sec.)
  • 165 to 200 PSI 46 sec. (± 03 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
